Camber Adjustment

Camber Adjustment
1. Loosen the cam nut on the lower arm.

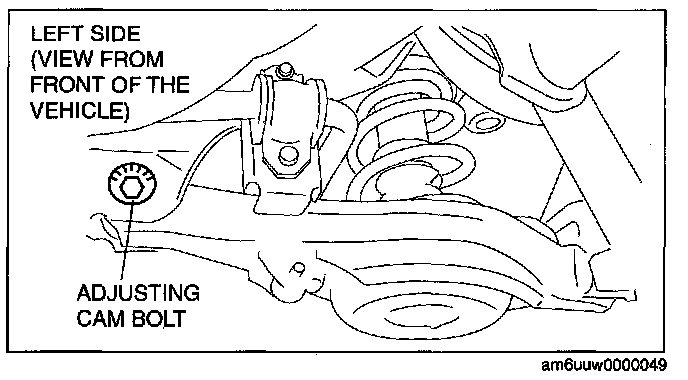

2. Turn the adjusting cam bolt to provide the correct camber angles as indicated.





3. Tighten the cam nut.
Tightening torque 86.2-116.6 N-m (8.79-11.88 kgf-m, 63.58-85.99 ft-lbf)
