Total Toe-In Adjustment

Total Toe-in Adjustment

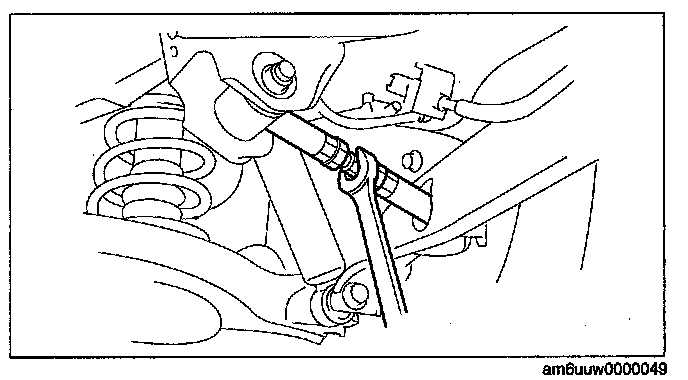

1. Loosen the locknut of the lateral link.

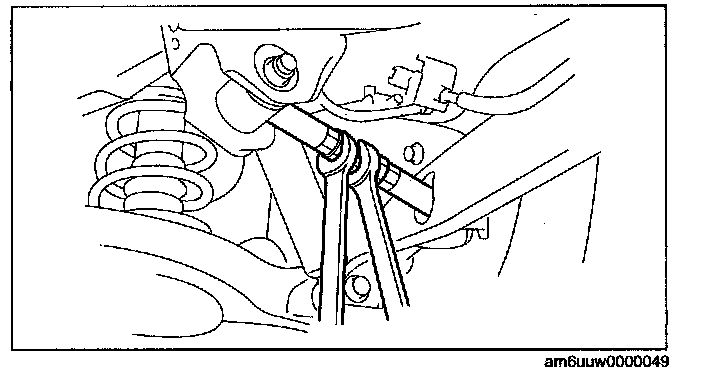

2. Adjust the toe-in turning the adjusting link.
Specification Total Toe-in: 2±4 mm (0.08±0.16 in)

Note
^ Toe change amount: 0°43' / one rotation

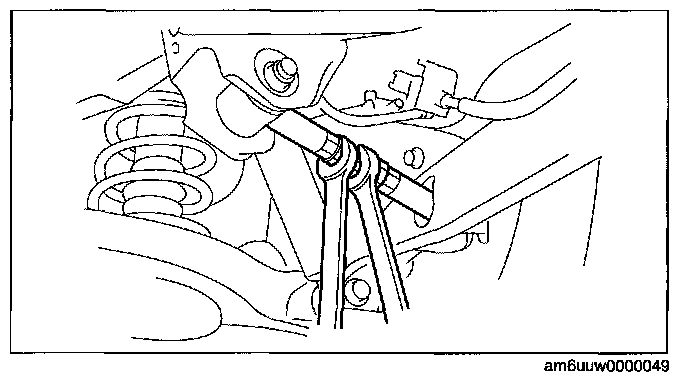

3. Tighten the locknut.
Tightening torque 68.0-98.1 N-m (7.0-10.0 kgf-m, 50.2-72.3 ft-lbf)
