PID/Data Monitor Table

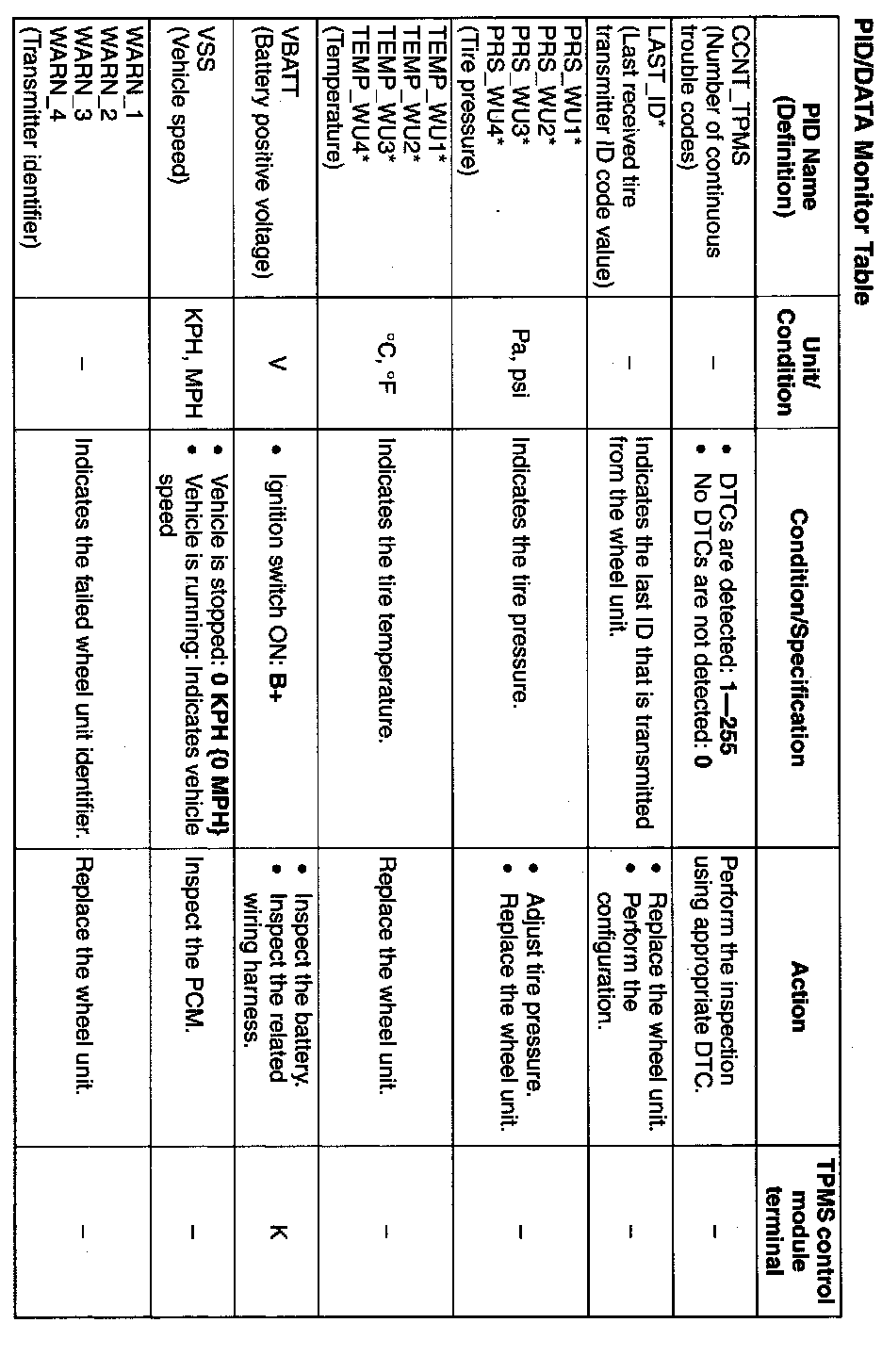

PID/DATA Monitor Table

PID/DATA Monitor Table:





: Data transmission from the wheel unit occurs when the vehicle speed is 25 km/h (15.5 mph) or more. Due to this, the current air pressure and temperature data can only be displayed after the vehicle is driven at 25 km/h (15.5 mph) or more. Also, the LAST_ID, and tire pressure and internal tire air temperature data are erased when the TPMS control unit connector and the battery terminal are disconnected. If the TPMS control unit is replaced or the battery terminals are disconnected, drive the vehicle at 25 km/h (15.5 mph) or more and display the tire pressure PID after the data transmission.
