Accessory Socket Inspection

ACCESSORY SOCKET INSPECTION

1. Remove the accessory socket.

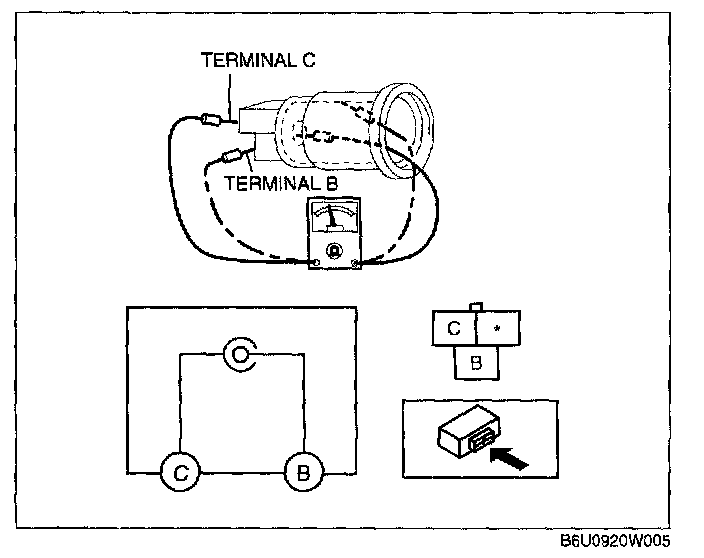

2. Inspect for continuity between the accessory socket terminals B and C using an ohmmeter as shown in the above figure.
- If not as specified, replace the accessory socket.
