Computers and Control Systems: Service and Repair

PCM REMOVAL/INSTALLATION[L3]

NOTE: For PCM replacement, setup the M-MDS and perform the PCM configuration.
1. Disconnect the negative battery cable.

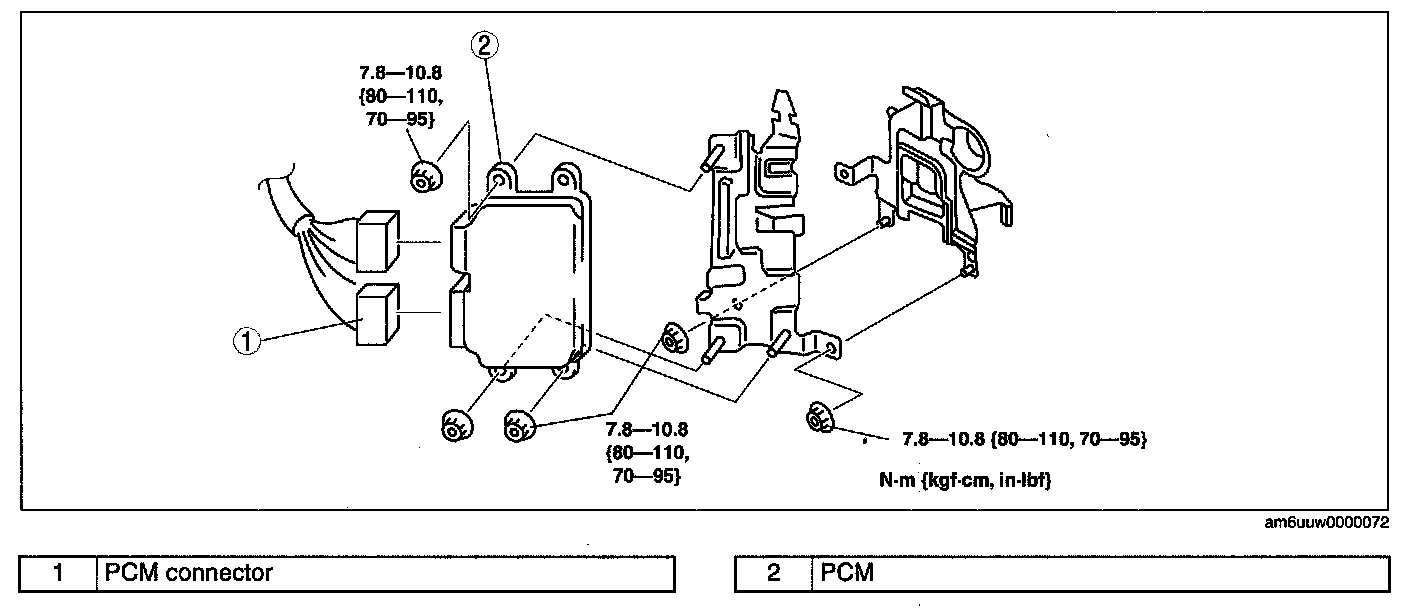

2. Remove in the order indicated in the table.




3. Install in the reverse order of removal.
