PID/Data Monitor Table

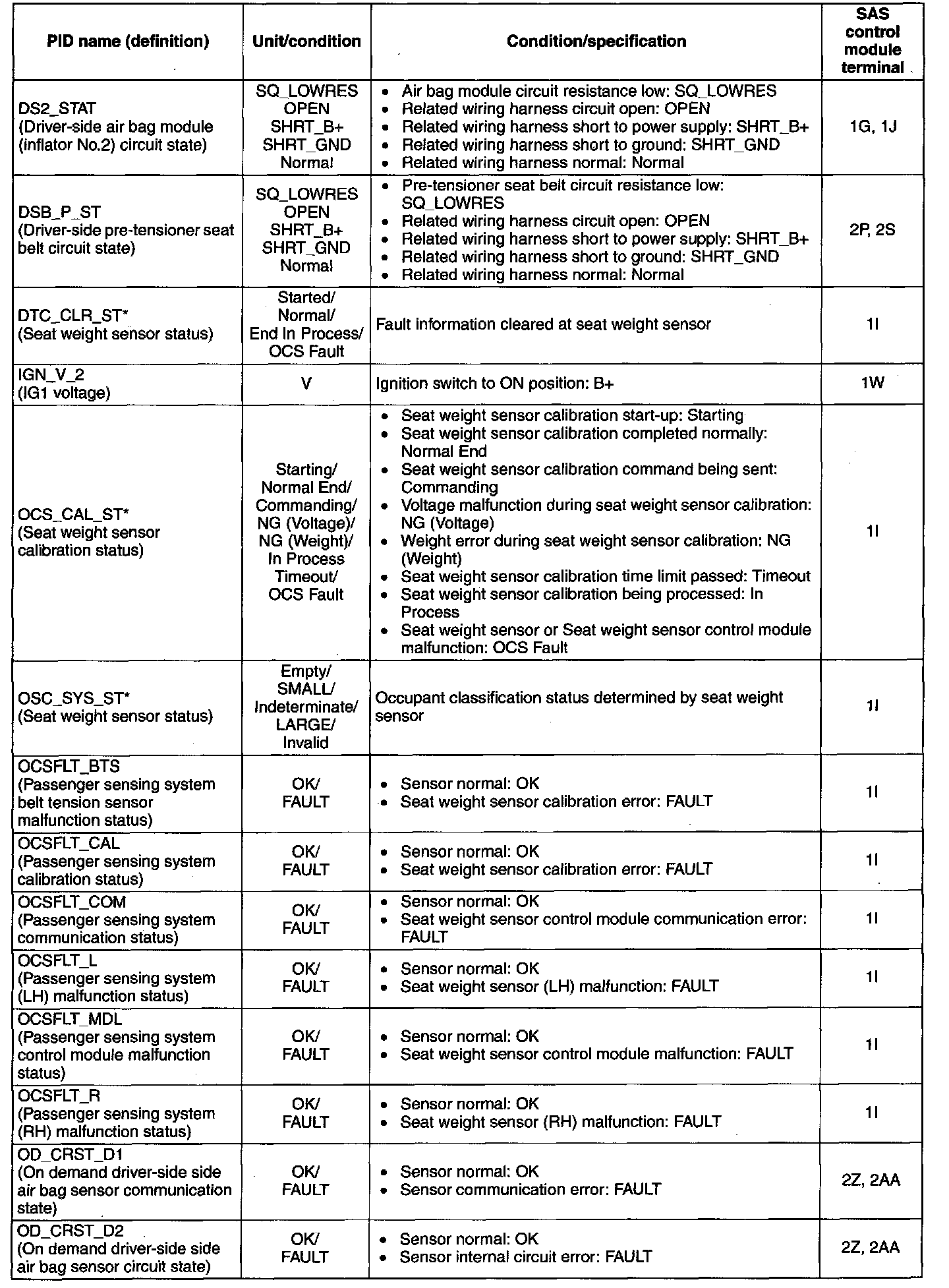

PID/DATA Monitor Table ( Part 1):

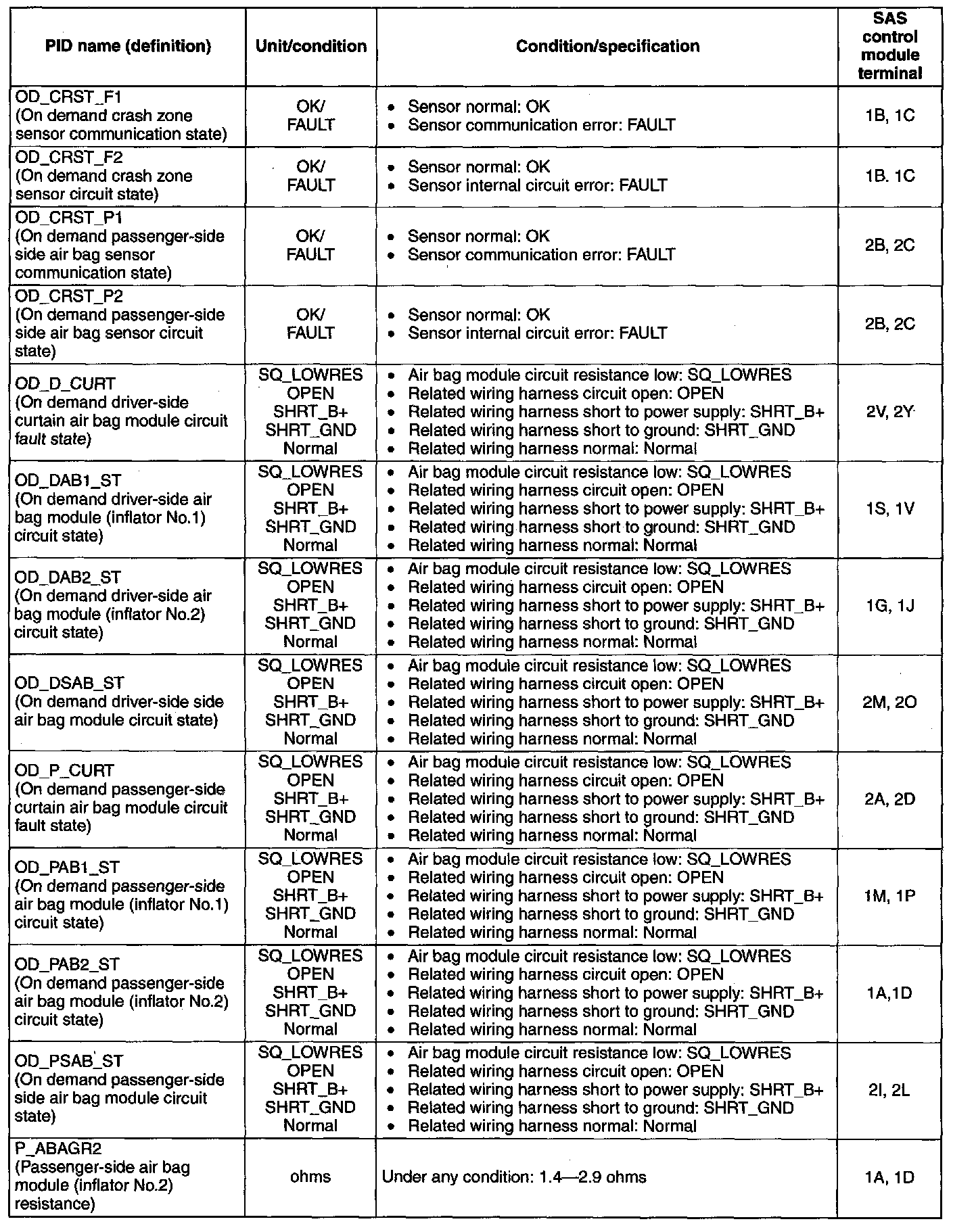

PID/DATA Monitor Table ( Part 2):

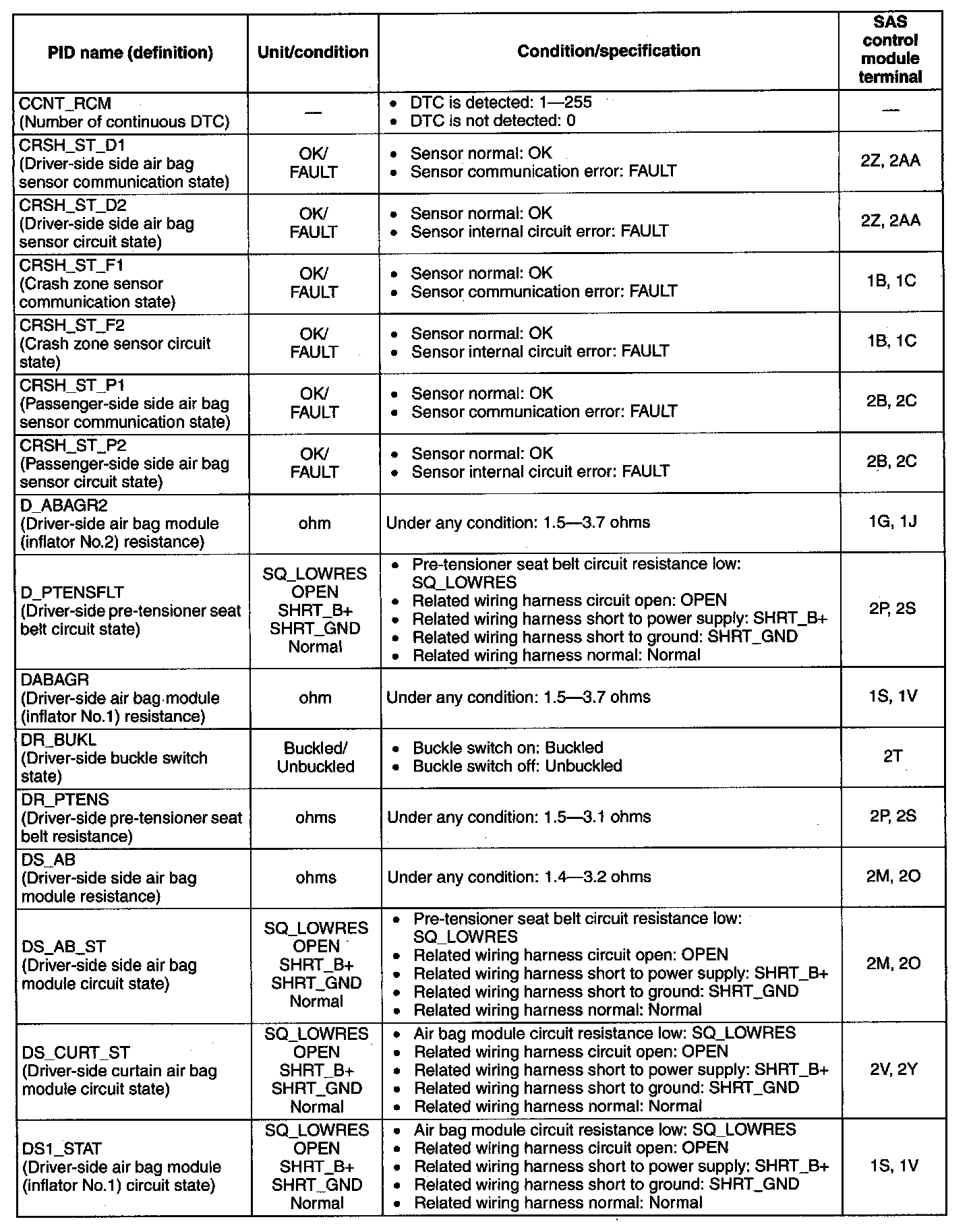

PID/DATA Monitor Table ( Part 3):

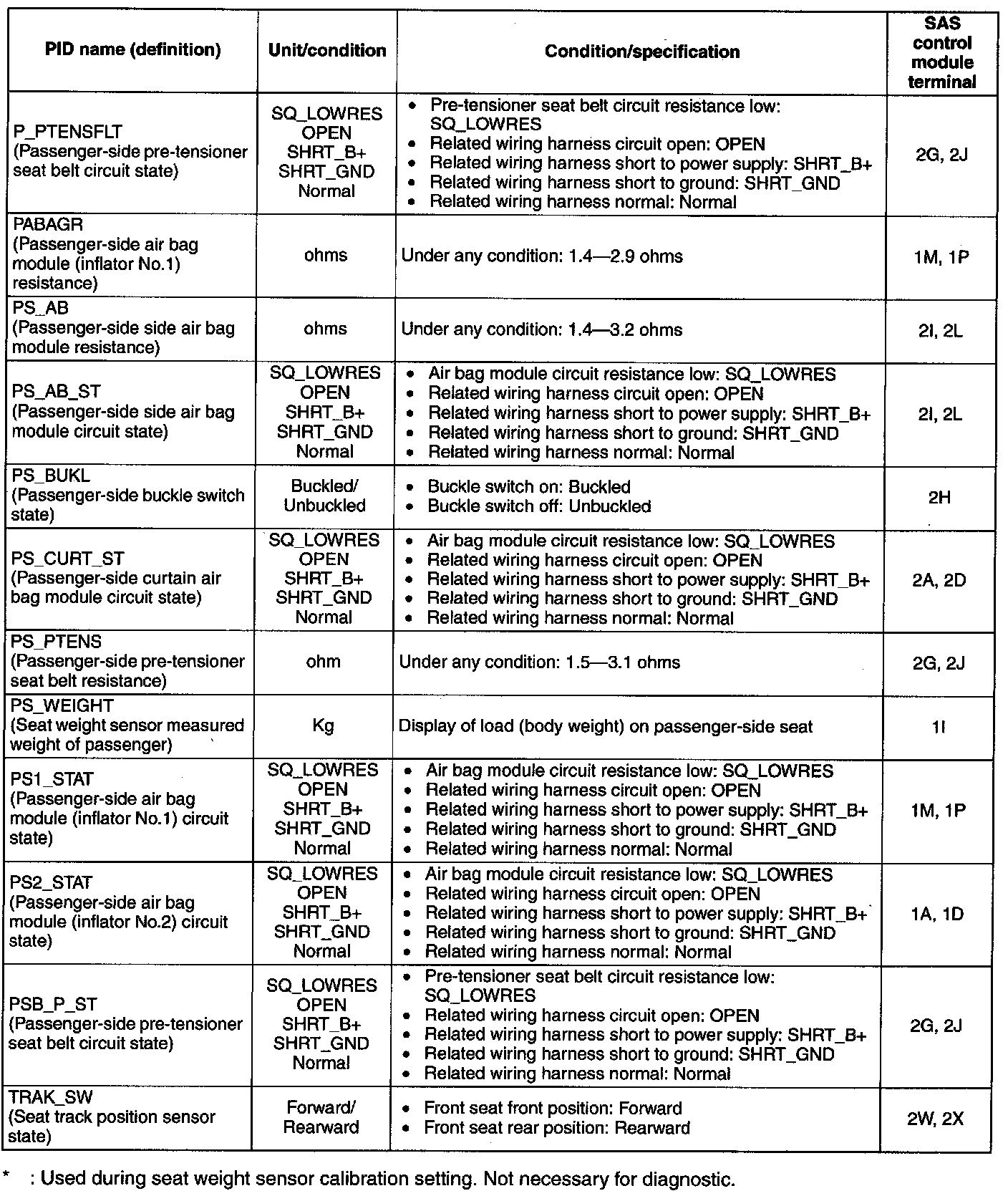

PID/DATA Monitor Table ( Part 4):
