Front Axle

AXLE ASSEMBLY FRONT REMOVAL / INSTALLATION

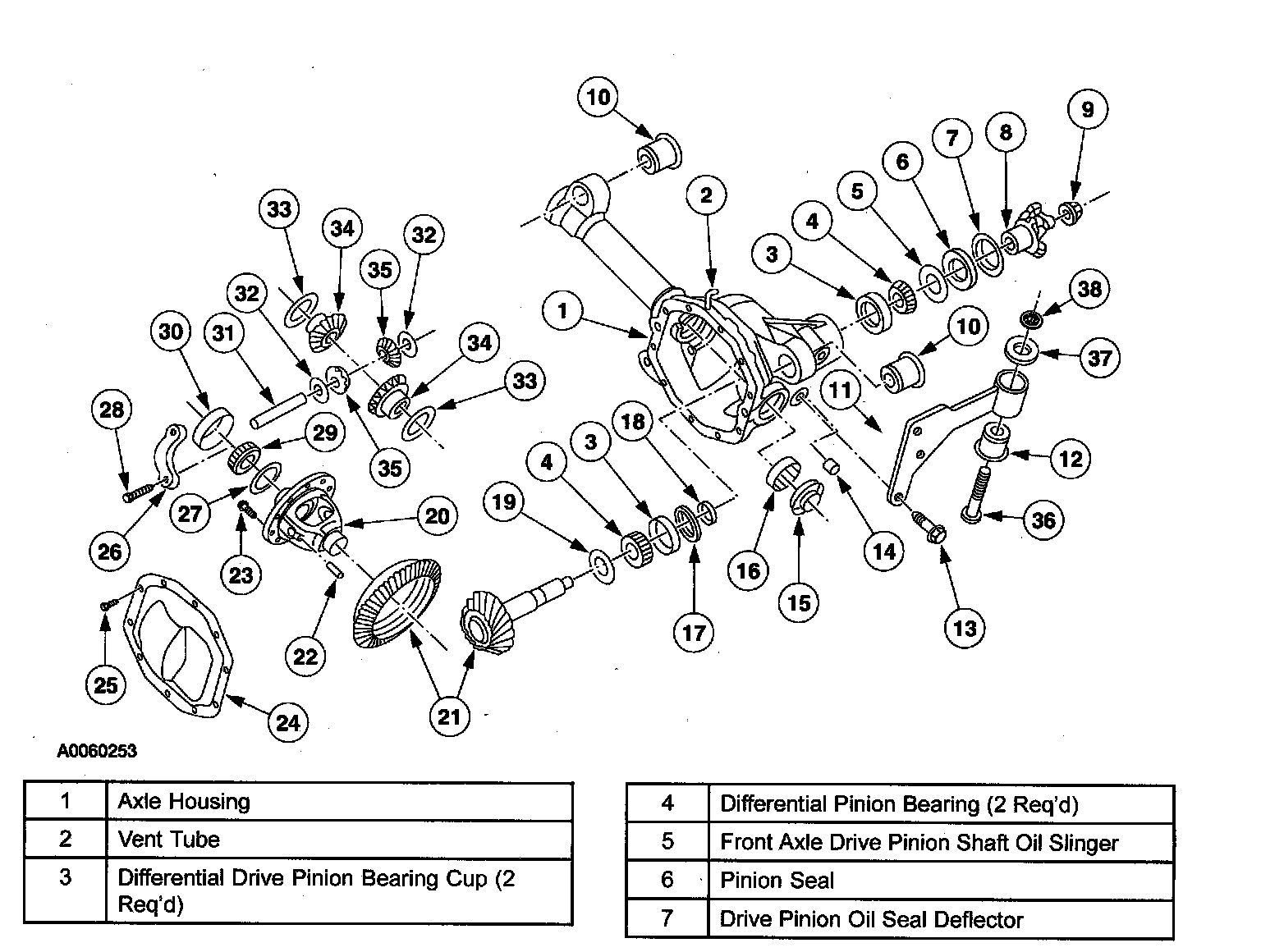

Axle Assembly Front Removal / Installation (Part 1):

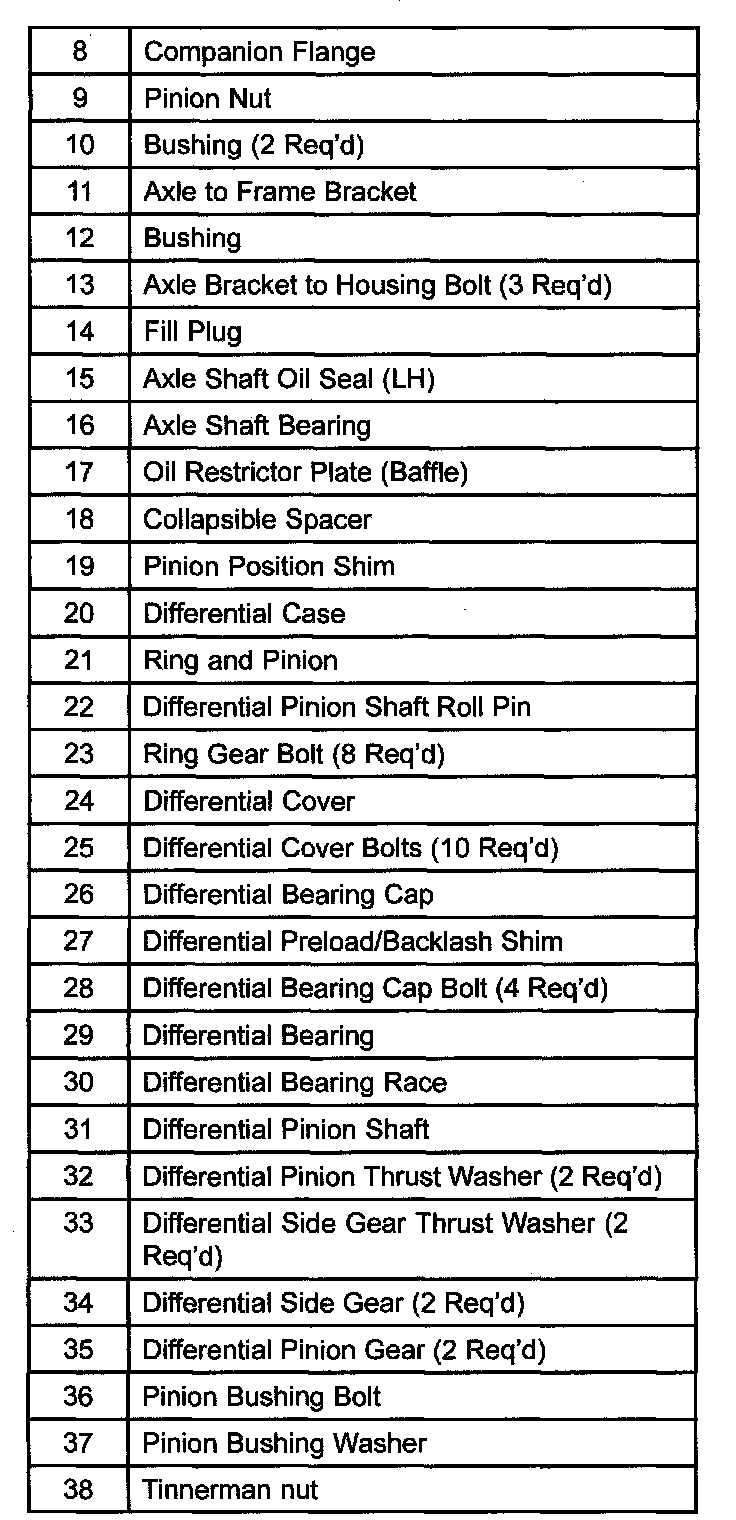

Axle Assembly Front Removal / Installation (Part 2):
