Drive/Propeller Shaft

PROPELLER SHAFT STRUCTURAL VIEW

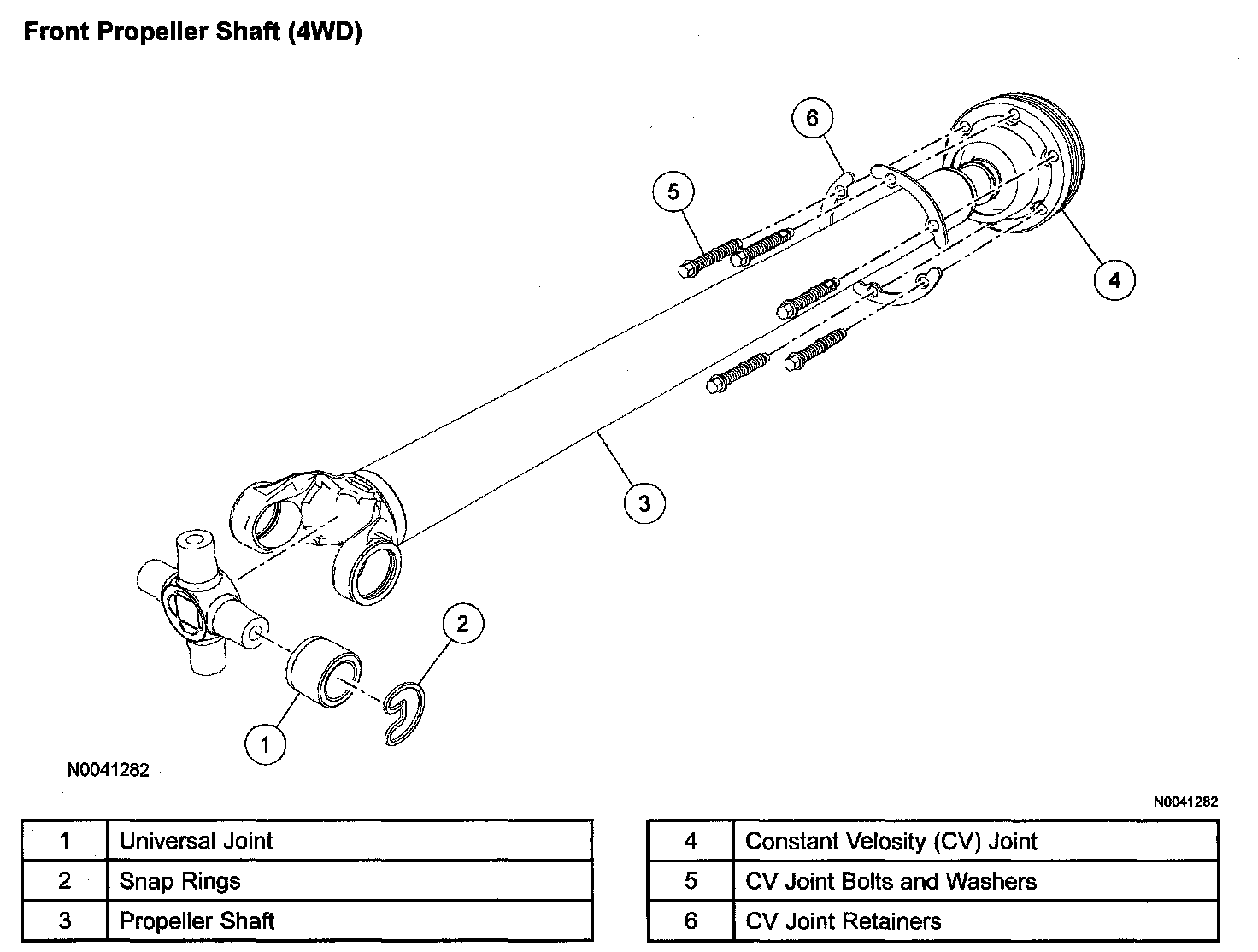

Front Propeller Shaft (4WD)

Front Propeller Shaft (4WD):

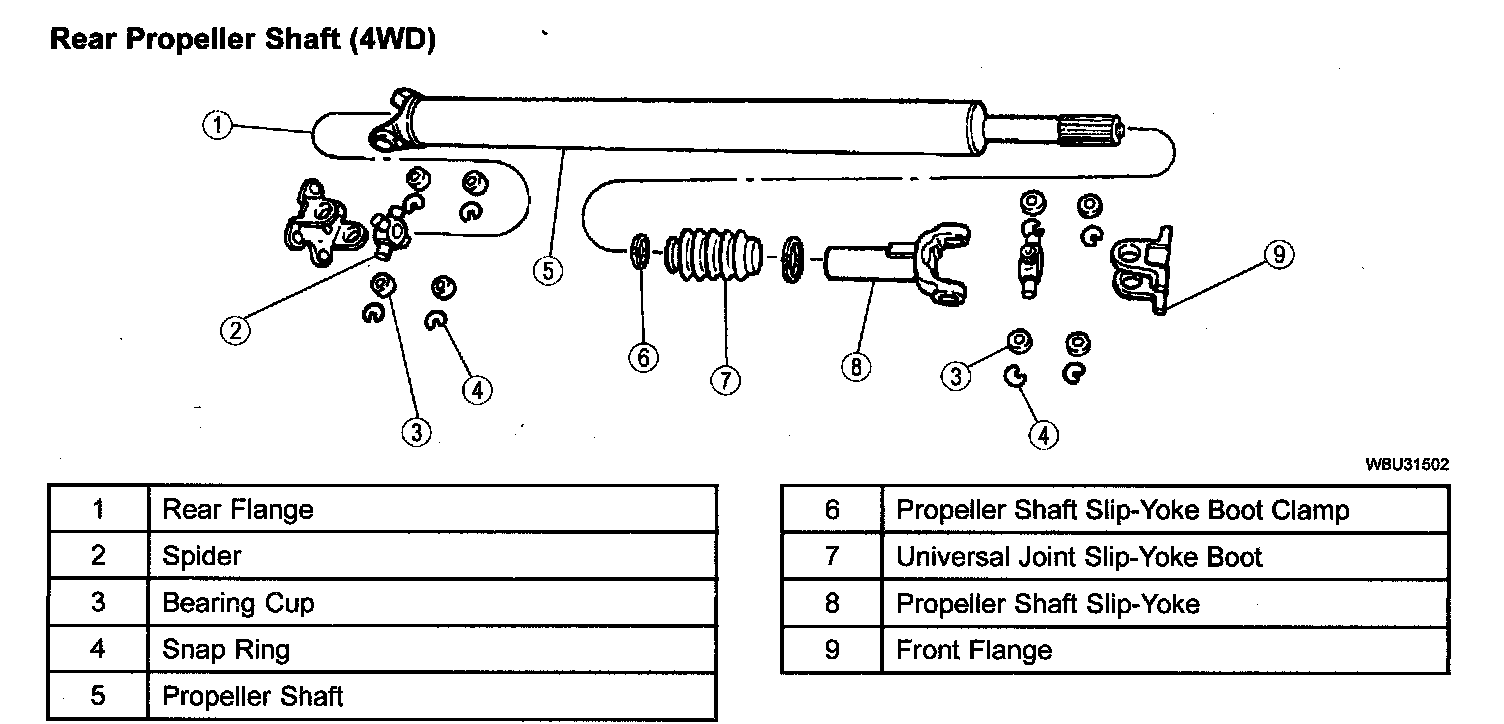

Rear Propeller Shaft (4WD)

Rear Propeller Shaft (4WD):

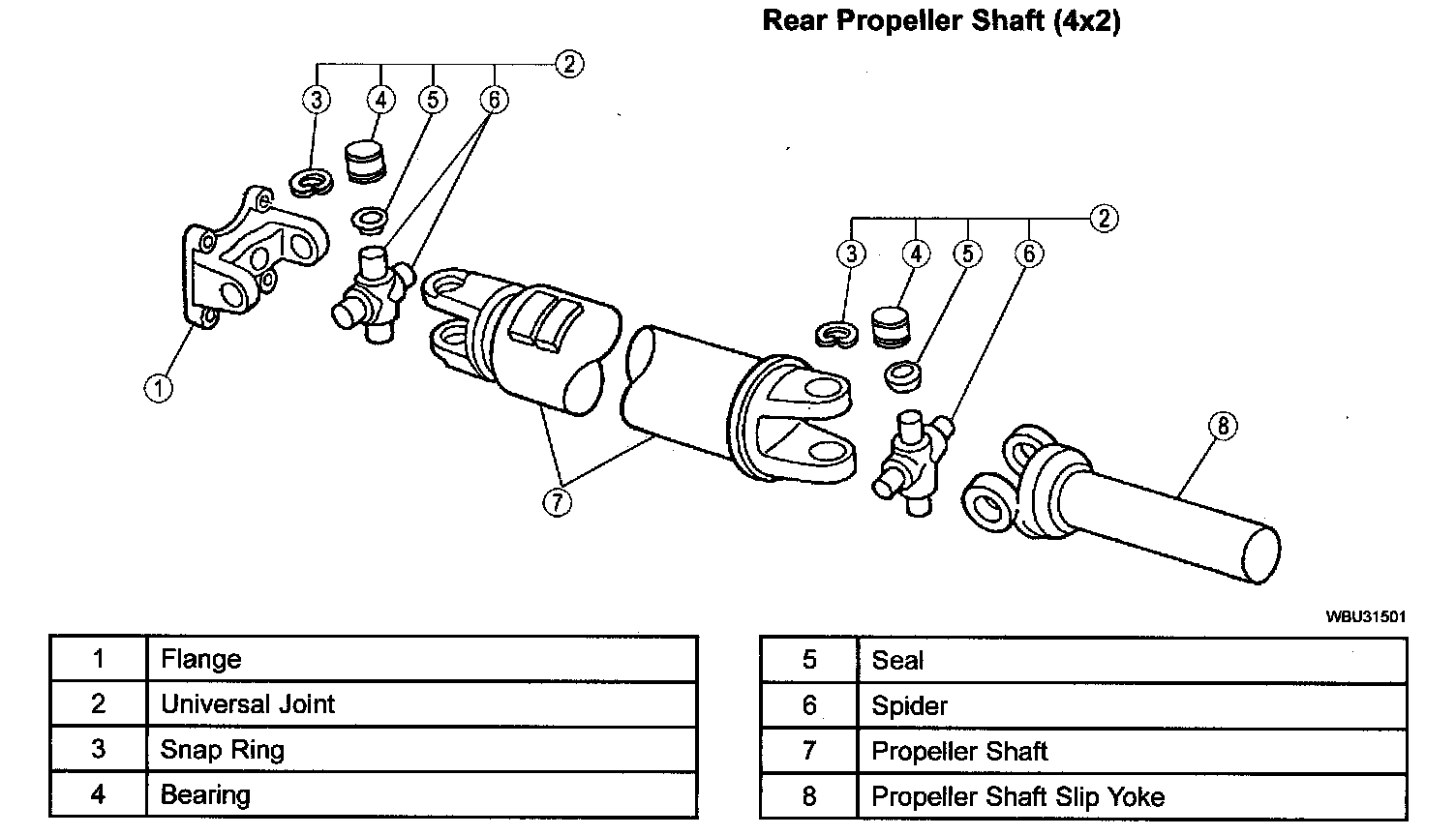

Rear Propeller Shaft (4x2)

Rear Propeller Shaft (4x2):
