HEATER CONTROL UNIT REMOVAL / INSTALLATION

Heater Control Unit Removal/Installation:

1. Remove the audio unit. See AUDIO UNIT.

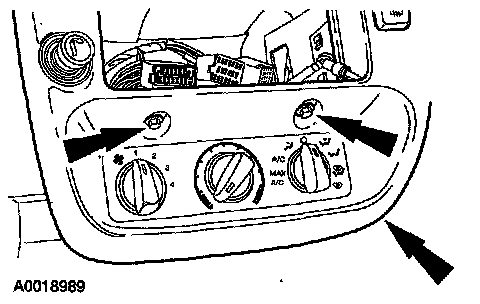

2. Remove the screws. Disengage the spring clips. Detach the instrument panel finish panel.






3. Disconnect the electrical connectors.






NOTE: The number and location of the electrical connectors will vary dependent on vehicle equipment.

5. Remove the screws and the climate control assembly.






6. Disconnect the climate control assembly.
- Disconnect the electrical connectors.
- Disconnect the vacuum harness connector.

NOTE: If installing a new climate control assembly, the function selector switch and the blower motor switch must be transferred from the old unit.

7. To install, reverse the removal procedure.
