Pinpoint Test 3: A/C Does Not Operate/Does Not Operate Properly

CLIMATE CONTROL PINPOINT TEST 3: A/C DOES NOT OPERATE/DOES NOT OPERATE PROPERLY

NOTE:
- Before carrying out the following test, diagnose any PCM DTCs.
- Before carrying out the following test, check that the A/C system pressure is above 290 kPa (42 psi). If the pressure is below 290 kPa (42 psi), See A/C EVAPORATOR / CONDENSER CORE - ON-VEHICLE LEAK TEST. A/C Evaporator / Condenser Core - on-Vehicle Leak Test
- The ambient temperature must be over 6 °C (43 °F).

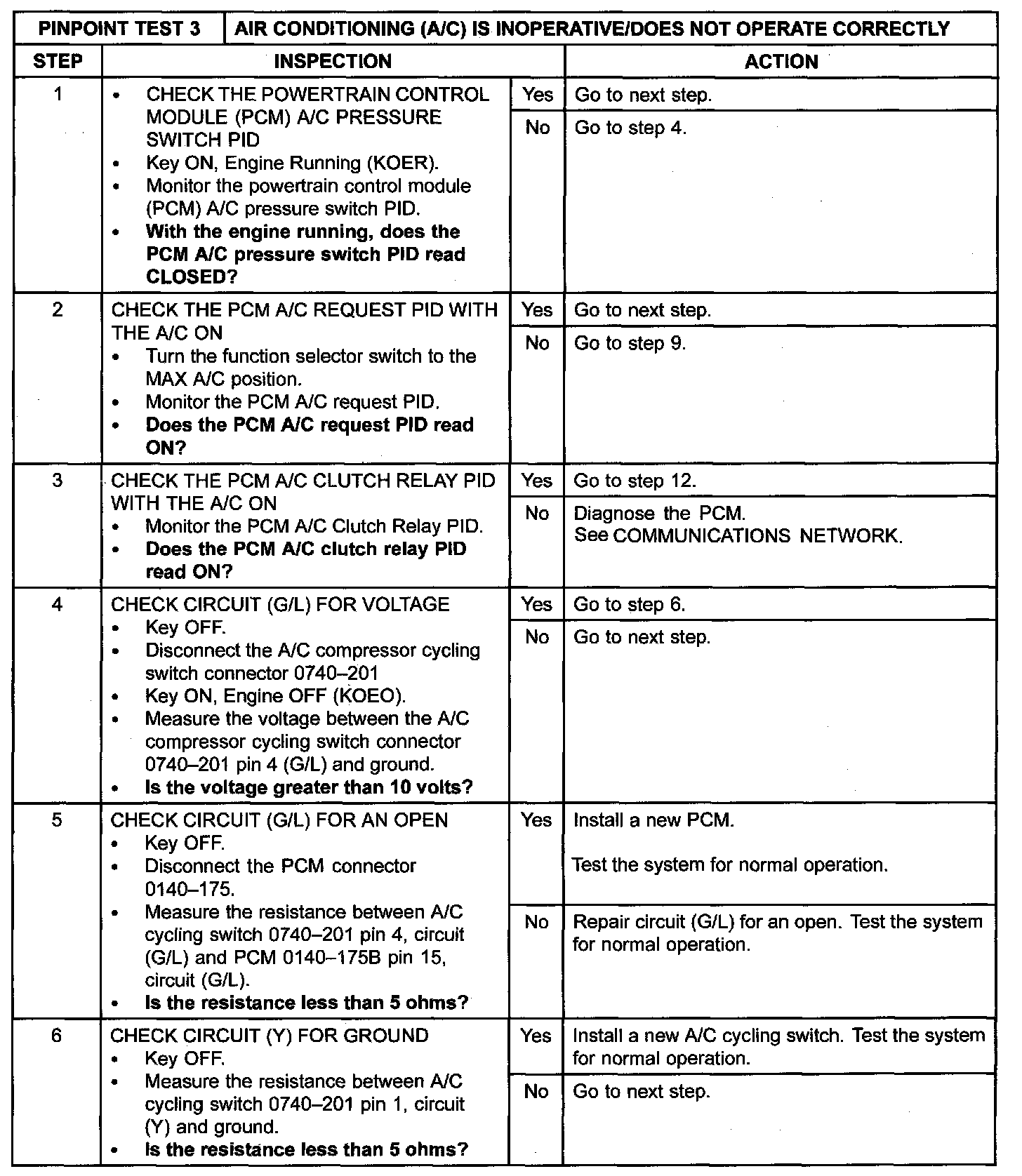

Step 1-Step 6:

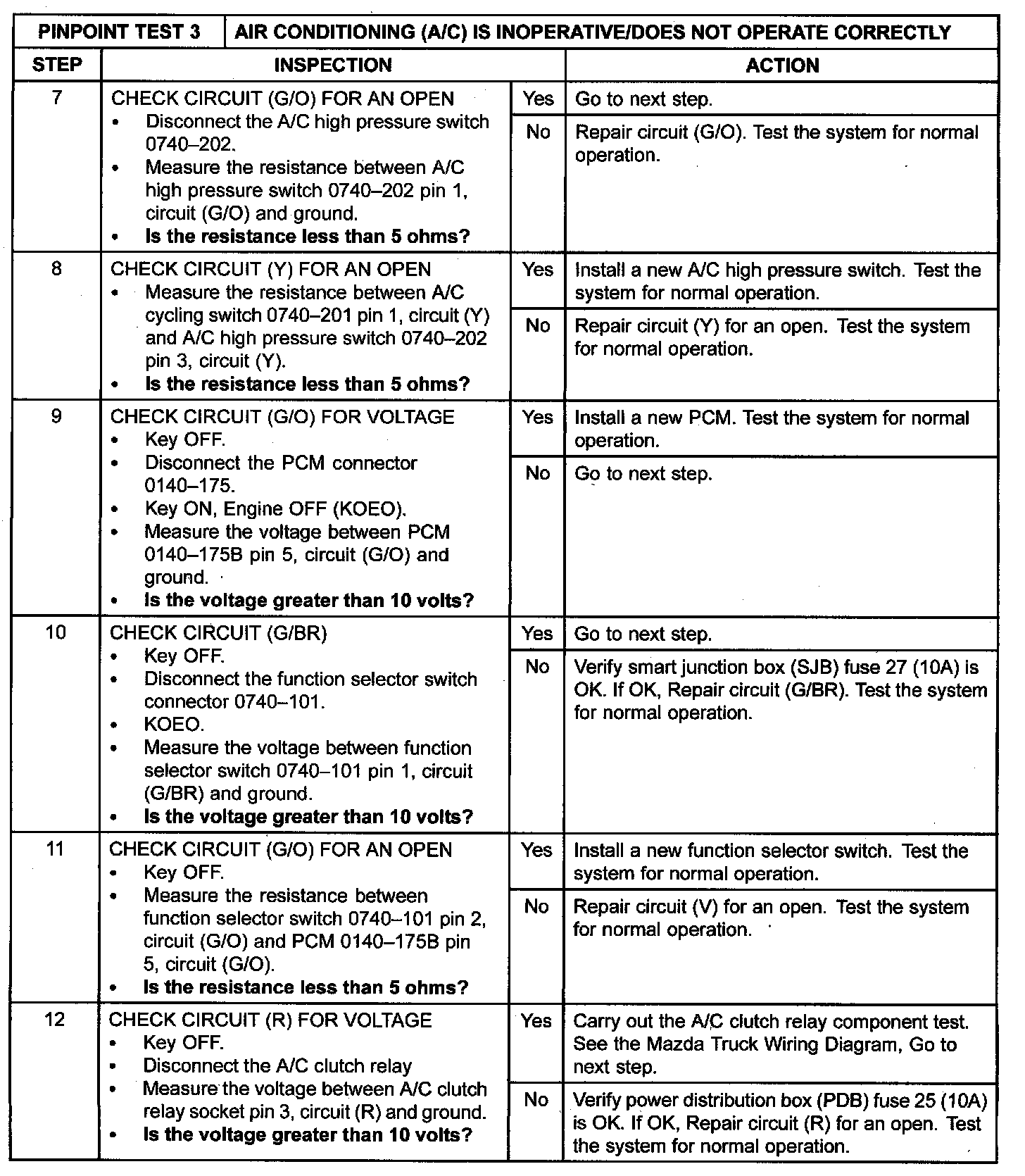

Step 7-Step 12:

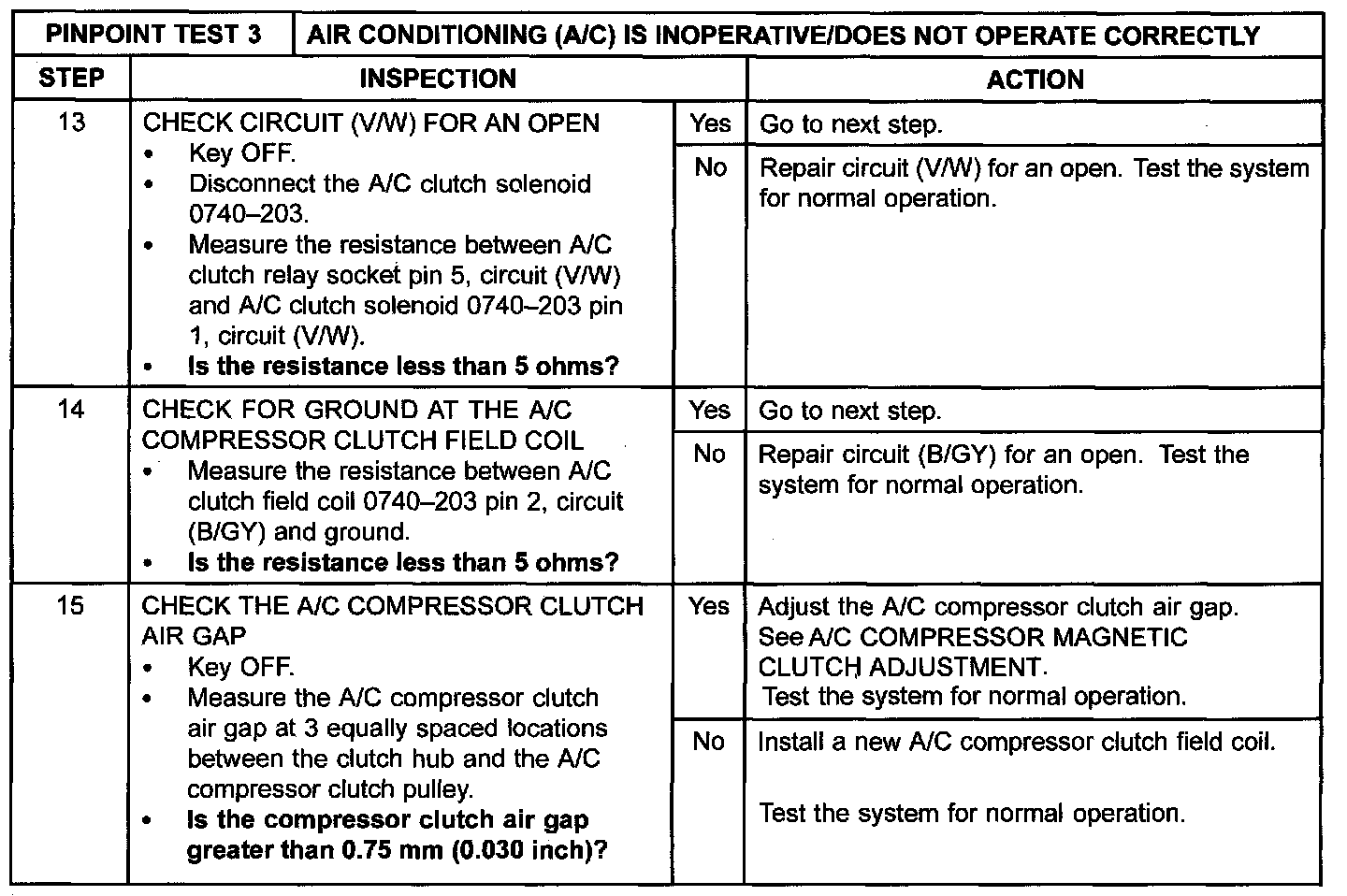

Step 13-Step 15:
