Ground Distribution

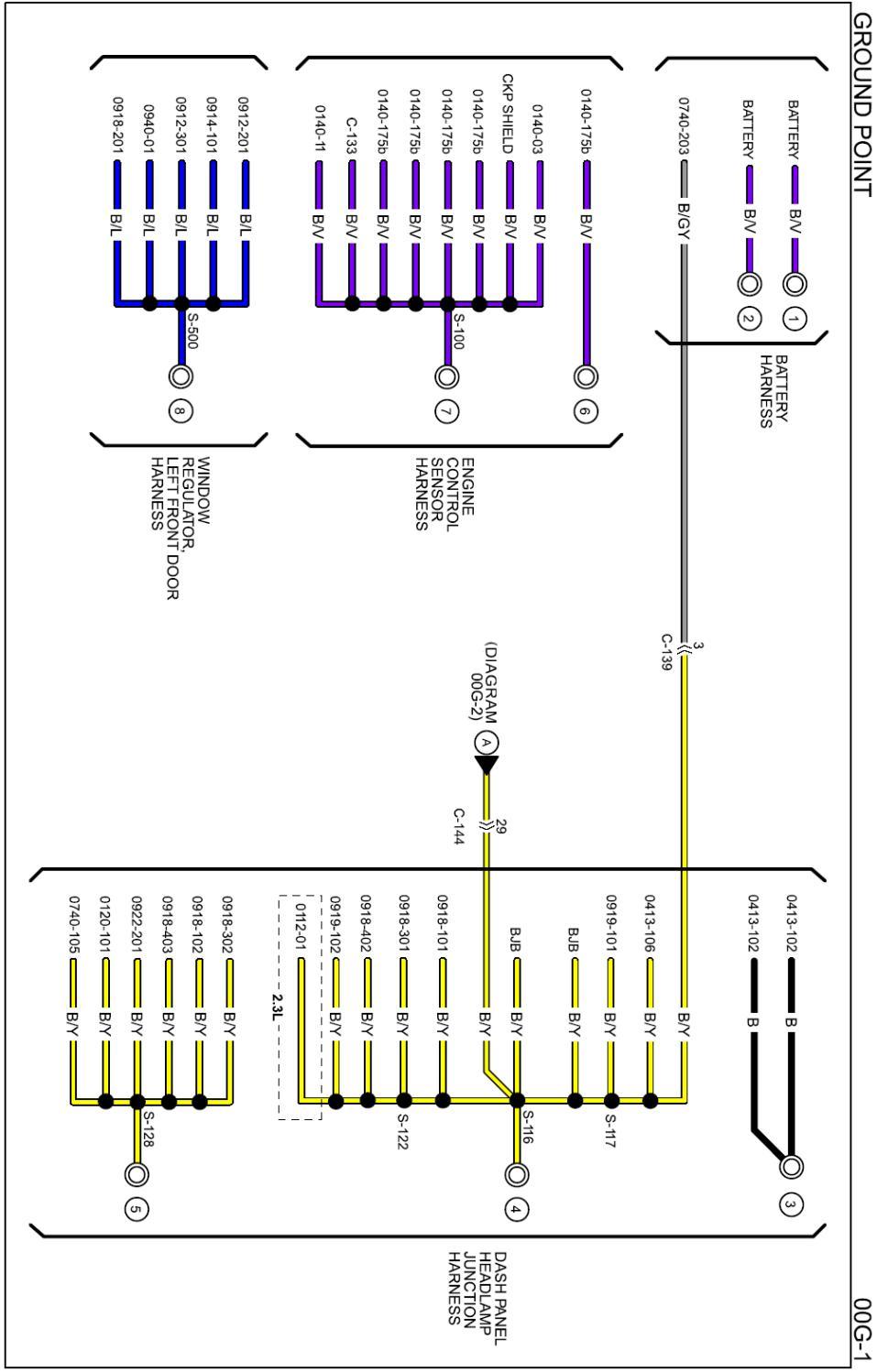

Diagram 00G-1:

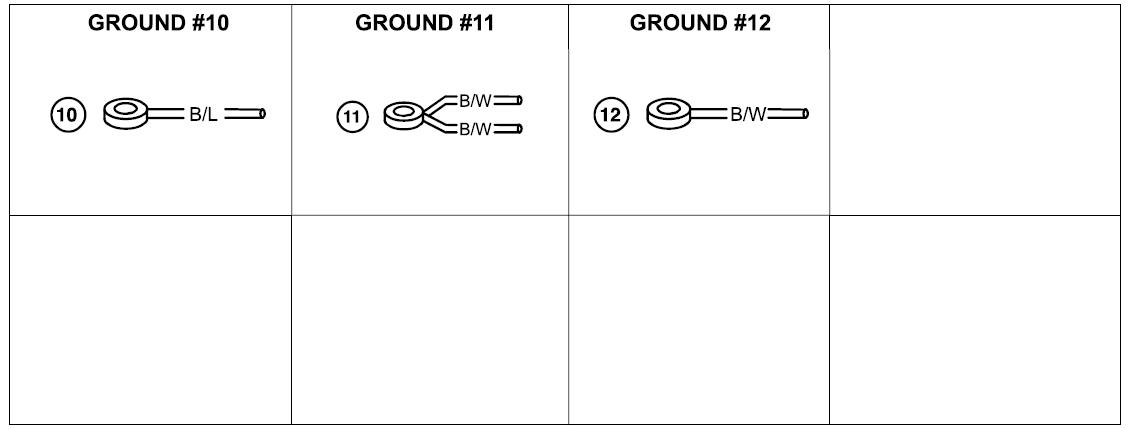

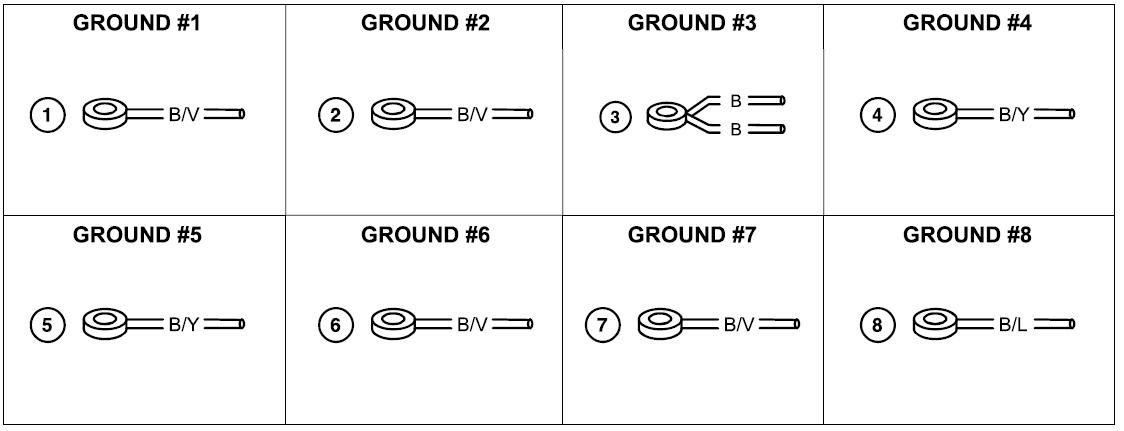

Connectors 00G-1:

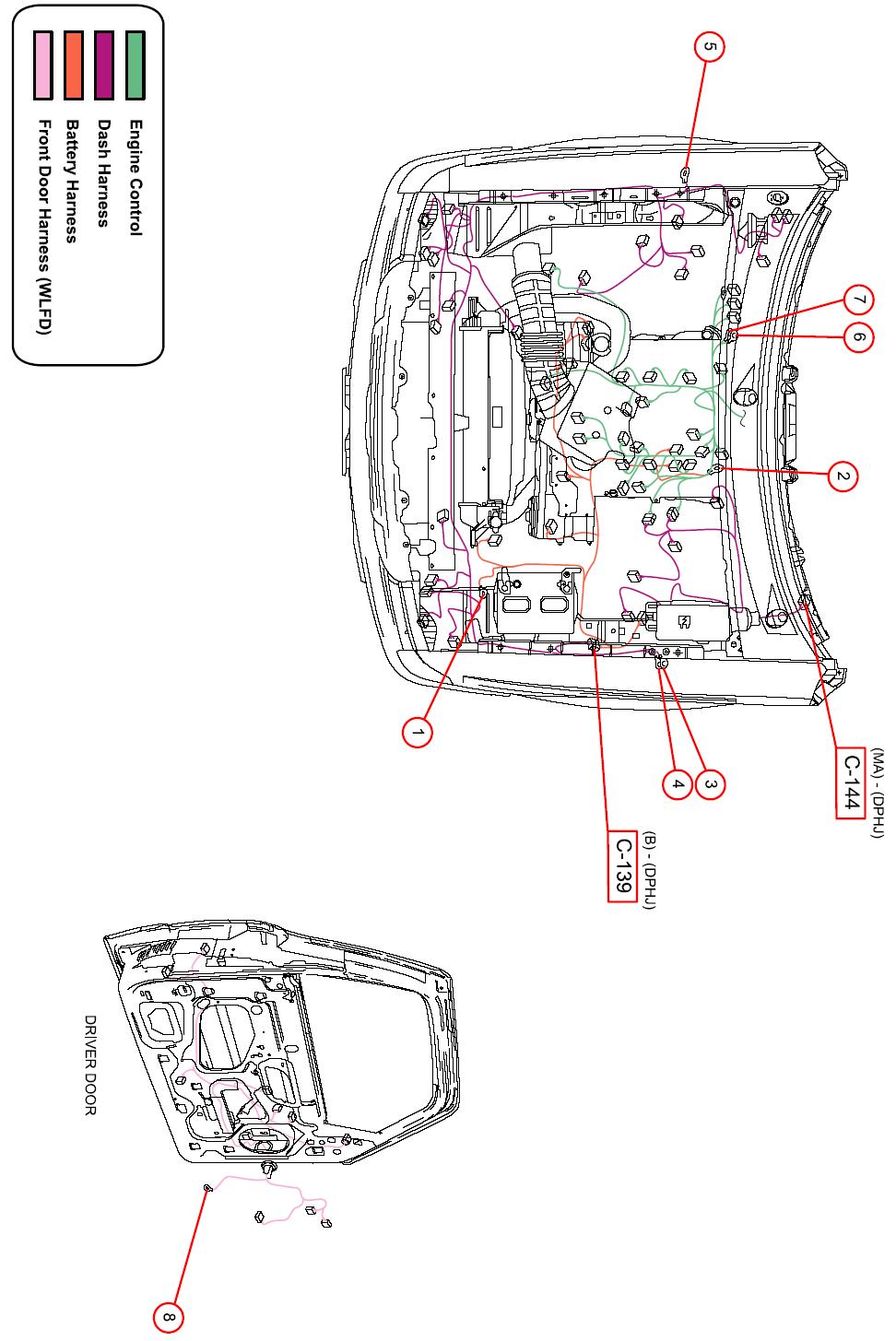

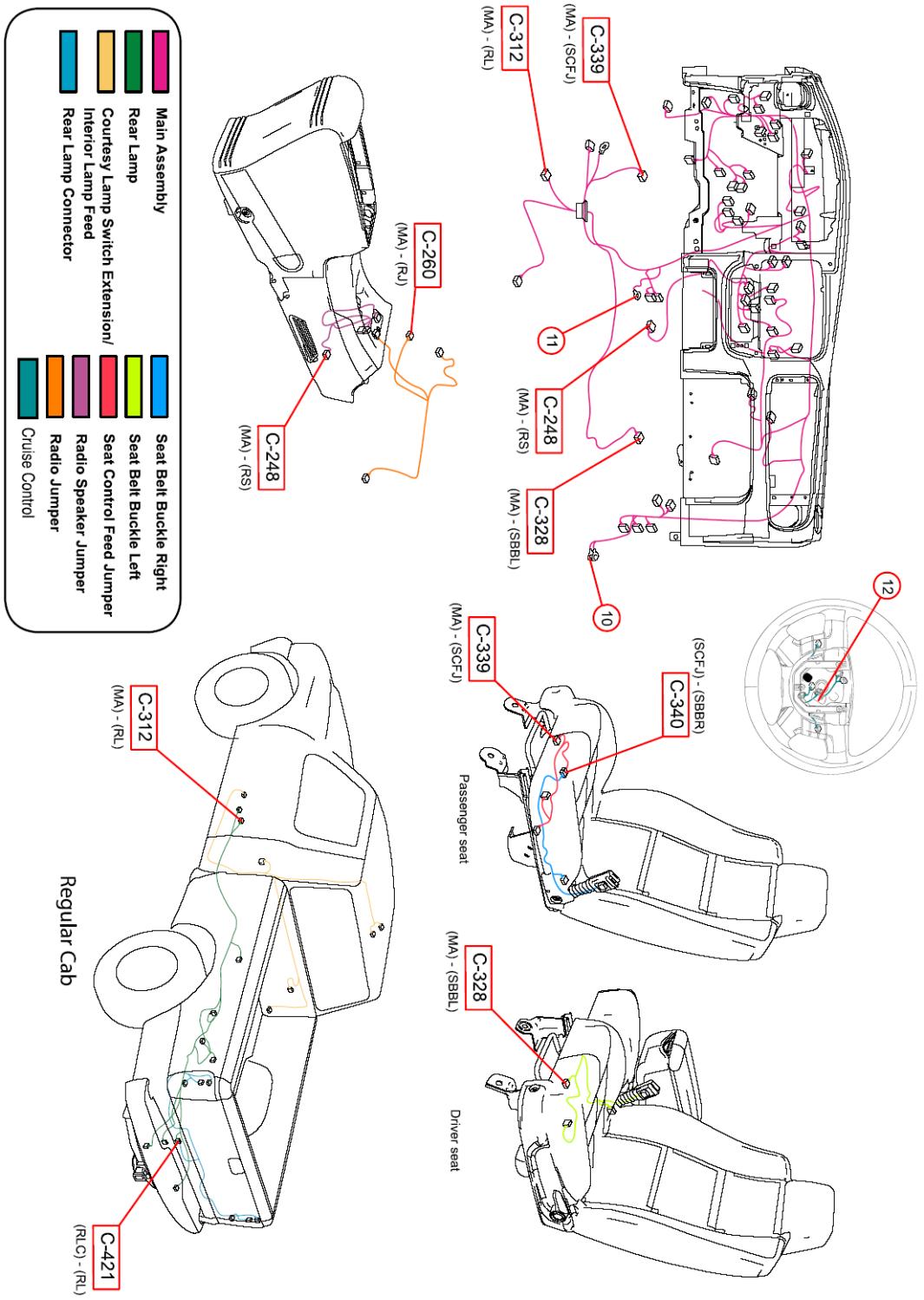

Routing View 00G-1:

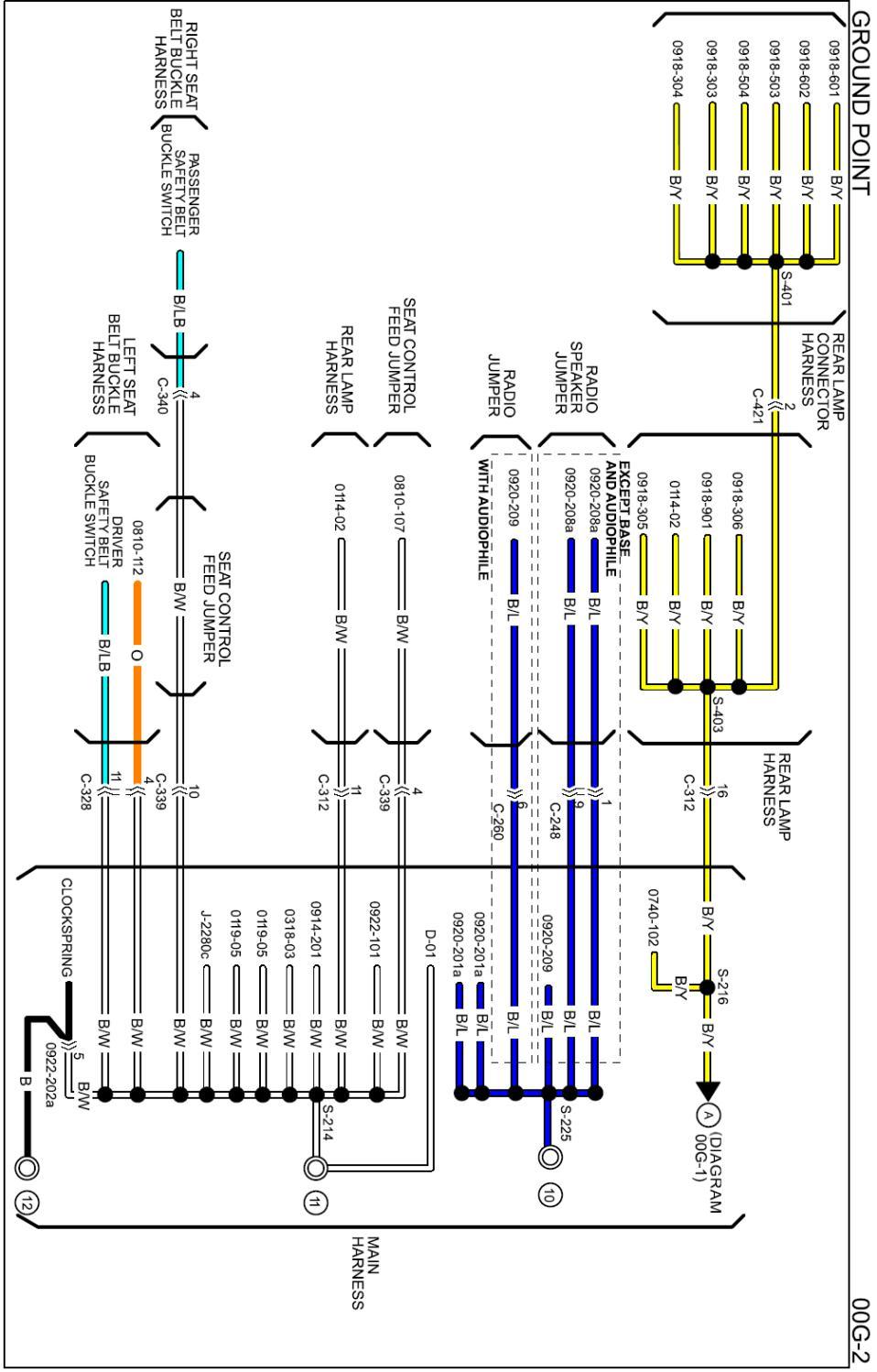

Diagram 00G-2:

Connectors 00G-2:

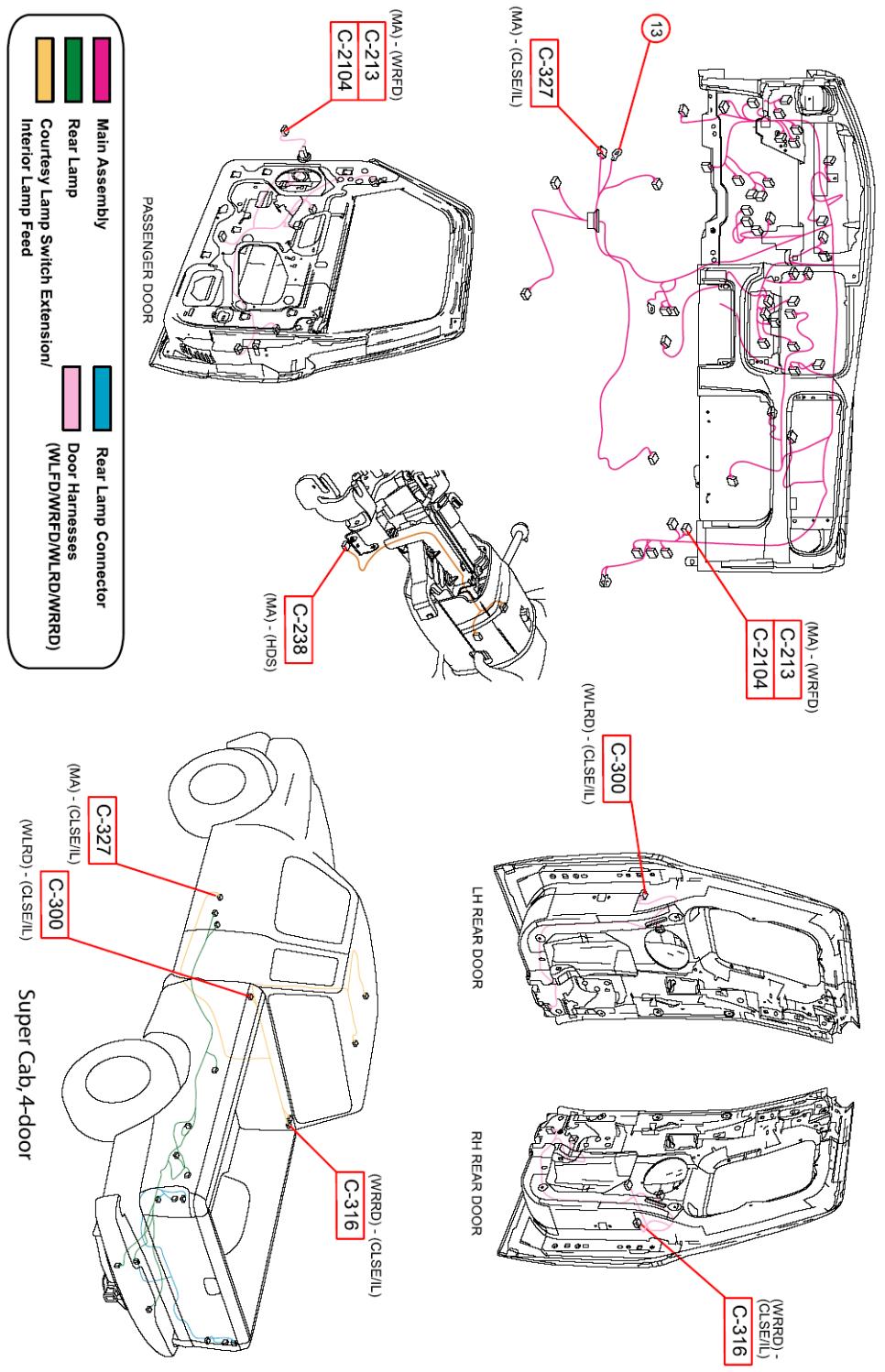

Routing View 00G-2:

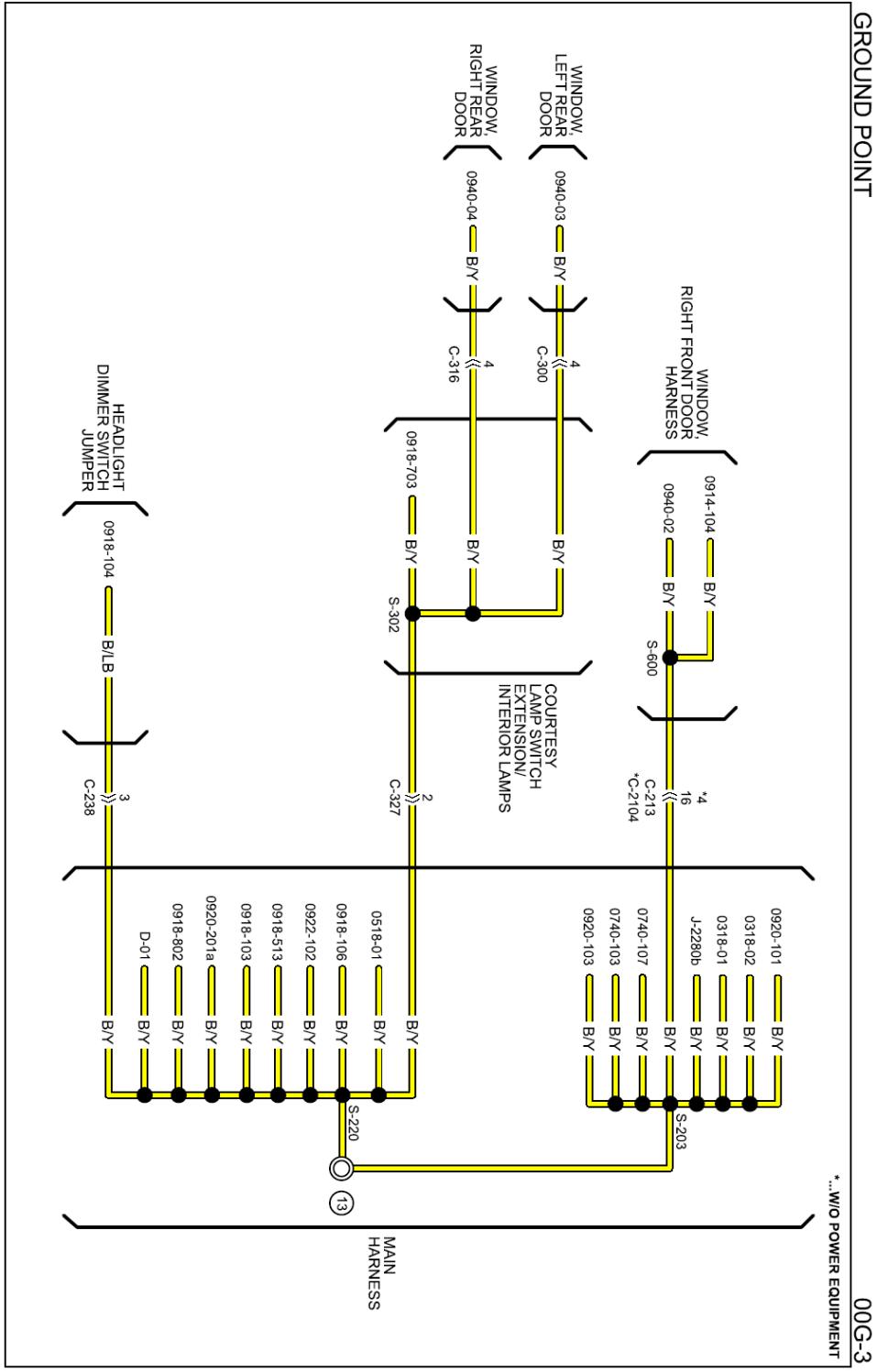

Diagram 00G-3:

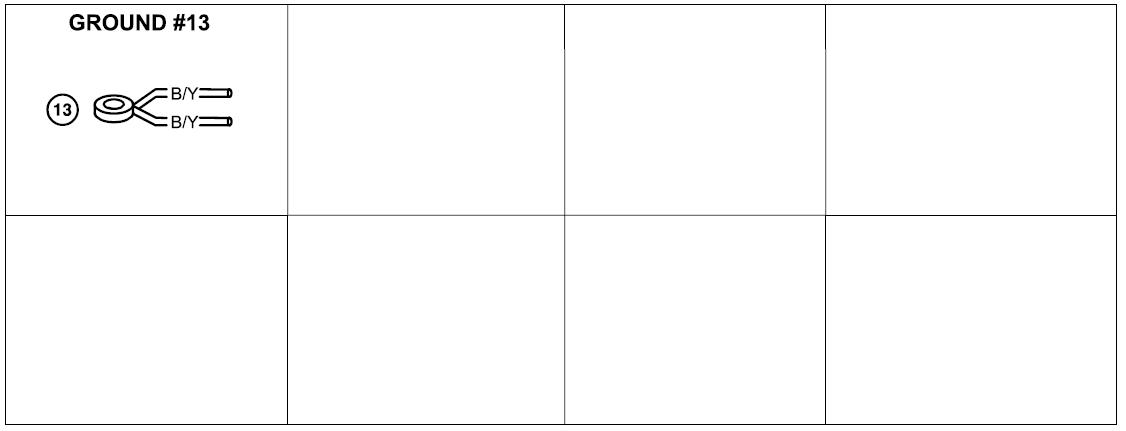

Connectors 00G-3:

Routing View 00G-3:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
