Oil Pressure Sensor: Service and Repair

OIL PRESSURE SENSOR REMOVAL / INSTALLATION - 2.3L



1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery groulld cable.

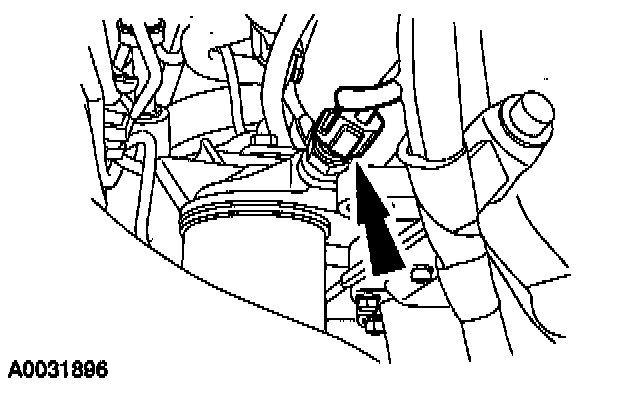

3. Disconnect the wire connector at the sender.






4. Remove the oil pressure sensor.

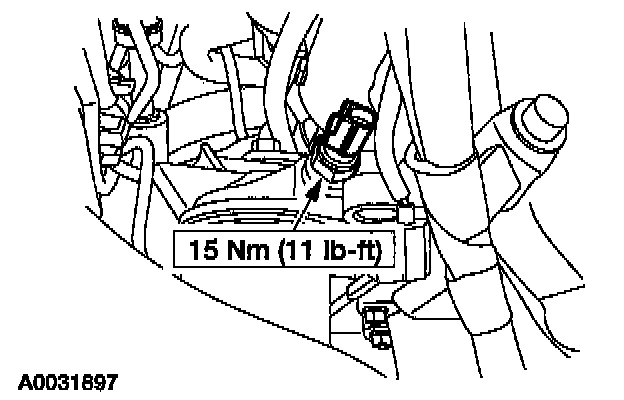

5. To install, reverse the removal procedure.






- Apply sealant to oil pressure sender threads.
