System Specifications

AUTOMATIC TRANSMISSION SPECIFICATIONS

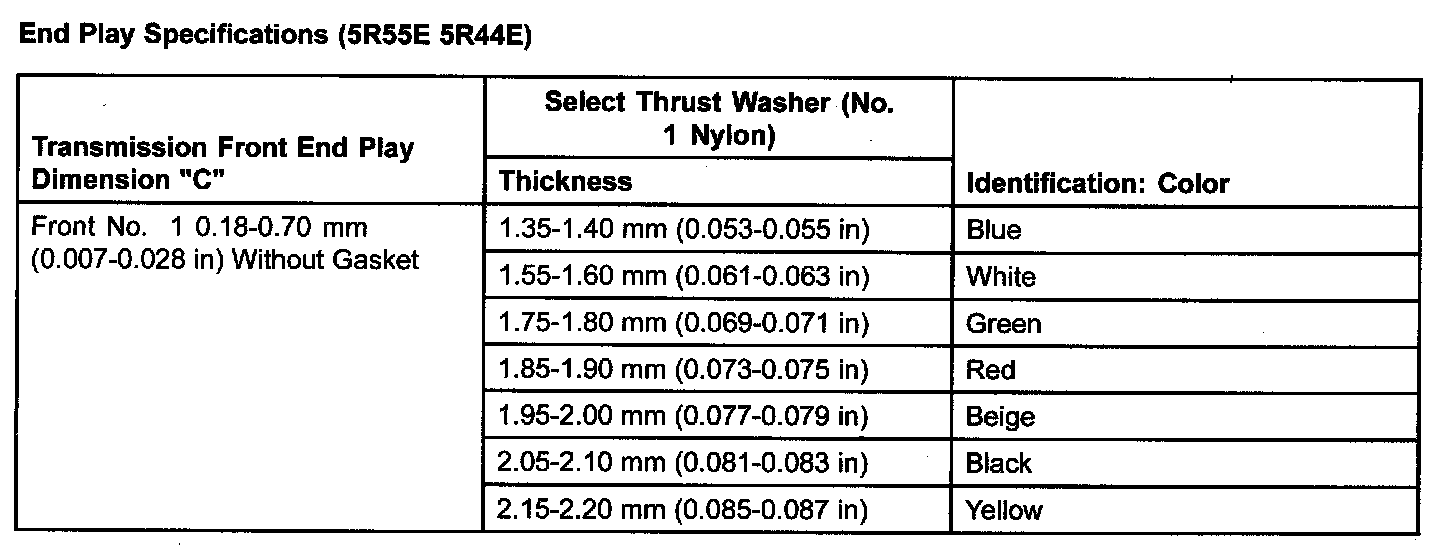

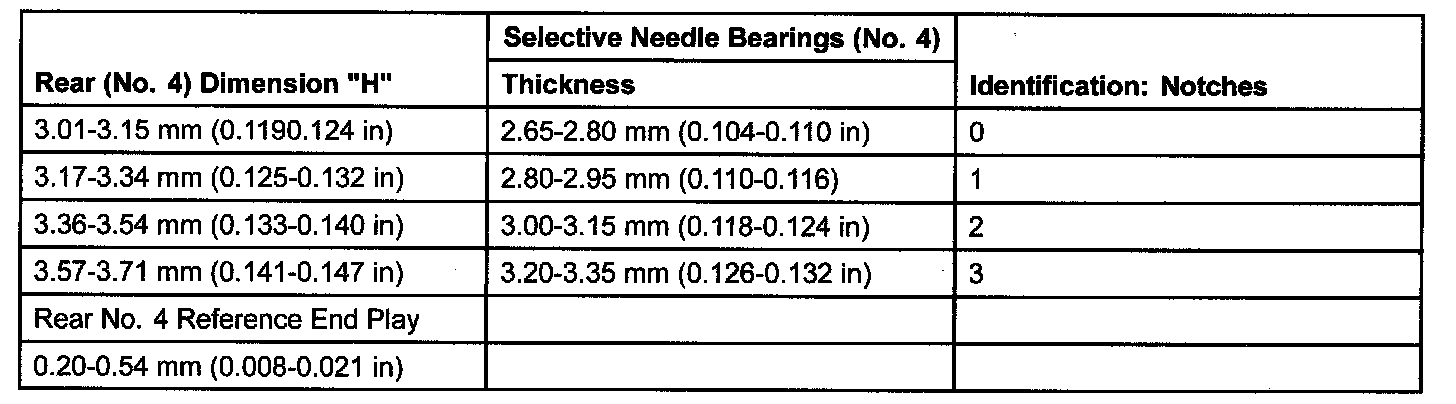

End Play Specifications (5R55E 5R44E)

End Play Specifications (5R55E 5R44E) (Part 1):

End Play Specifications (5R55E 5R44E) (Part 2):

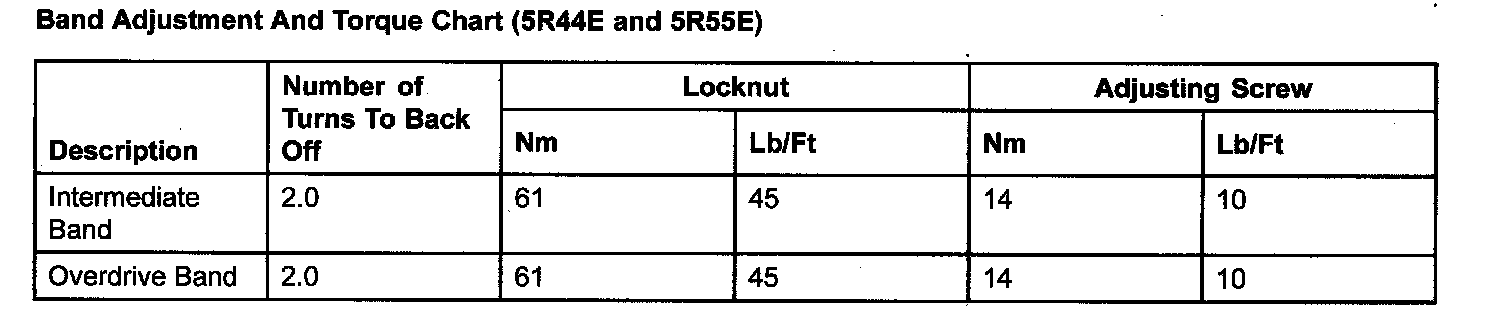

Band Adjustment And Torque Chart (5R44E and 5R55E)

Band Adjustment And Torque Chart (5R44E and 5R55E):

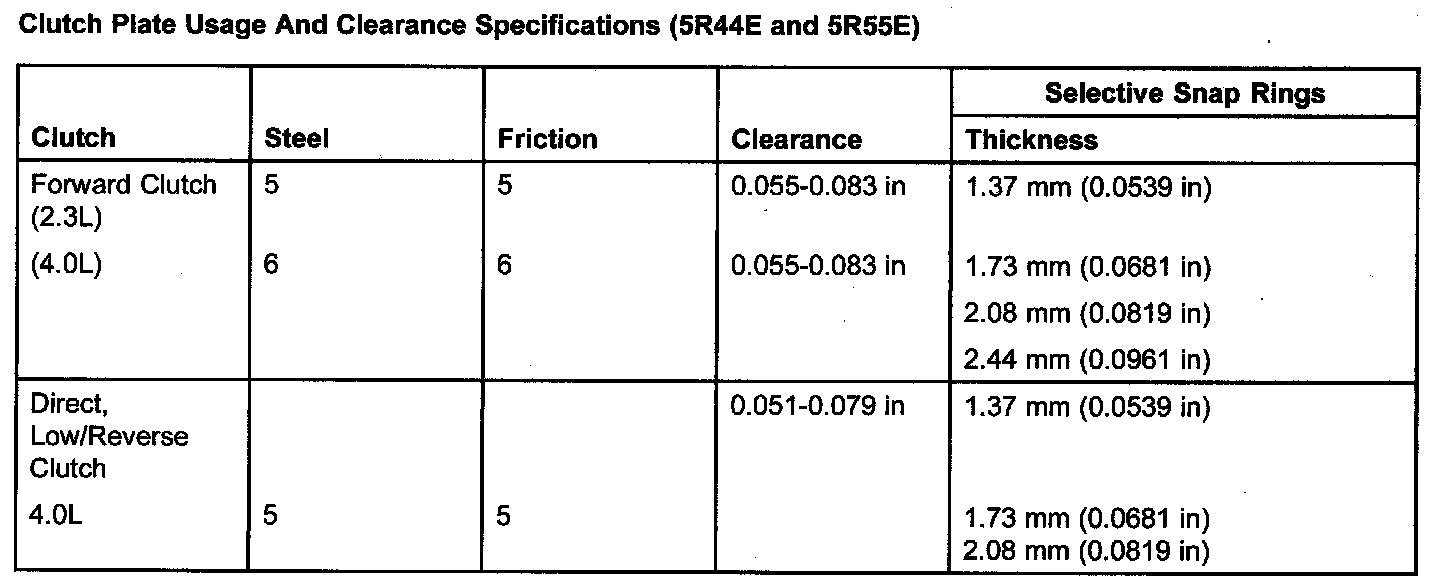

Clutch Plate Usage And Clearance Specifications (5R44E and 5R55E)

Clutch Plate Usage And Clearance Specifications (5R44E and 5R55E) Part 1):

Clutch Plate Usage And Clearance Specifications (5R44E and 5R55E) Part 2):

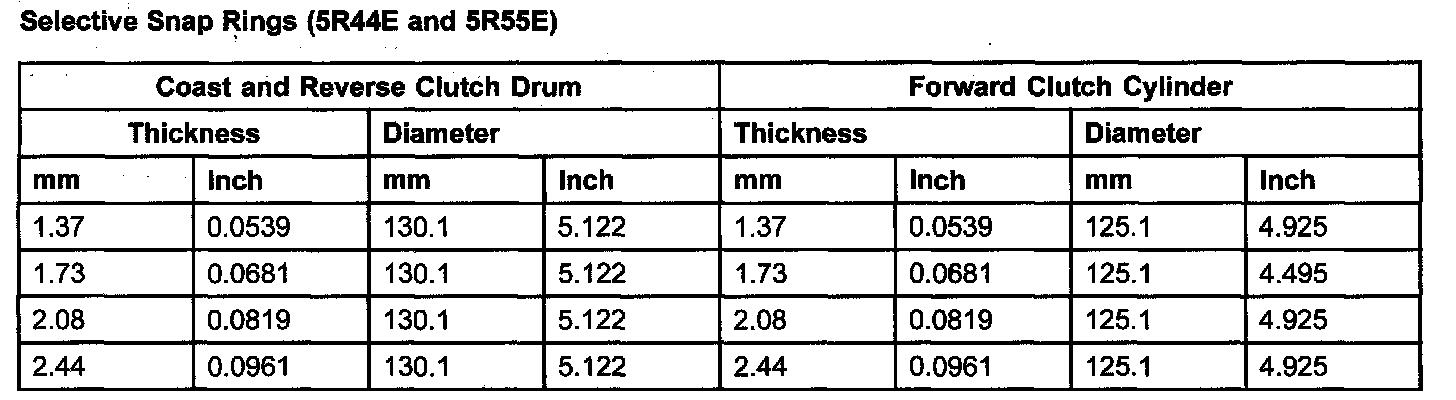

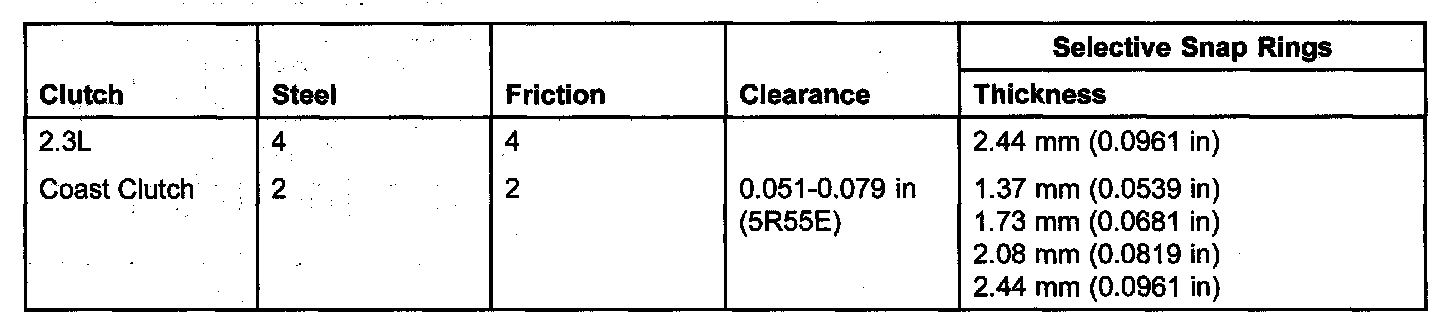

Selective Snap Rings (5R44E and 5R55E)

Selective Snap Rings (5R44E and 5R55E):

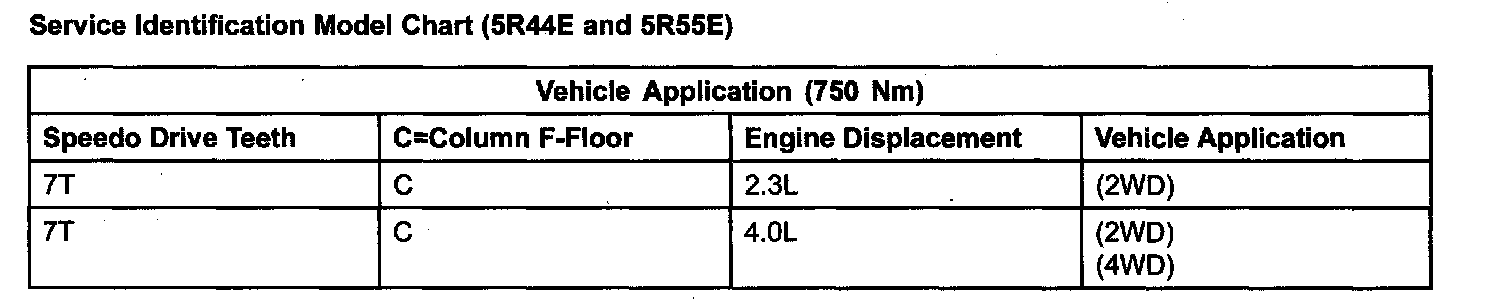

Service Identification Model Chart (5R44E and 5R55E)

Service Identification Model Chart (5R44E and 5R55E):

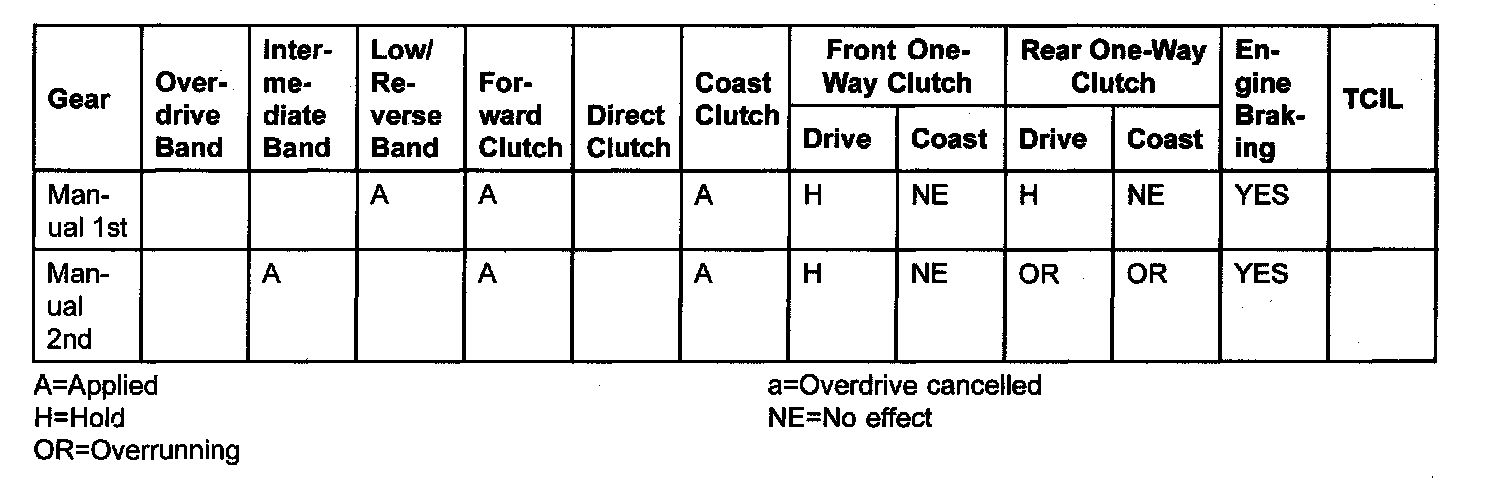

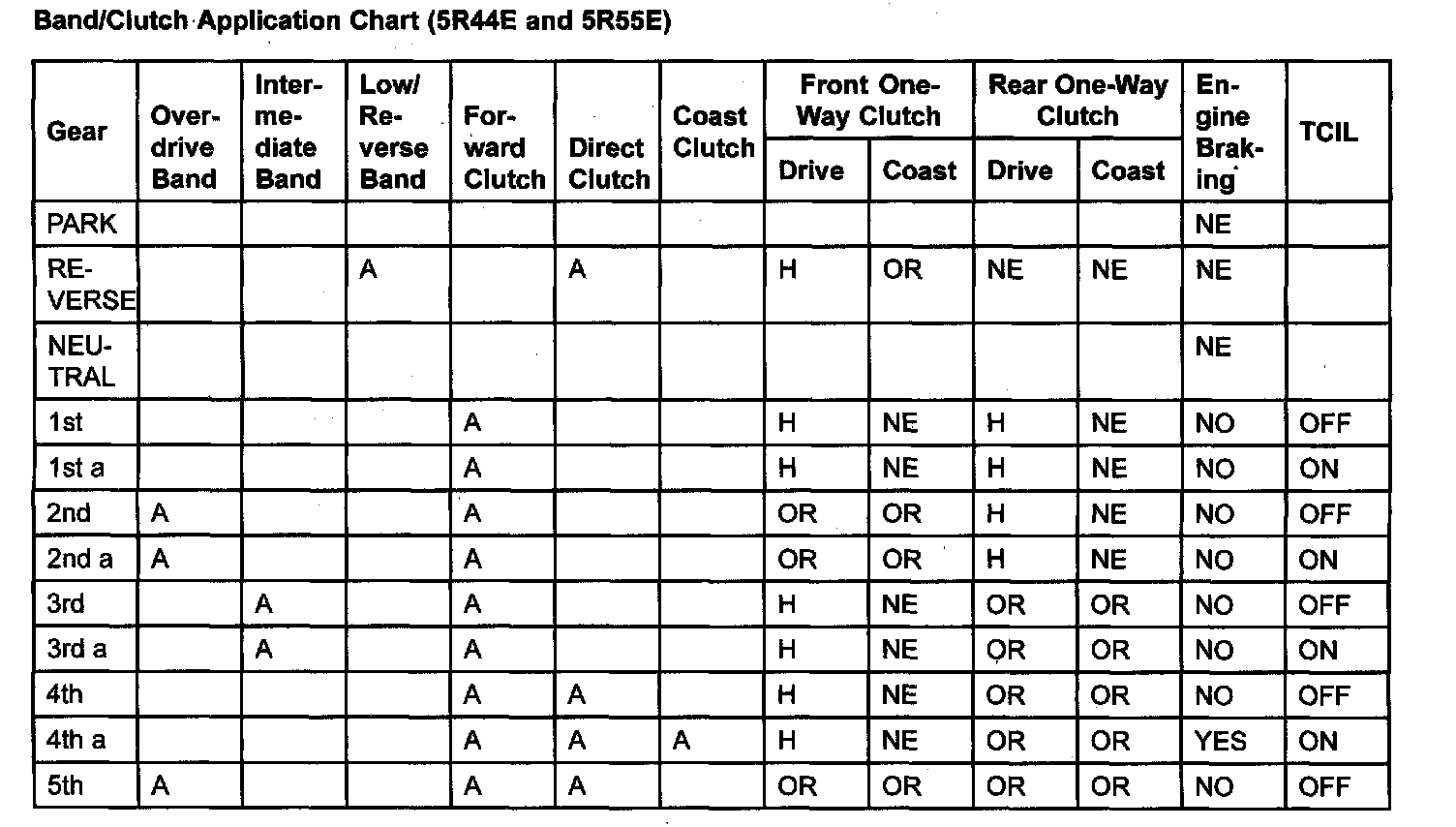

Band/Clutch Application Chart (5R44E and 5R55E)

Band/Clutch Application Chart (5R44E and 5R55E) (Part 1):

Band/Clutch Application Chart (5R44E and 5R55E) (Part 2):

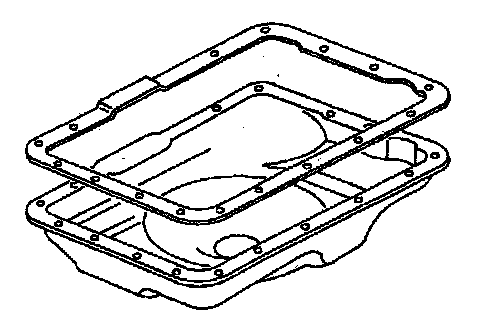

Oil Pan

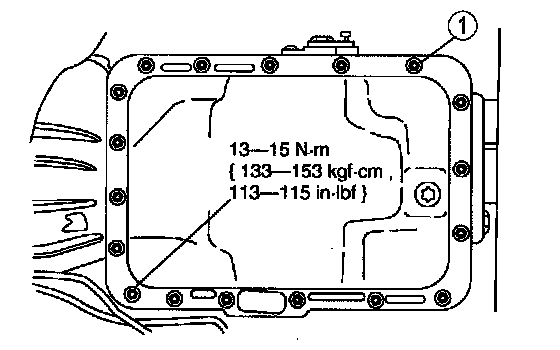

Loosely install the 18 oil pan bolts.





Tighten the oil pan bolts
Use a crisscross sequence to tighten the oil pan bolts.
