System Specifications

MANUAL TRANSMISSION AND CLUTCH SPECIFICATIONS

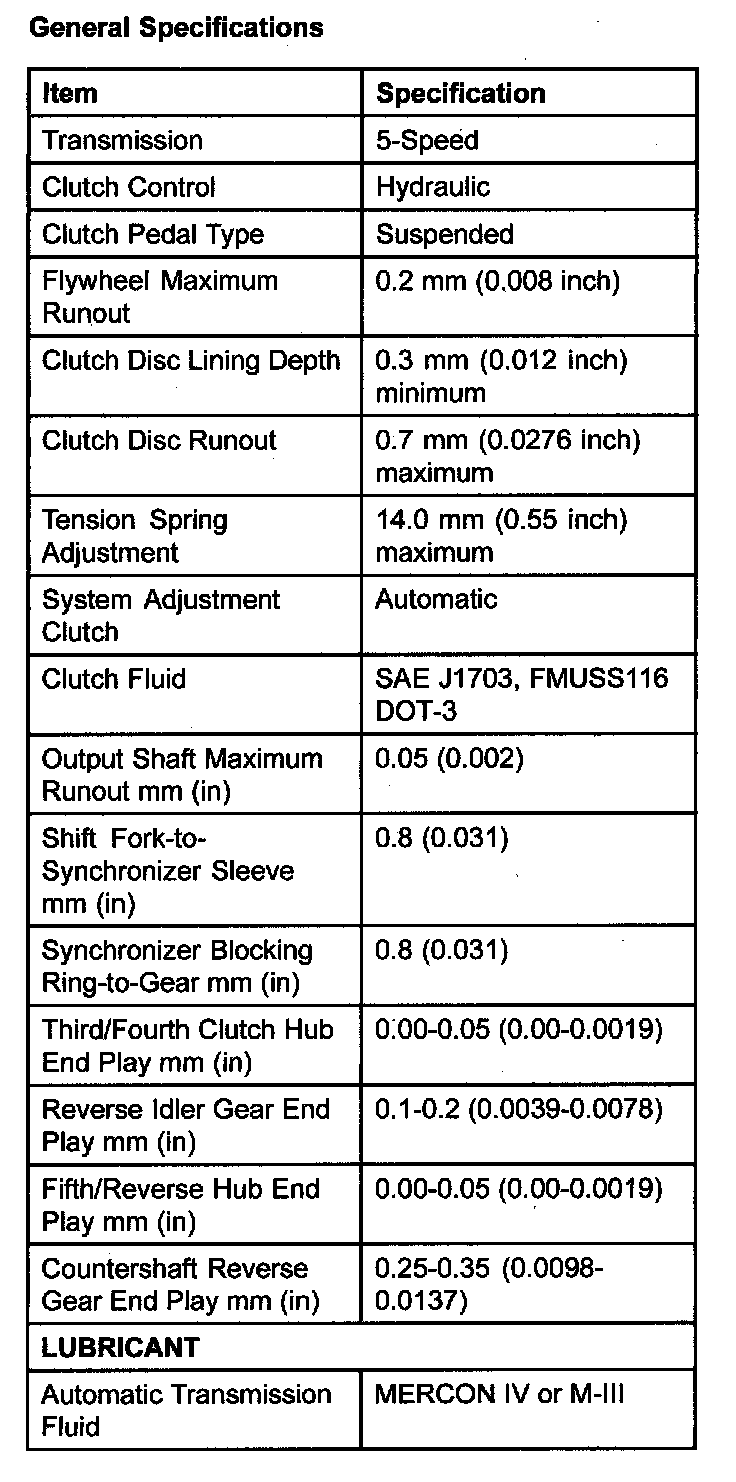

General Specifications

General Specifications:

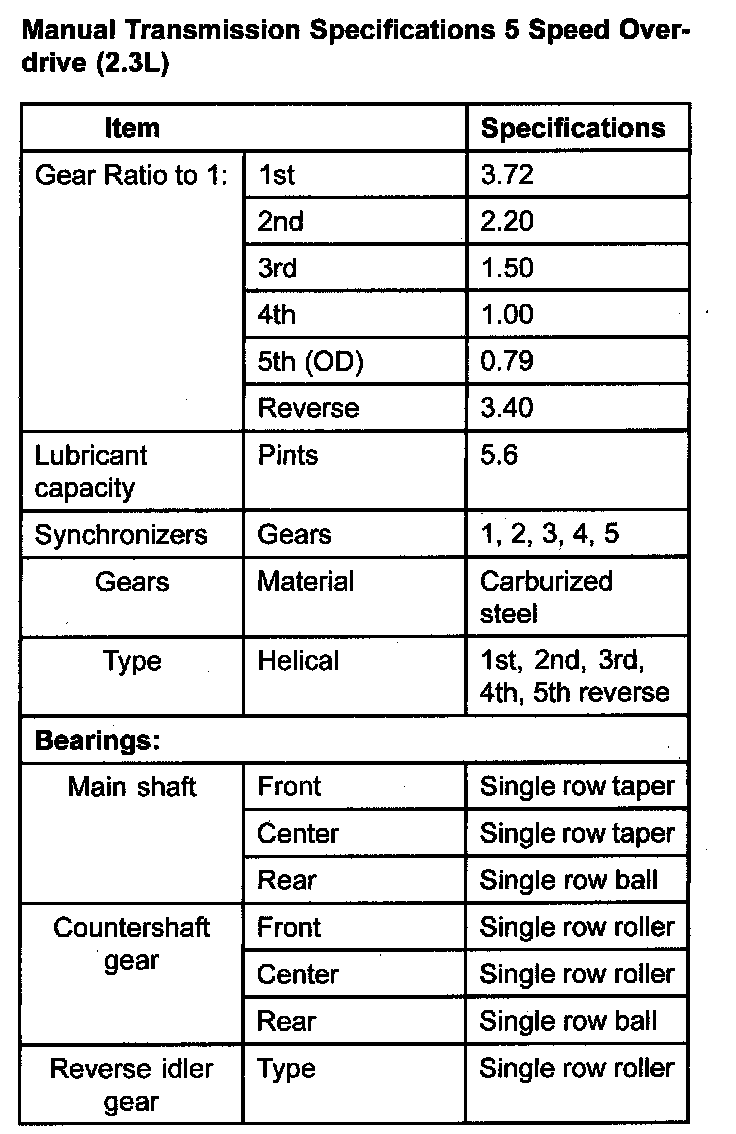

Manual Transmission Specifications 5 Speed Overdrive (2.3L)

Manual Transmission Specifications 5 Speed Overdrive (2.3L):

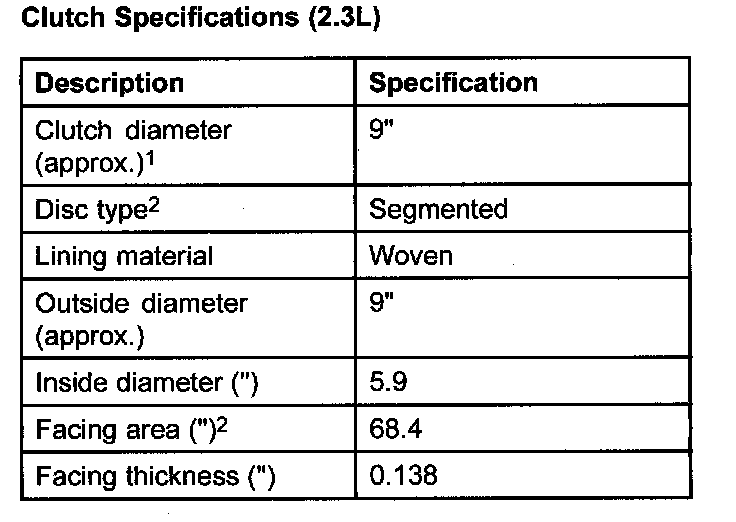

Clutch Specifications (2.3L)

Clutch Specifications (2.3L) (Part 1):

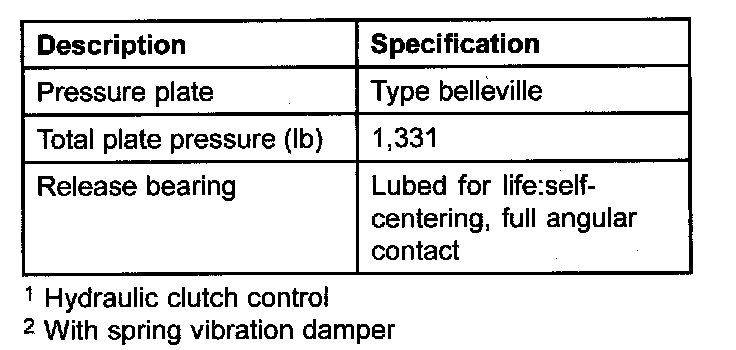

Clutch Specifications (2.3L) (Part 2):
