Engine Ignition Components - 4.0L

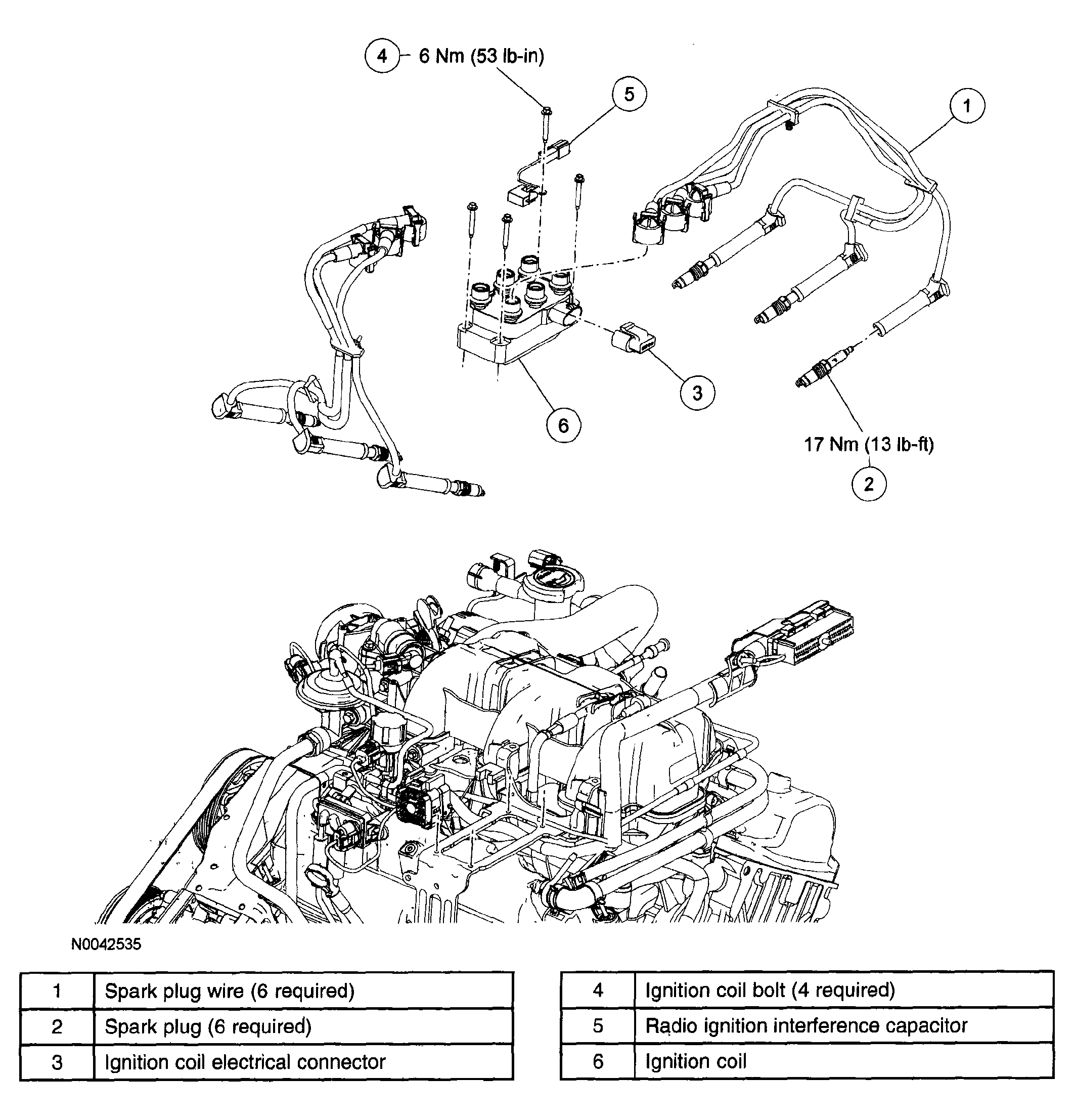

Fig 1: Engine Ignition Replacement Components With Torque Specifications (4.0L)
G04308300Courtesy of MAZDA MOTORS CORP.
