Cargo Compartment Light Inspection

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cargo compartment light. (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
Inspect for continuity between the cargo compartment light terminals using an ohmmeter.
- If not as specified, replace the cargo compartment light.

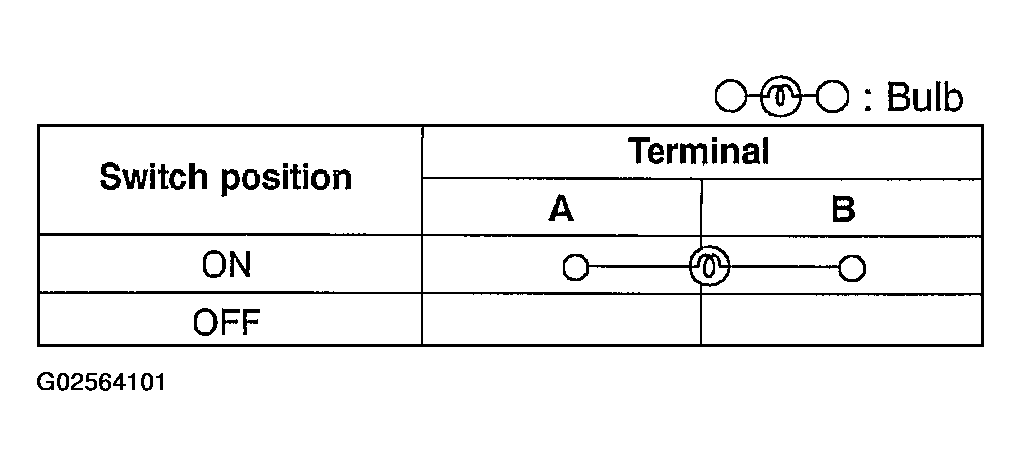

Fig 1: Cargo Compartment Light Continuity Test
Courtesy of MAZDA MOTORS CORP.

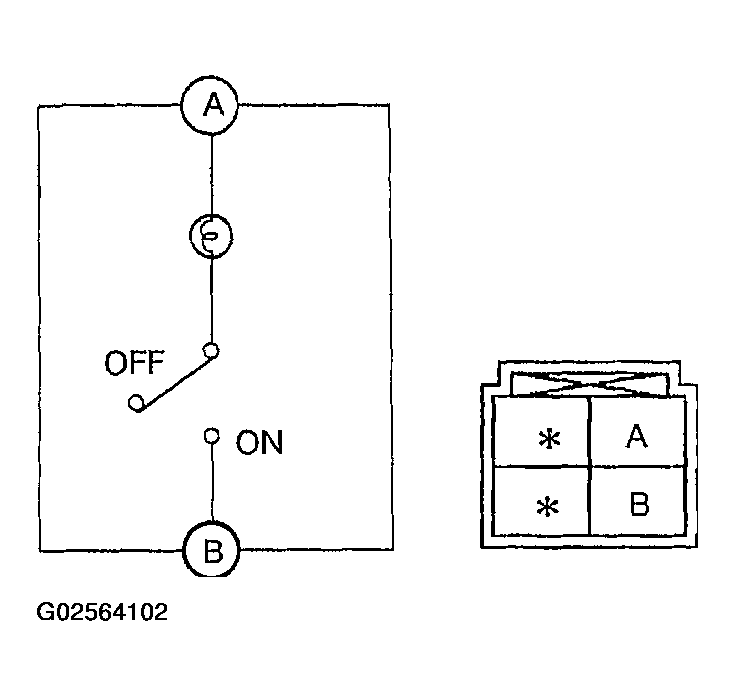

Fig 2: Identifying Cargo Compartment Light Terminals
Courtesy of MAZDA MOTORS CORP.
