Door Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door switch. (See DOOR SWITCH REMOVAL/INSTALLATION .)
Inspect for continuity between the door switch terminal and a body ground using an ohmmeter.
- If not as specified, replace the door switch.

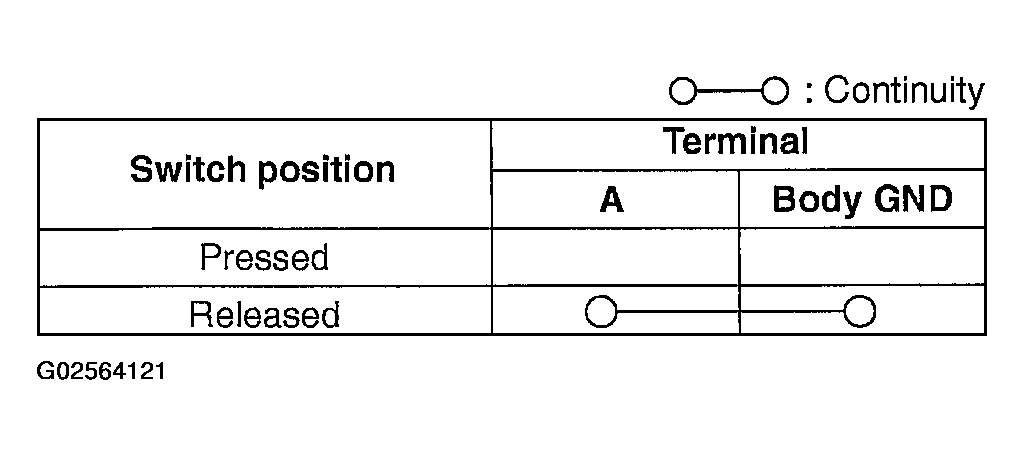

Fig 1: Door Switch Terminals Continuity Test
Courtesy of MAZDA MOTORS CORP.

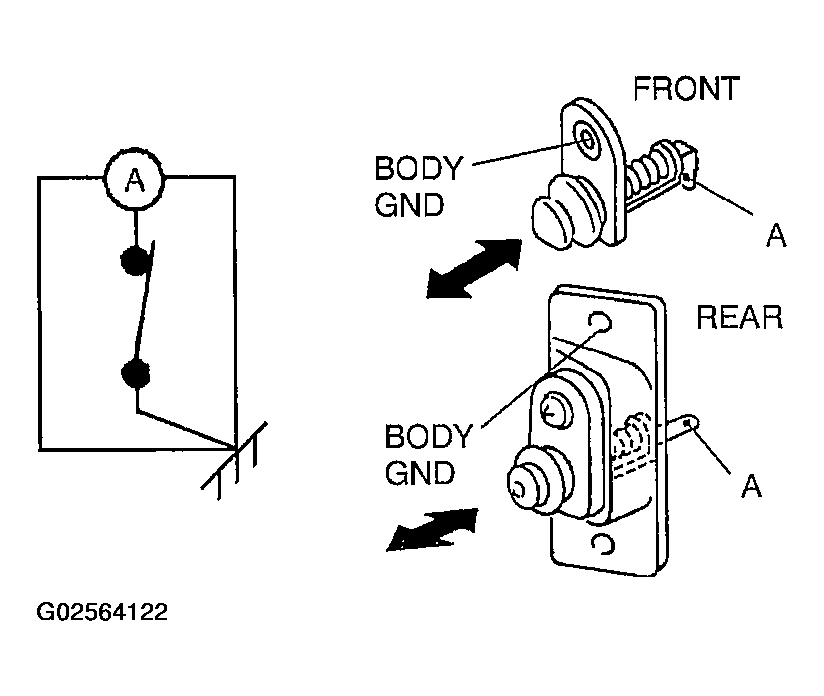

Fig 2: Identifying Door Switch Terminals
Courtesy of MAZDA MOTORS CORP.
