Front Side Turn Light Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING FRONT SIDE TURN LIGHT ⁽¹⁾

Component/Step No.

Component Description

Front Side Turn Light

Connector

⁽¹⁾	See Fig 1.

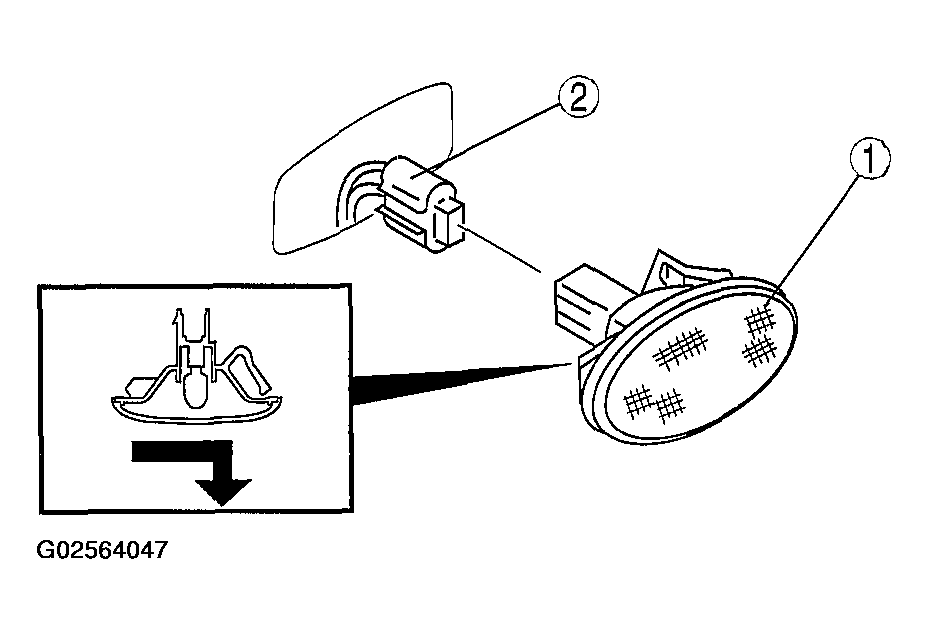

Fig 1: Removing/Installing Front Side Turn Light

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
