Front Turn Light/Side Marker Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the fasteners, then pull back the mudguard.

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING FRONT TURN LIGHT/SIDE MARKER LIGHT BULB ⁽¹⁾

Component/Step No.

Component Description

Socket

Front Turn Light/Side Marker Light Bulb

Connector

⁽¹⁾	See Fig 1.

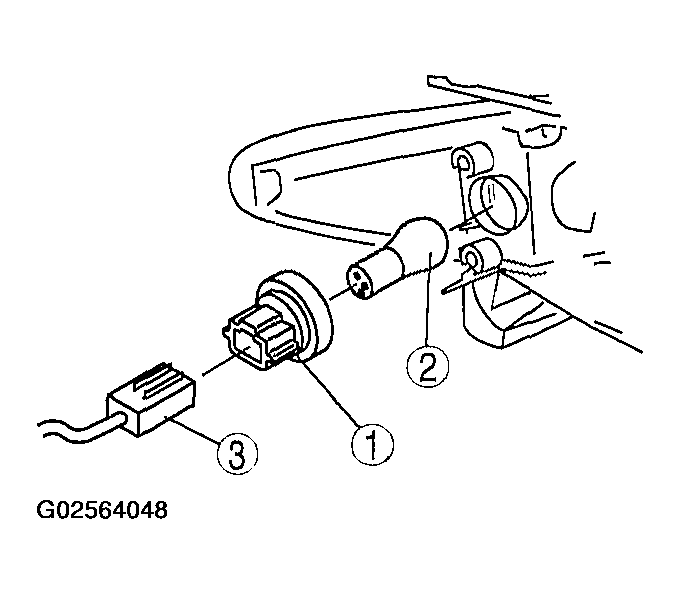

Fig 1: Removing/Installing Front Turn Light/Side Marker Light Bulb

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
