Turn Switch

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

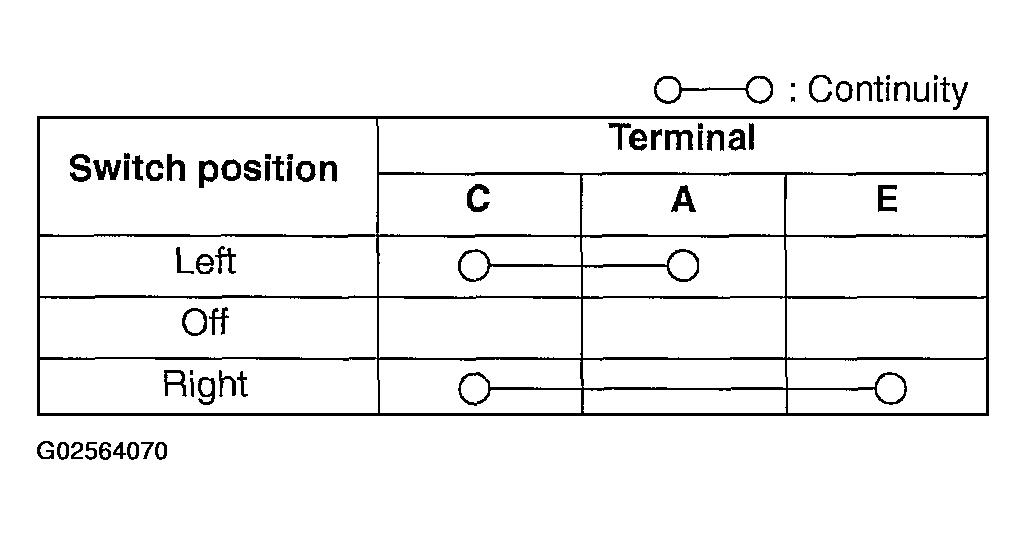

Fig 1: Turn Switch Continuity Test

Courtesy of MAZDA MOTORS CORP.

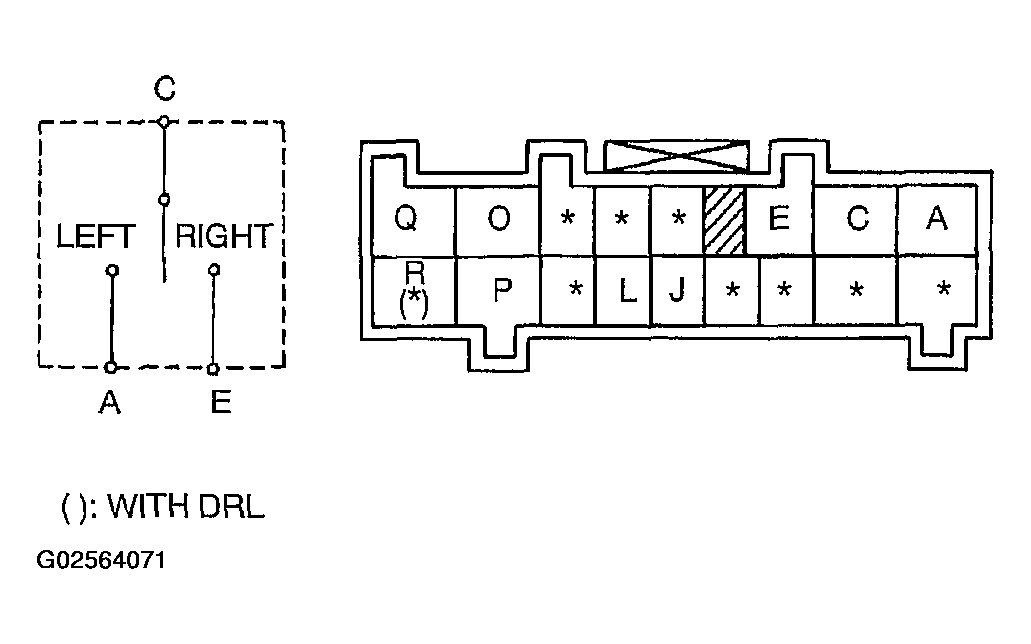

Fig 2: Identifying Turn Switch Terminals

Courtesy of MAZDA MOTORS CORP.
