Light Switch Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING LIGHT SWITCH

Component/Step No.

Component Description

Connector

Screw

Light switch

⁽¹⁾	See Fig 1.

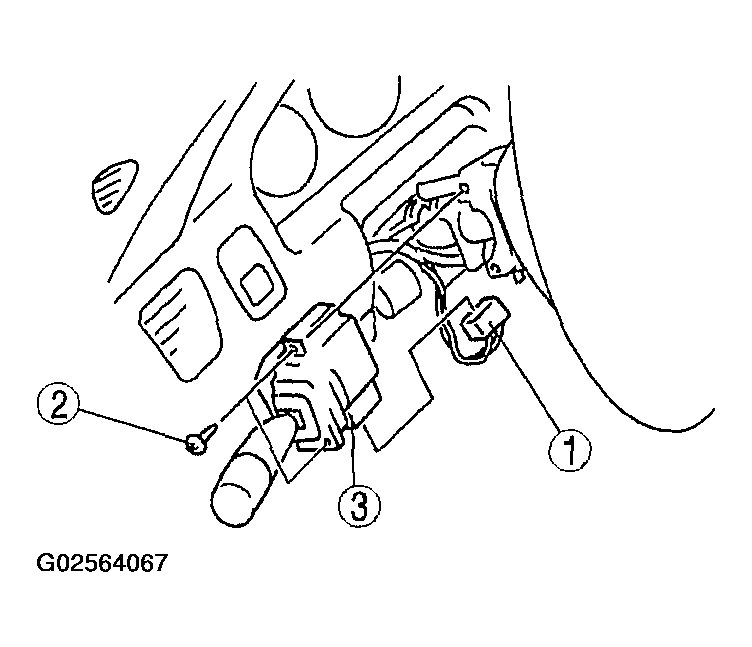

Fig 1: Removing/Installing Light Switch

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
