Socket Removal Note (Left Side Only)

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery.
  2. Remove the fresh-air duct installation bolt.
  3. Slide the fresh-air duct to the right, and ensure space for the socket removal.

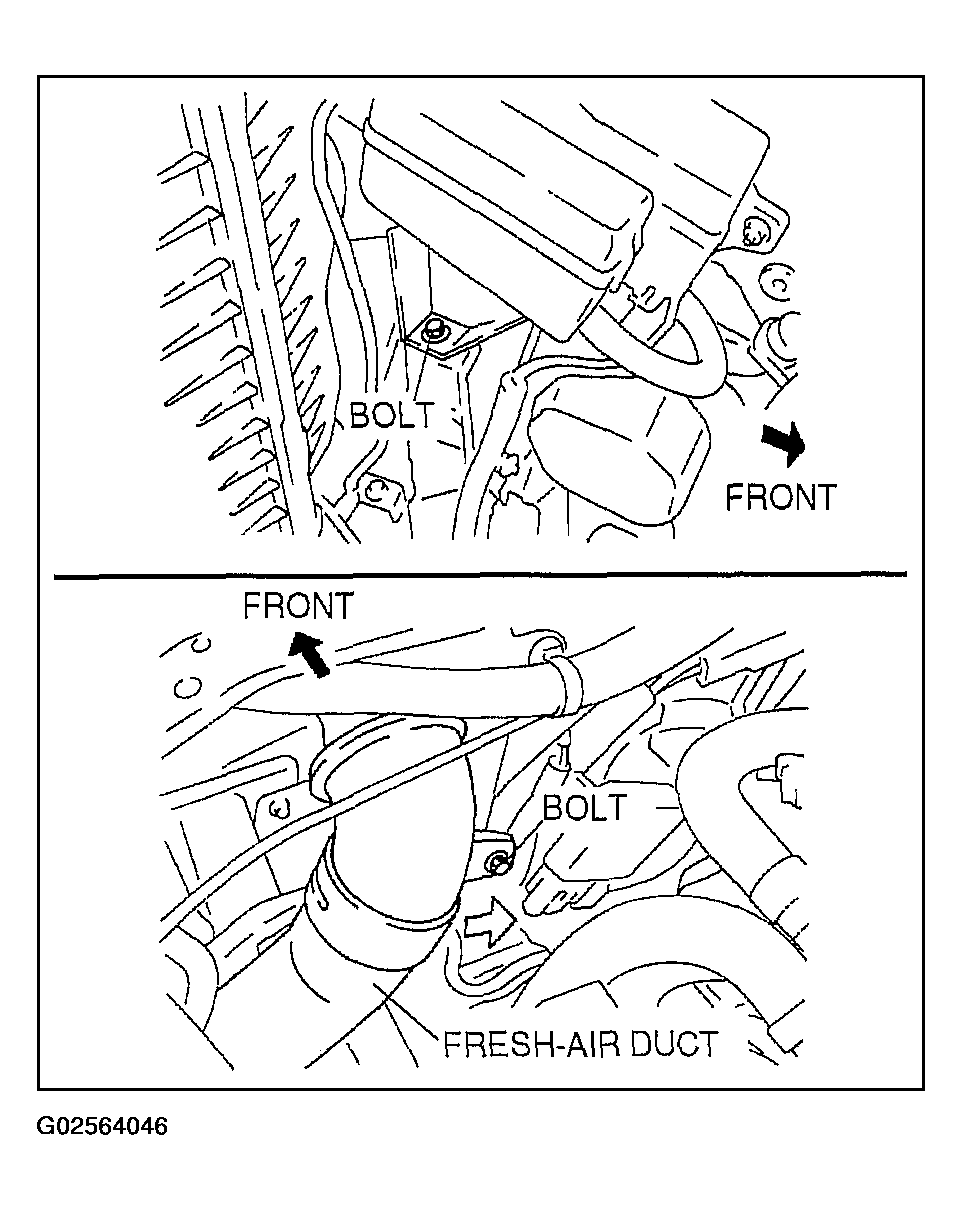

    Fig 1: Removing Fresh-Air Duct Installation Bolt
    G02564046Courtesy of MAZDA MOTORS CORP.
