Socket Installation Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hook the harness as shown in the figure.

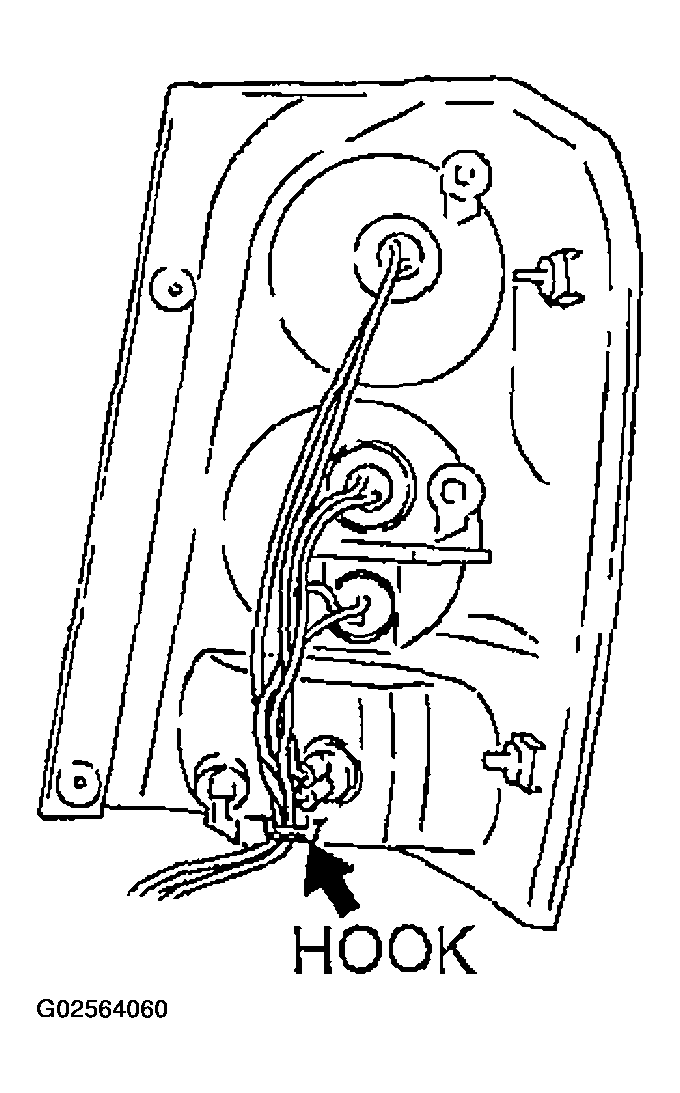

    Fig 1: Hooking Harness
    G02564060Courtesy of MAZDA MOTORS CORP.
