[RC4A-El] Transmission/Transaxle

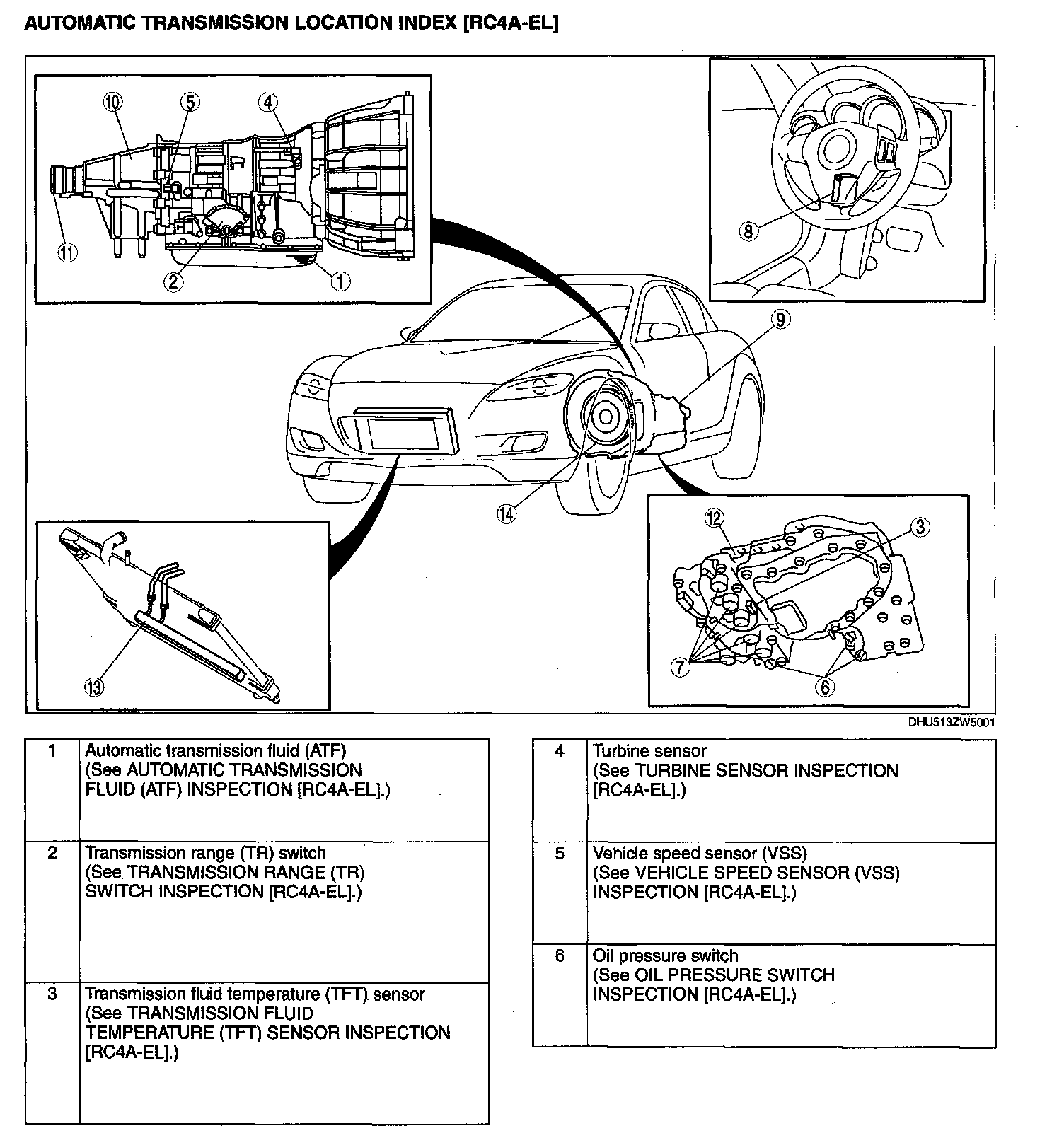

AUTOMATIC TRANSMISSION LOCATION INDEX [RC4A-EL]

AUTOMATIC TRANSMISSION LOCATION INDEX (Part 1):

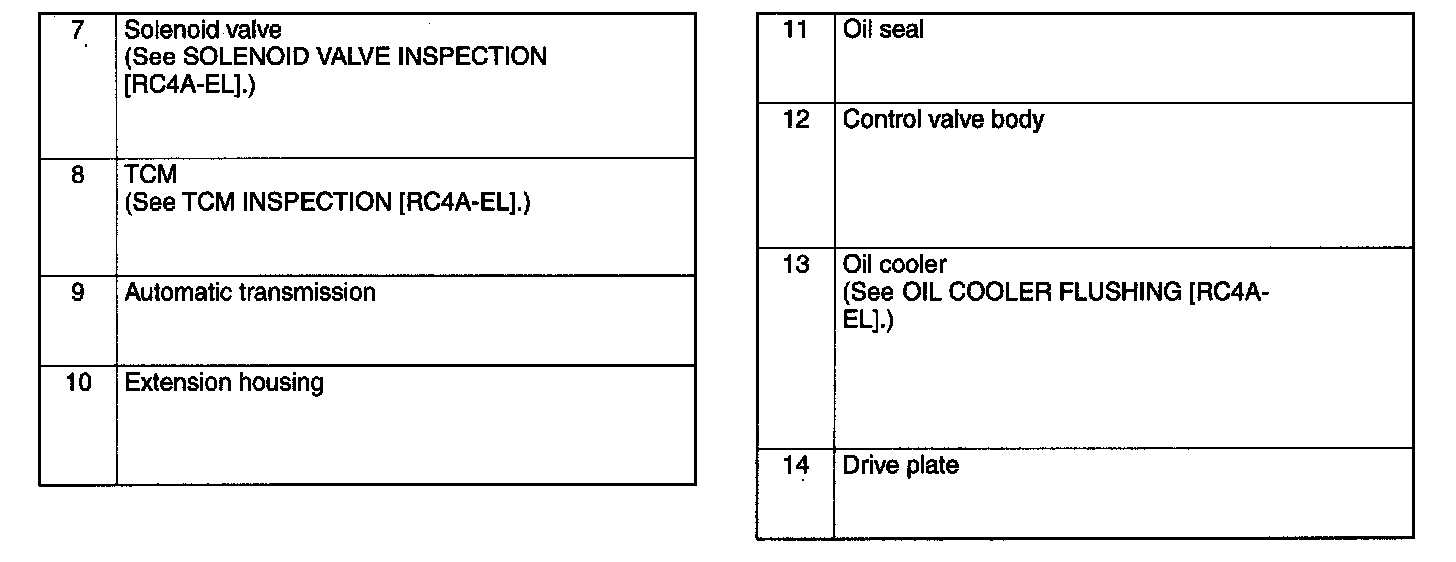

AUTOMATIC TRANSMISSION LOCATION INDEX (Part 2):
