Ignition System: Testing and Inspection

Spark Test
1. Release the fuel line pressure. (See BEFORE SERVICE PRECAUTION.)
2. Remove the fuel pump relay pump relay.
3. Verify that each high-tension lead and the connector is connected properly.
4. Inspect the ignition system using the following procedure:

WARNING: High voltage in the ignition system can cause strong electrical shock which can result in serious injury. Avoid direct contact to the vehicle body during the following spark test.

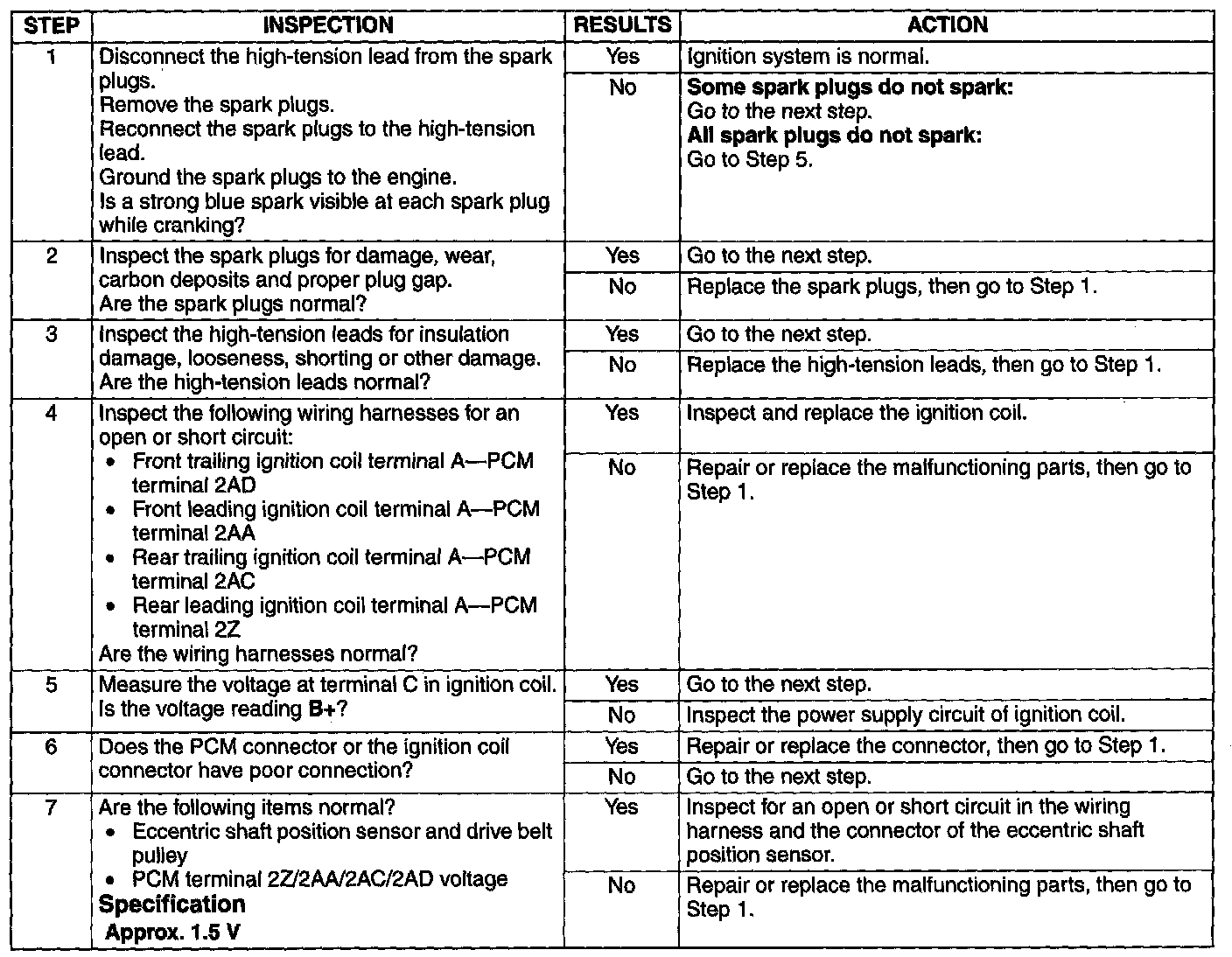

Step 1-Step 7:

5. Install the fuel pump relay.
