Transmission Temperature Sensor/Switch, A/T

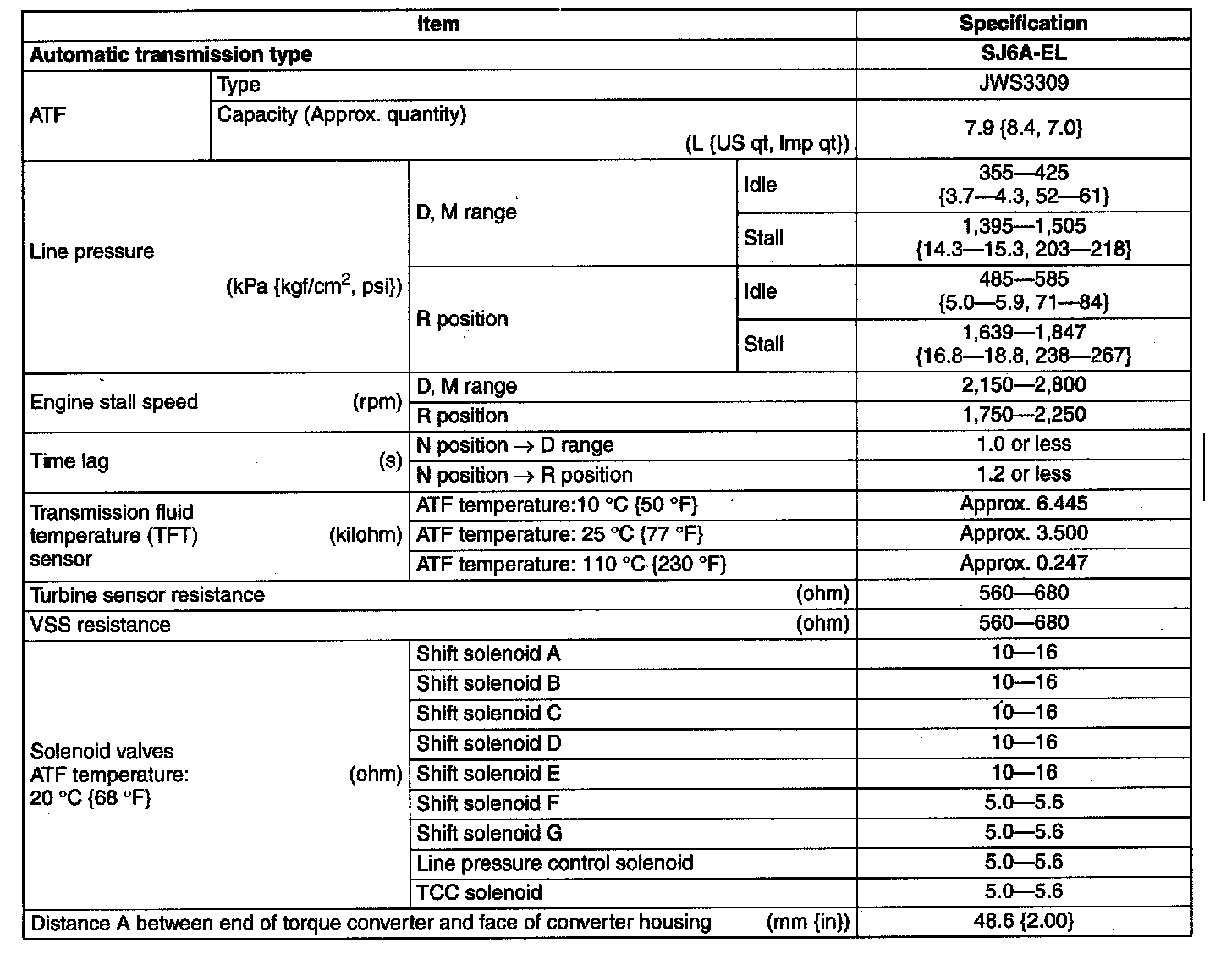

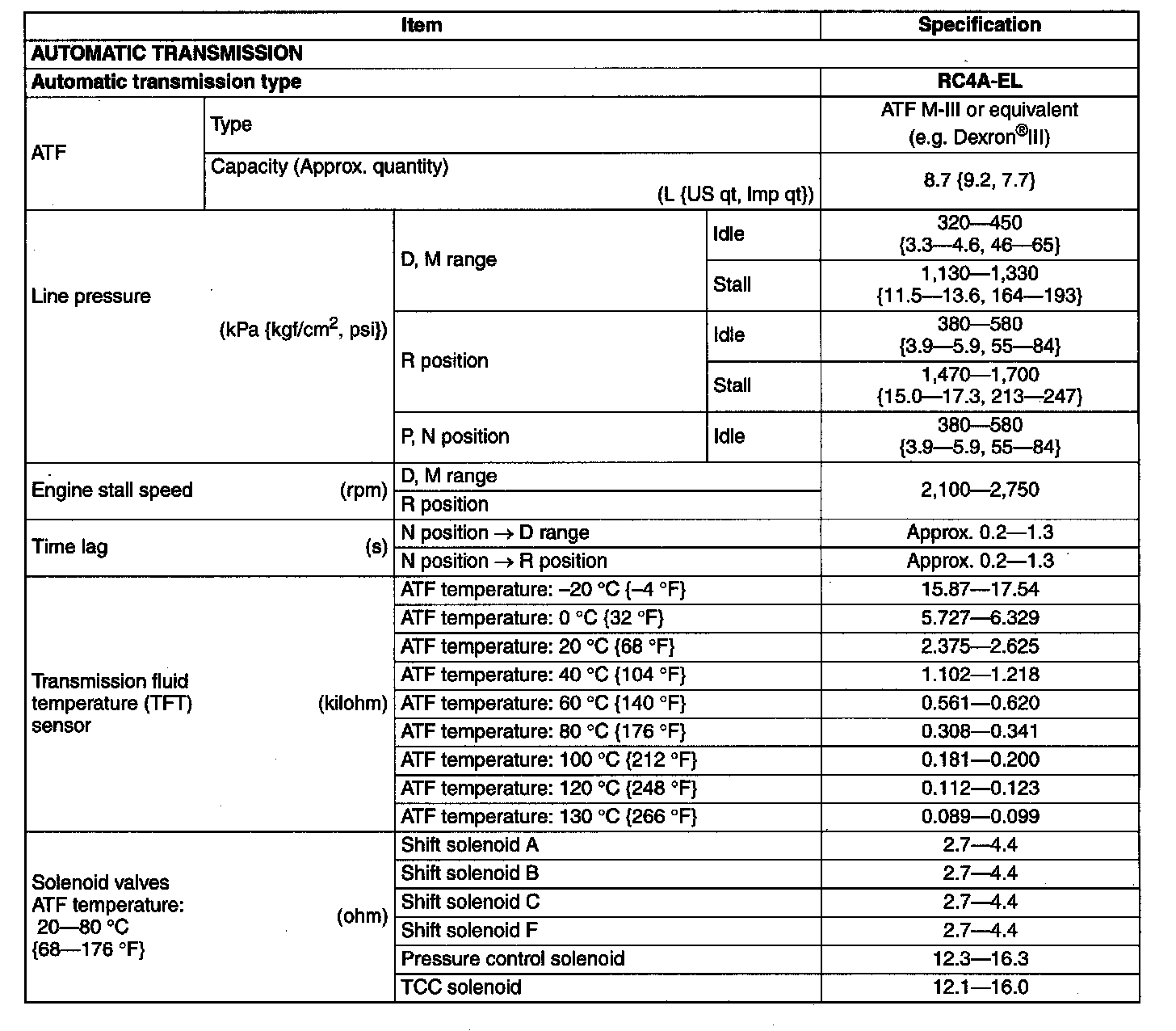

Transmission/Transaxle Technical Data

TRANSMISSION/TRANSAXLE TECHNICAL DATA (Part 2):




TRANSMISSION/TRANSAXLE TECHNICAL DATA (Part 3):
