System Specifications

ENGINE TECHNICAL DATA

Engine Technical Data (part 1):

Engine Technical Data (part 2):

Engine Technical Data (part 3):

Engine Technical Data (part 4):

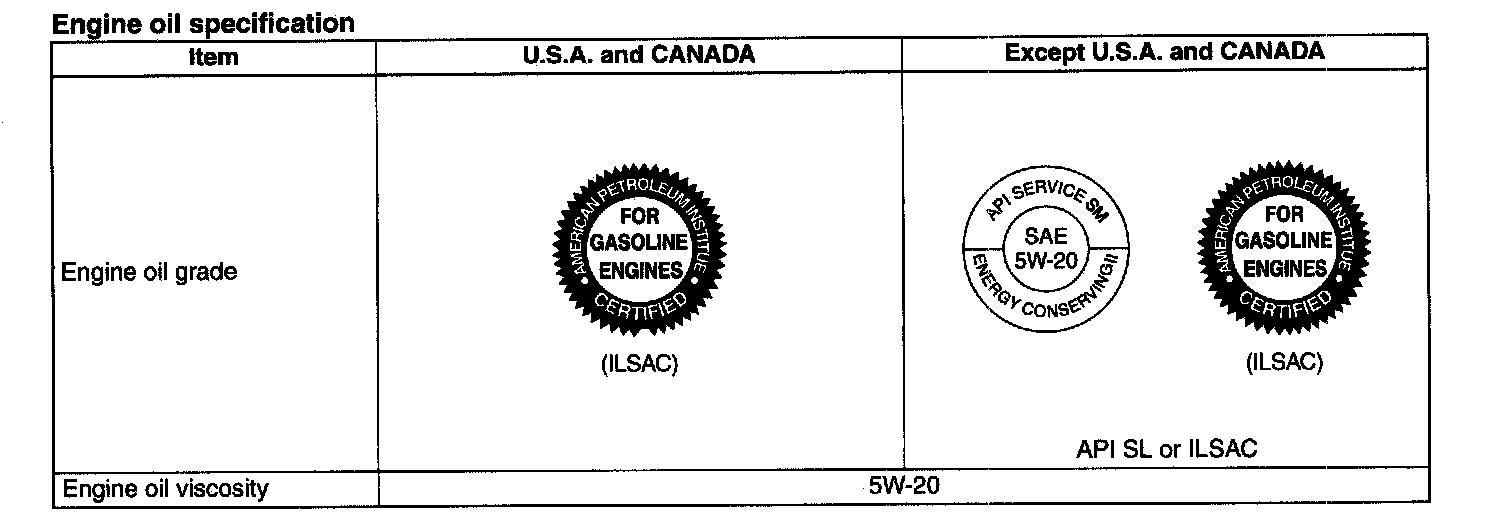

Engine oil specification

Engine Oil Specification:

Compression pressure

Standard 830 kPa {8.5 kgf/cm2, 120 psi} [250 rpm]
Minimum 680 kPa {6.9 kgf/cm2, 98.6 psi} [250 rpm]
Standard difference in chambers Within 150 kPa {1.5 kgf-cm2, 21.8 psi}
Standard difference in rotors Within 100 kPa {1.0 kgf-cm2, 14.5 psi}
