Pinpoint Test 10: The Remote Keyless Entry Transmitter Has Poor Range Performance

PINPOINT TEST 10: THE REMOTE KEYLESS ENTRY TRANSMITTER HAS POOR RANGE PERFORMANCE

Normal Operation
The integrated keyhead transmitter (IKT) sends a radio signal to the smart junction box (SJB) based on the user selected IKT button. The SJB then carries out the selected action.

Possible Causes
- IKT
- Aftermarket systems
- High power devices
- TV/radio transmission towers
- SJB

Diagnostic Procedure

NOTE:
- All IKTs must be present to begin diagnosis of the RKE system.
- Aftermarket or dealer-installed systems may adversely affect RKE system operation. These systems must be disconnected before diagnosing any RKE concerns.

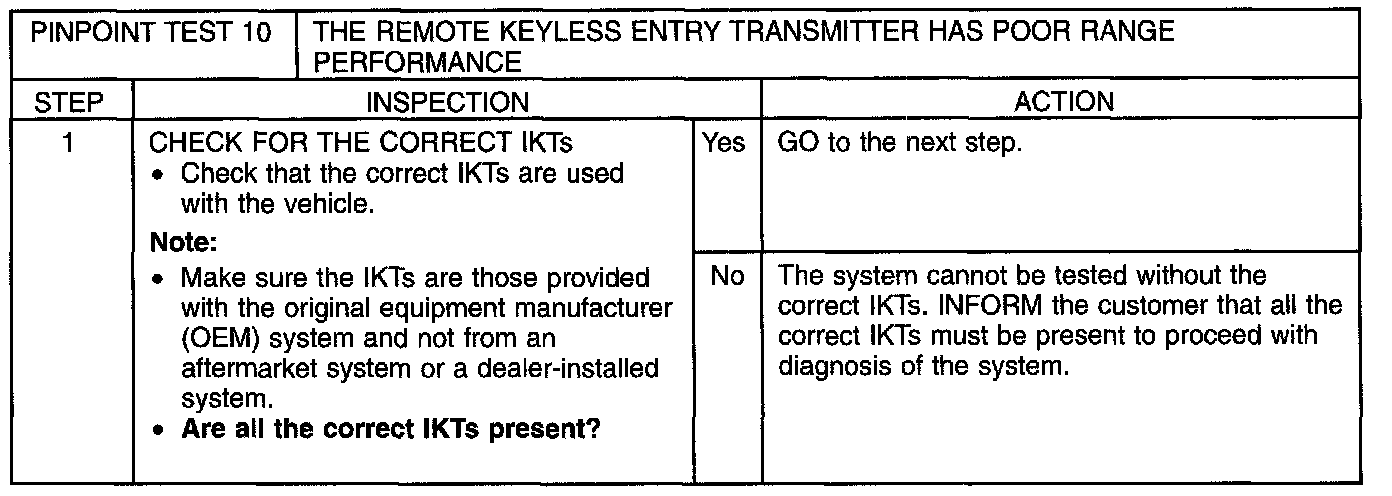

Step 1:

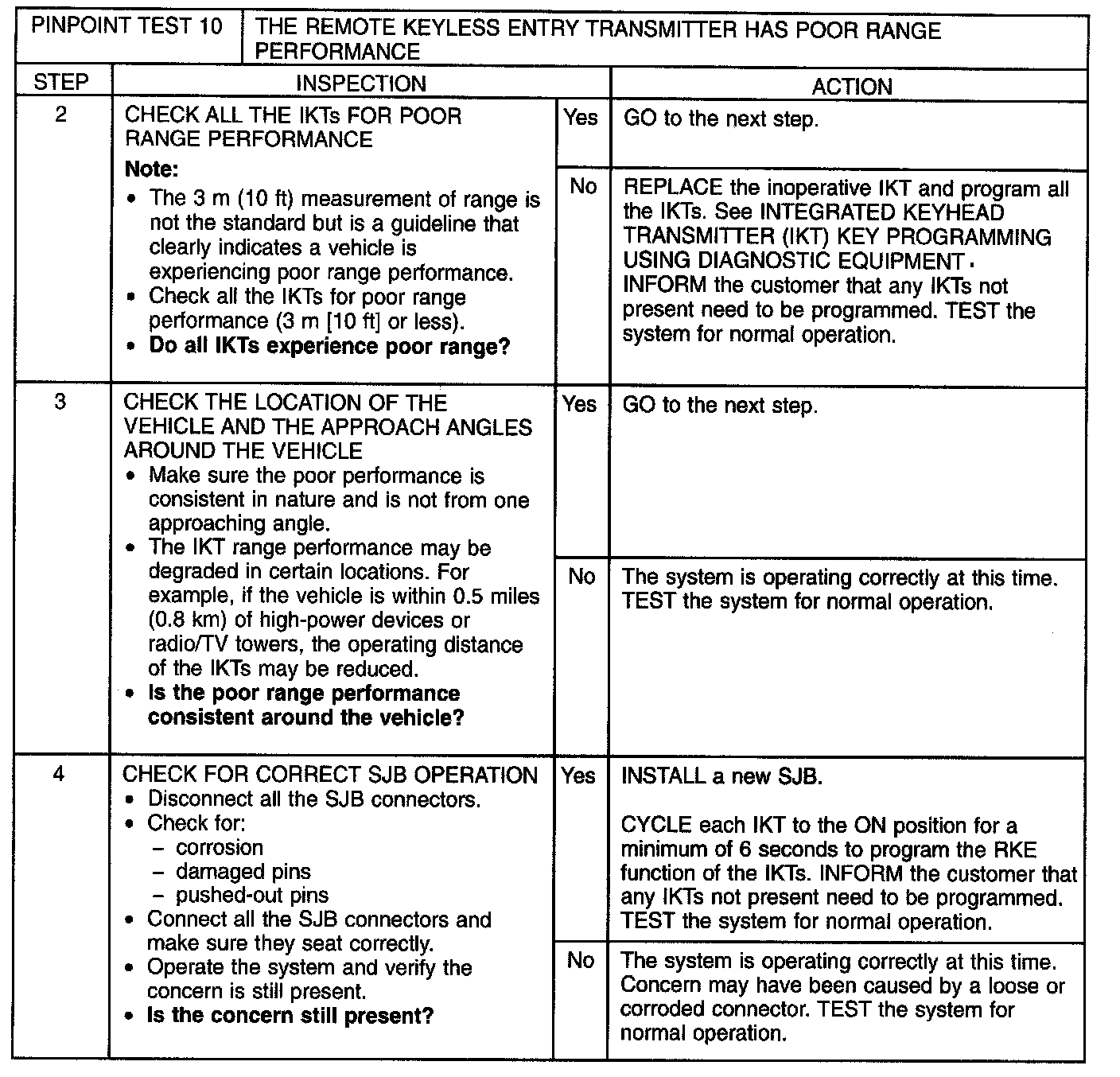

Step 2-Step 4:
