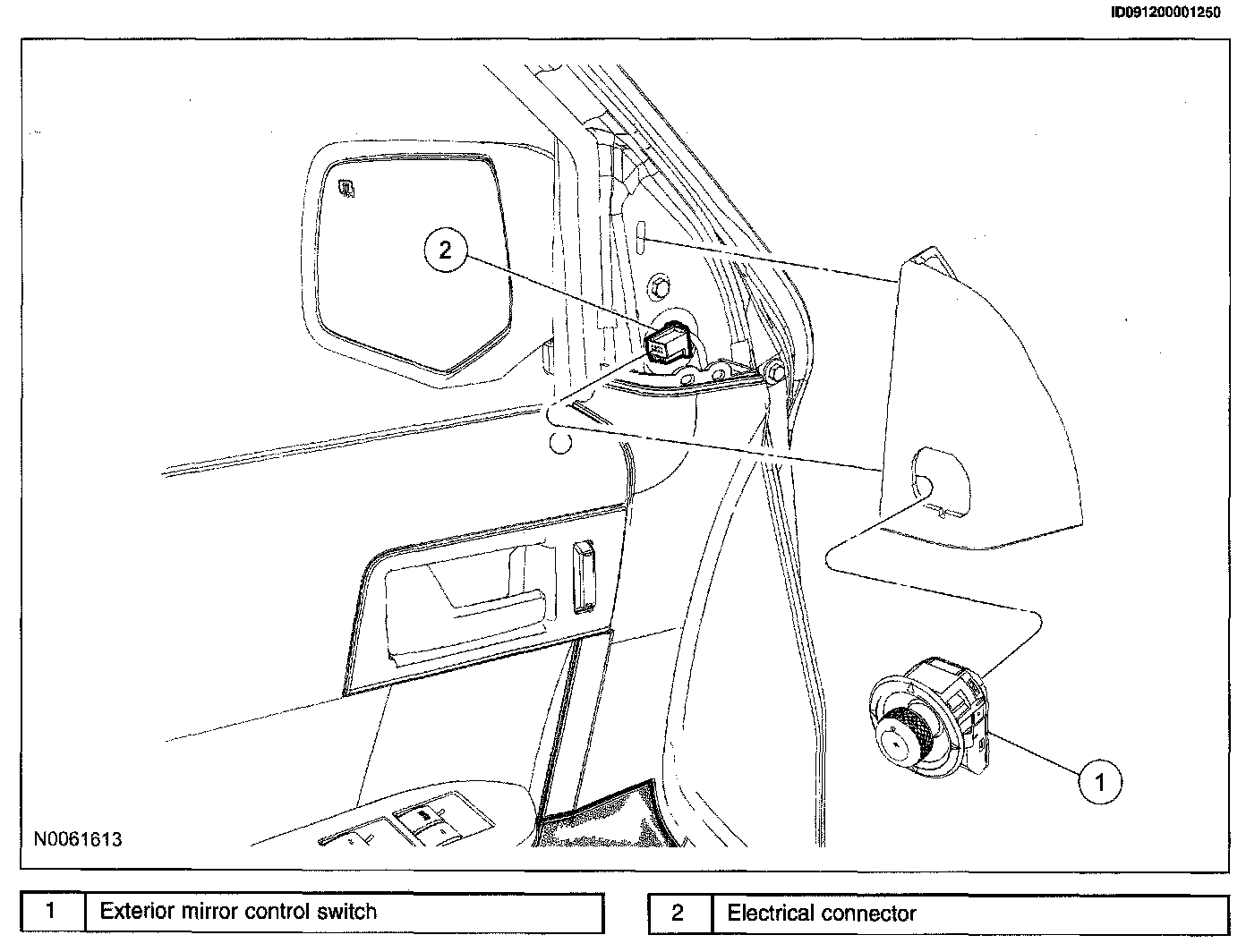

Exterior Mirror Control Switch Removal/Installation

EXTERIOR MIRROR CONTROL SWITCH REMOVAL/INSTALLATION






1. Remove the LH sail panel.
- Disconnect the electrical connector.






2. Remove the exterior mirror control switch.
- Press the 2 retaining tabs.

3. To install, reverse the removal procedure.
