Forward Crash Sensor

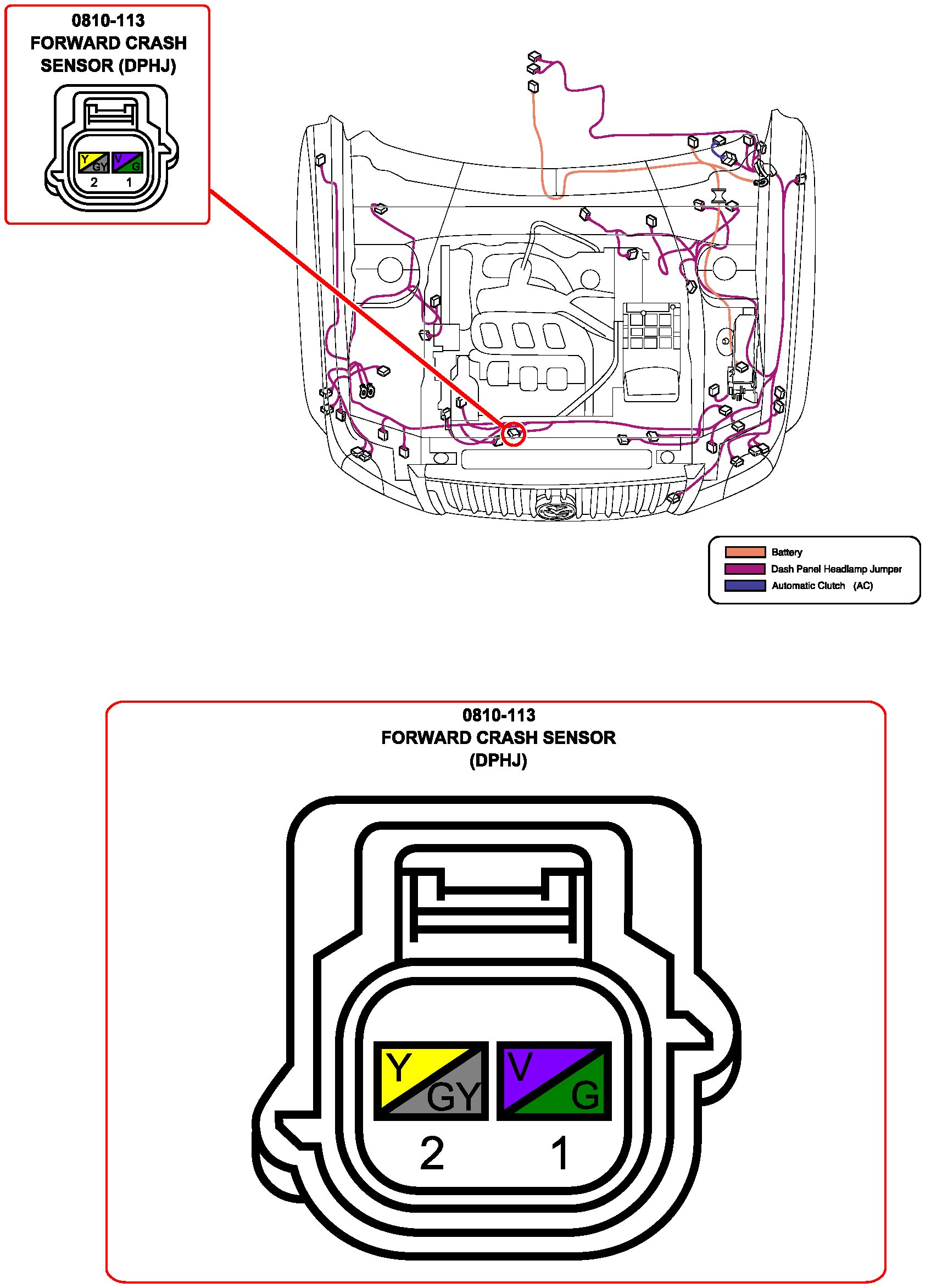

Forward Crash Sensor:

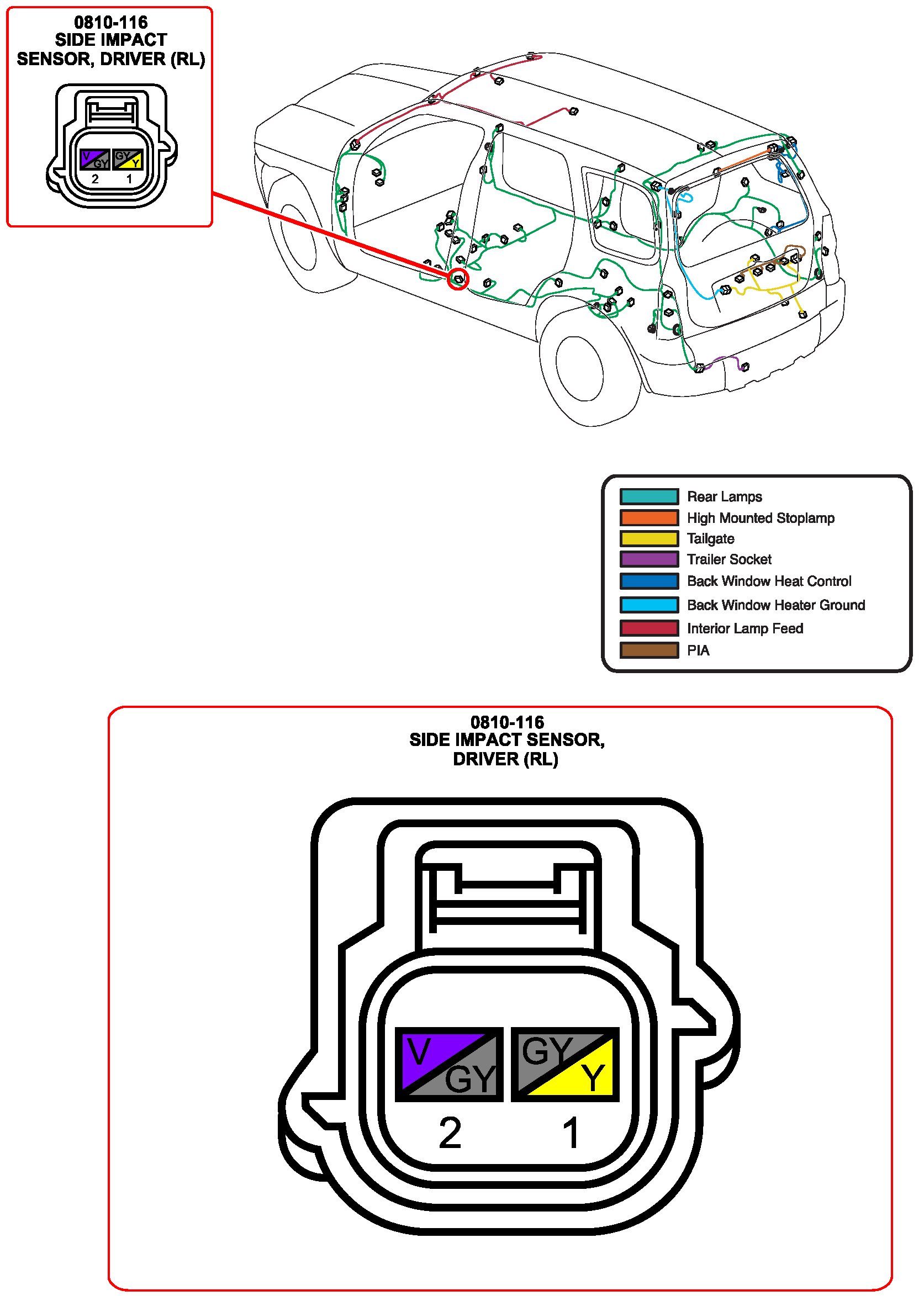

Side Impact Sensor, Driver:

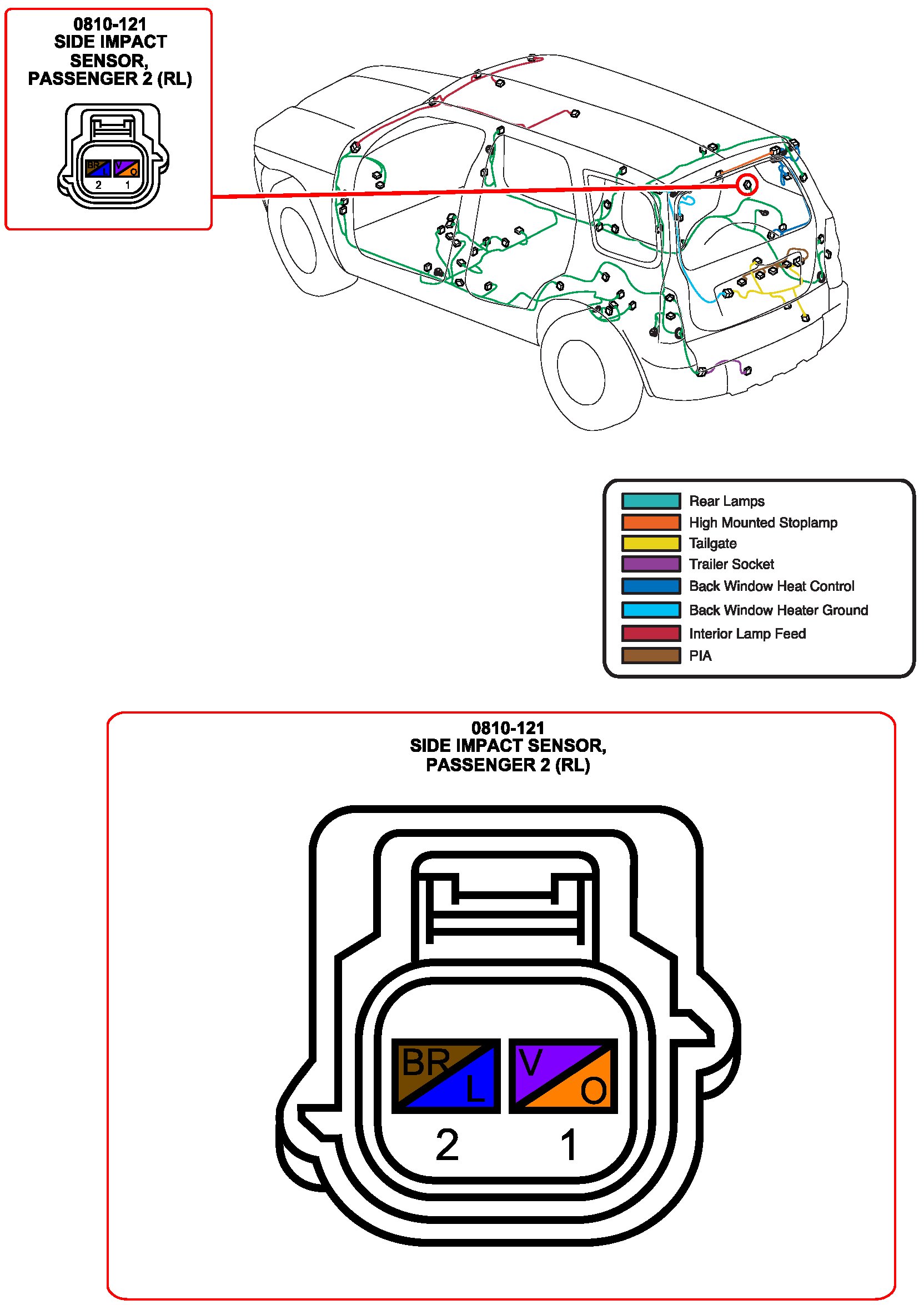

Side Impact Sensor, Passenger 2:



Side Impact Sensor, Passenger 2:
