Electronic Brake Control Module

CONNECTOR END VIEWS - ANTI-LOCK BRAKE SYSTEM (ABS)

Connectors 0413-101:

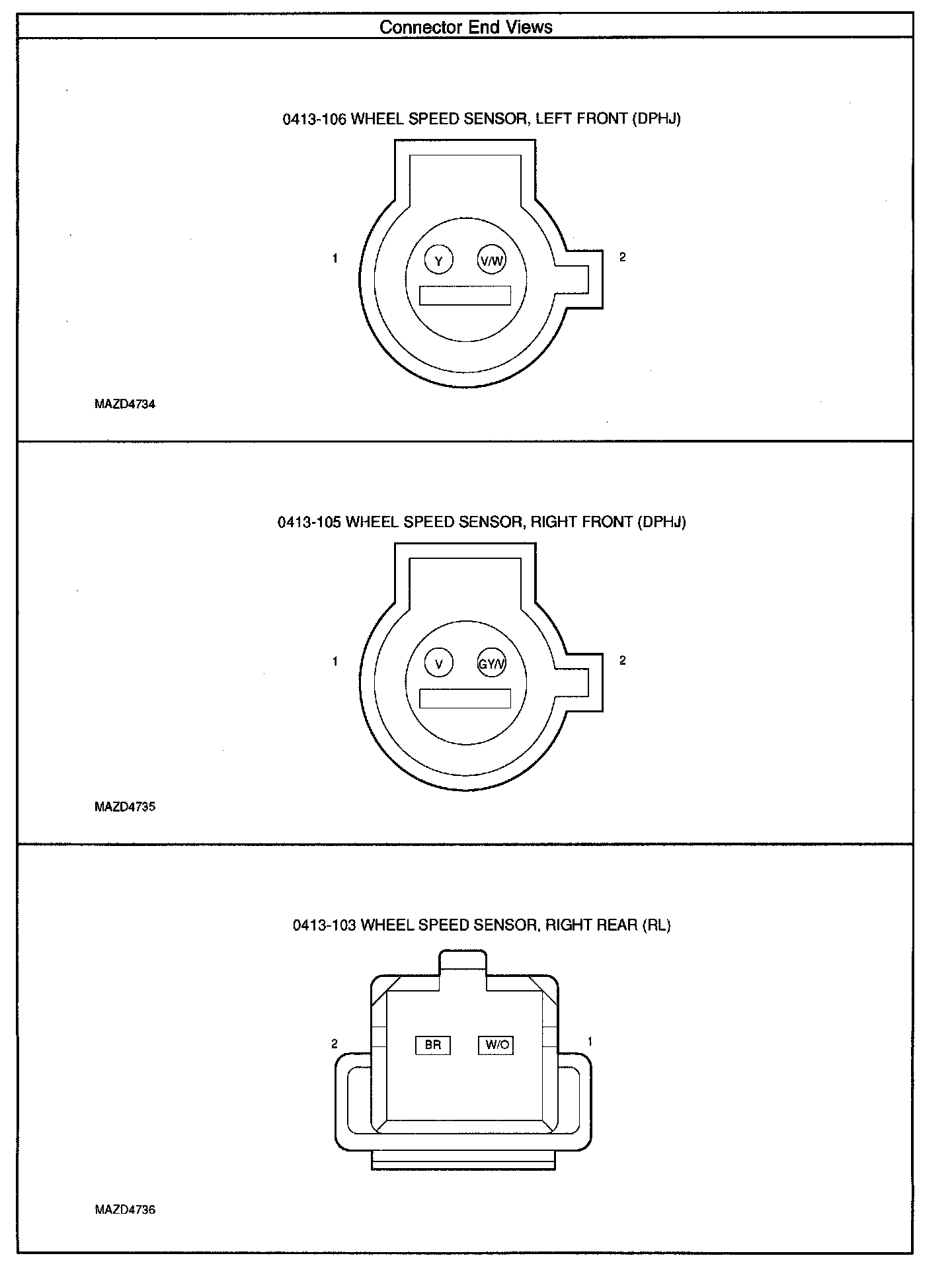

Connectors 0413-106, Connectors 0413-105, Connectors 0413-103:

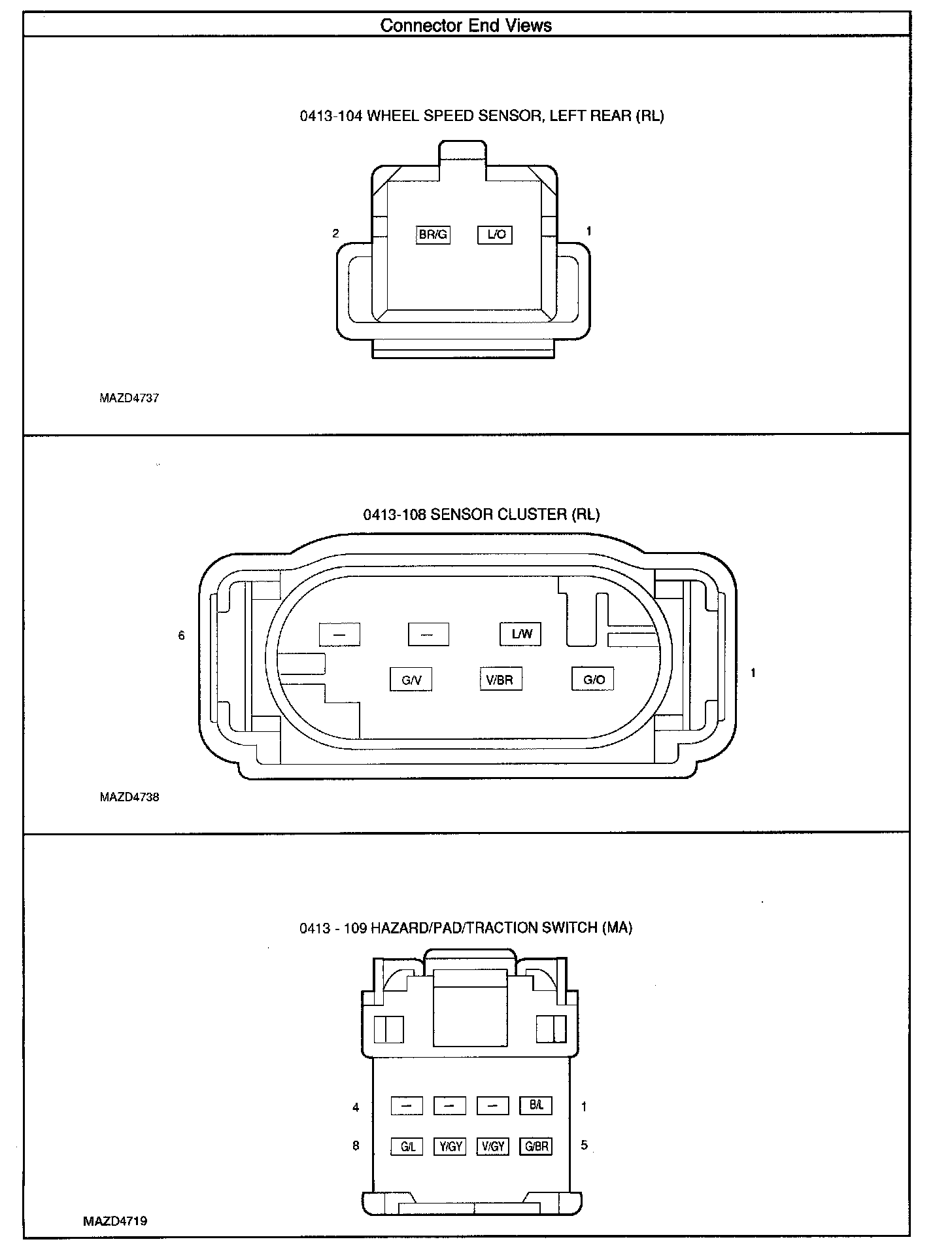

Connectors 0413-104, Connectors 0413-108, Connectors 0413-109:
