Battery

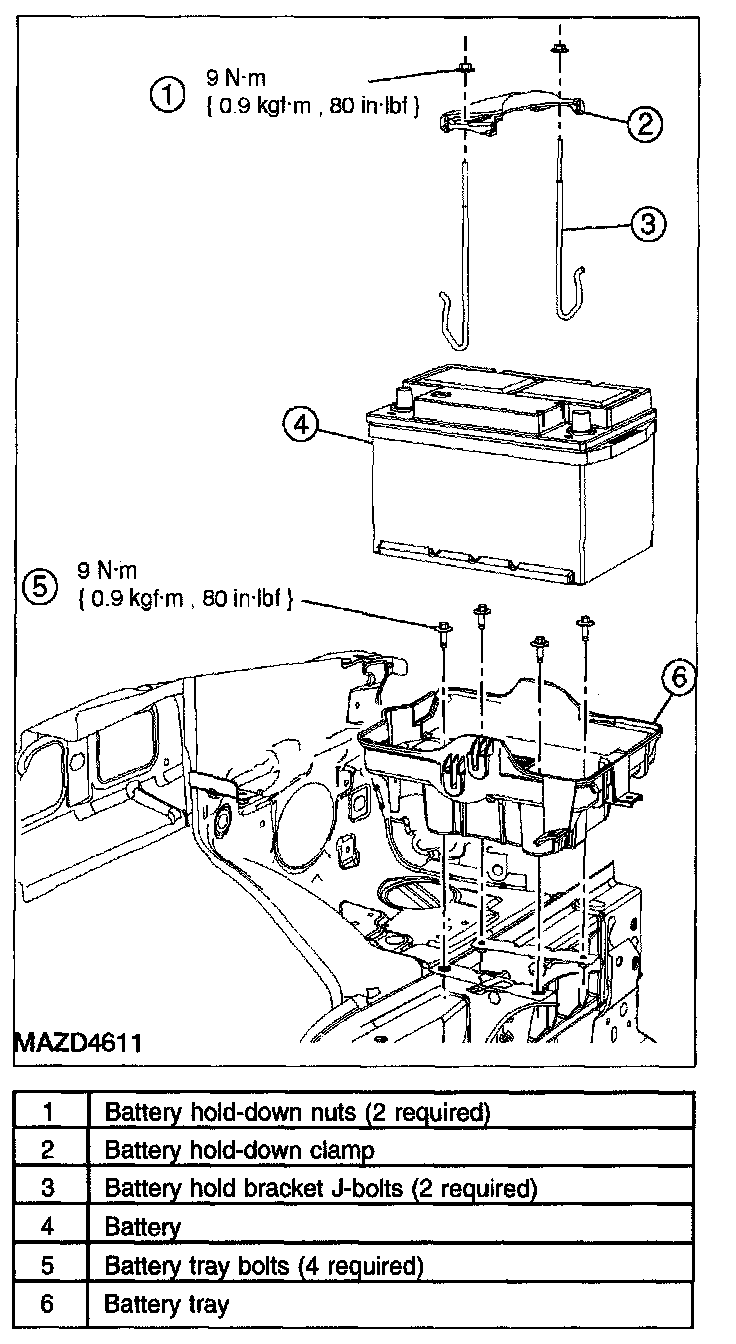

BATTERY AND BATTERY TRAY - EXPLODED VIEW
1.
For additional information, see the procedures in this section.
