Engine Lubrication

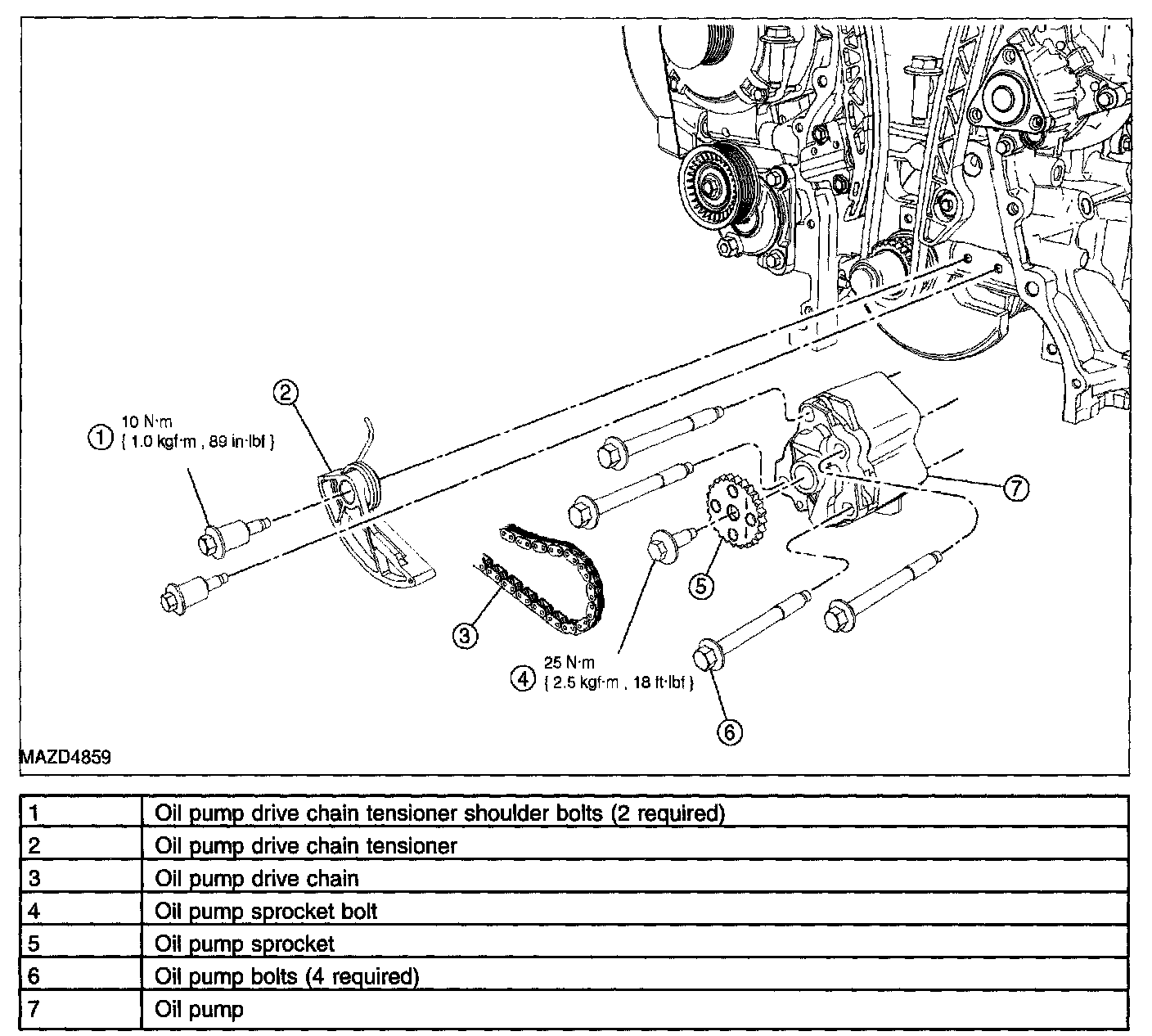

ENGINE LUBRICATION COMPONENTS - 2.3L EXPLODED VIEW

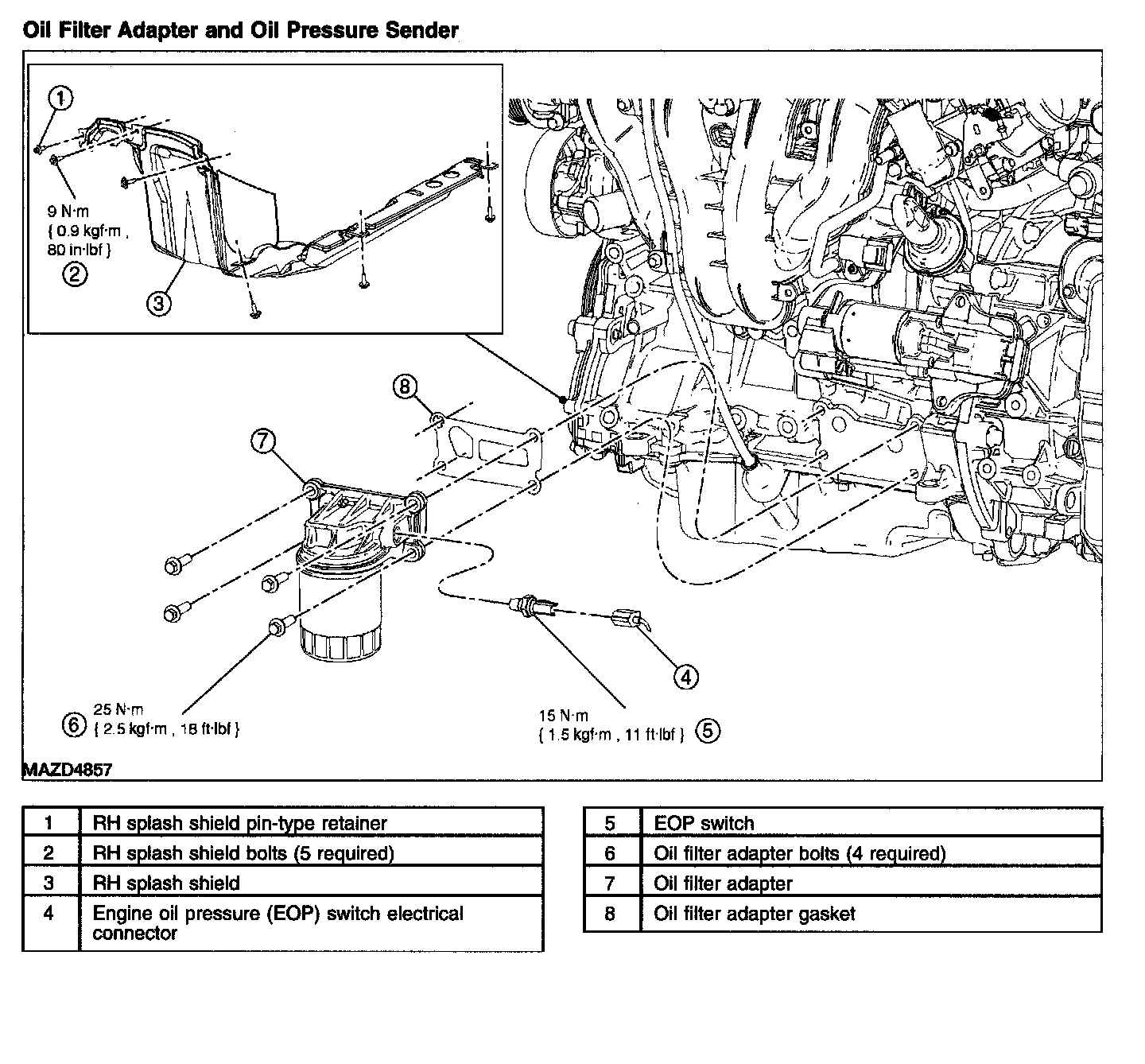

Oil Filter Adapter and Oil Pressure Sender

Oil Filter Adapter and Oil Pressure Sender:

Note
^ Automatic transaxle shown, manual transaxle similar.

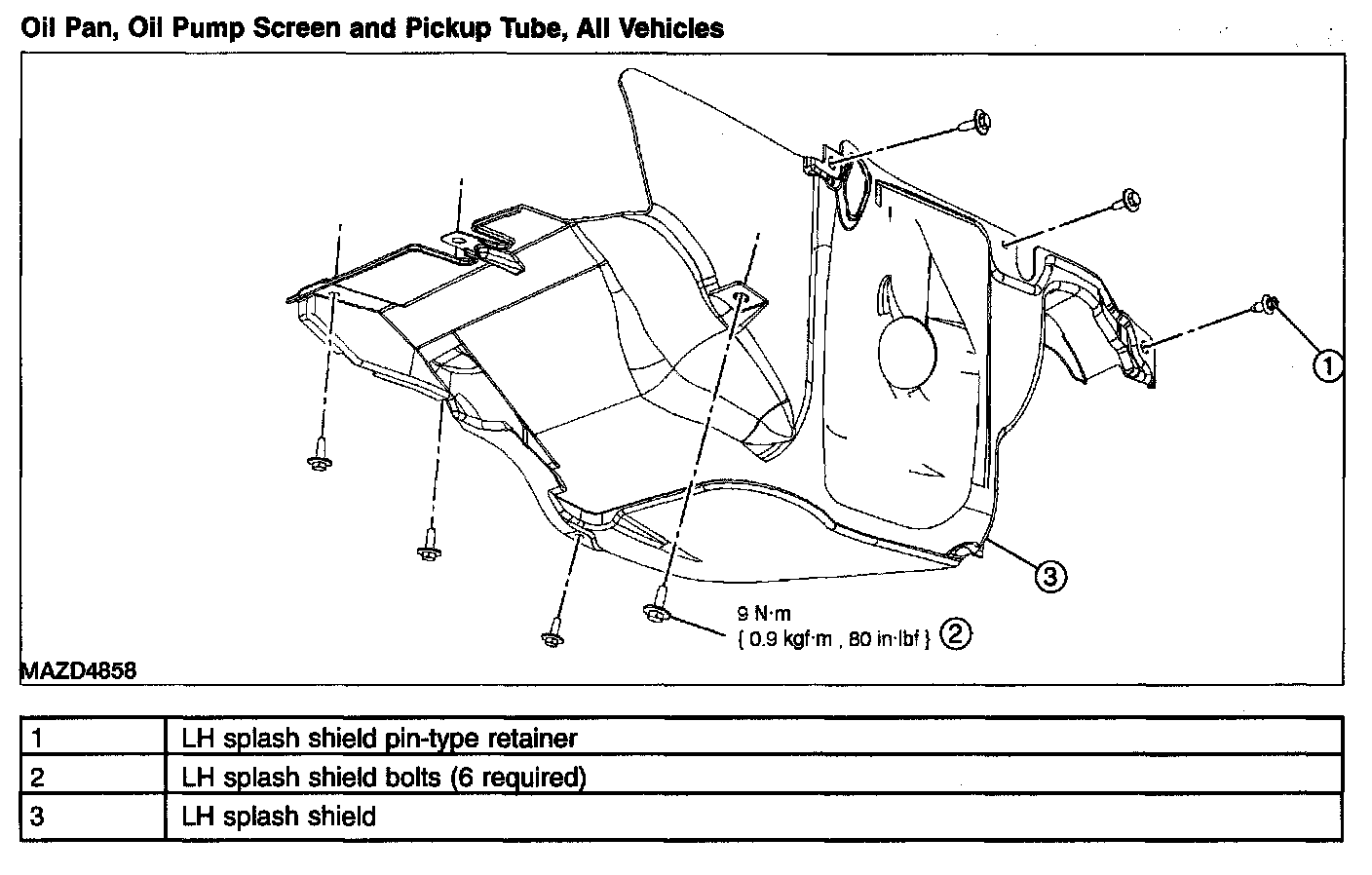

Oil Pan, Oil Pump Screen and Pickup Tube, All Vehicles

Oil Pan, Oil Pump Screen and Pickup Tube, All Vehicles:

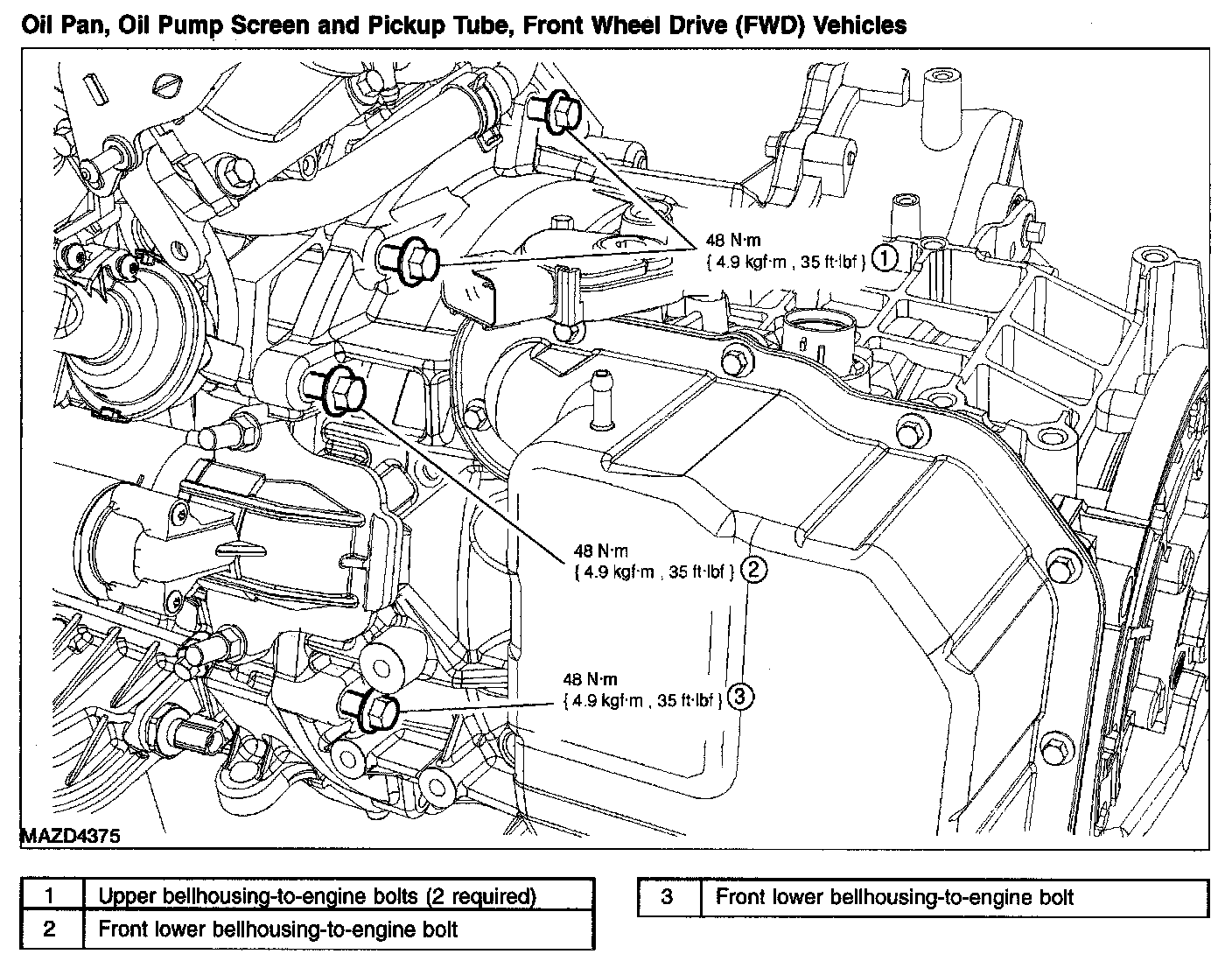

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheel Drive (FWD) Vehicles

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheel Drive (FWD) Vehicles:

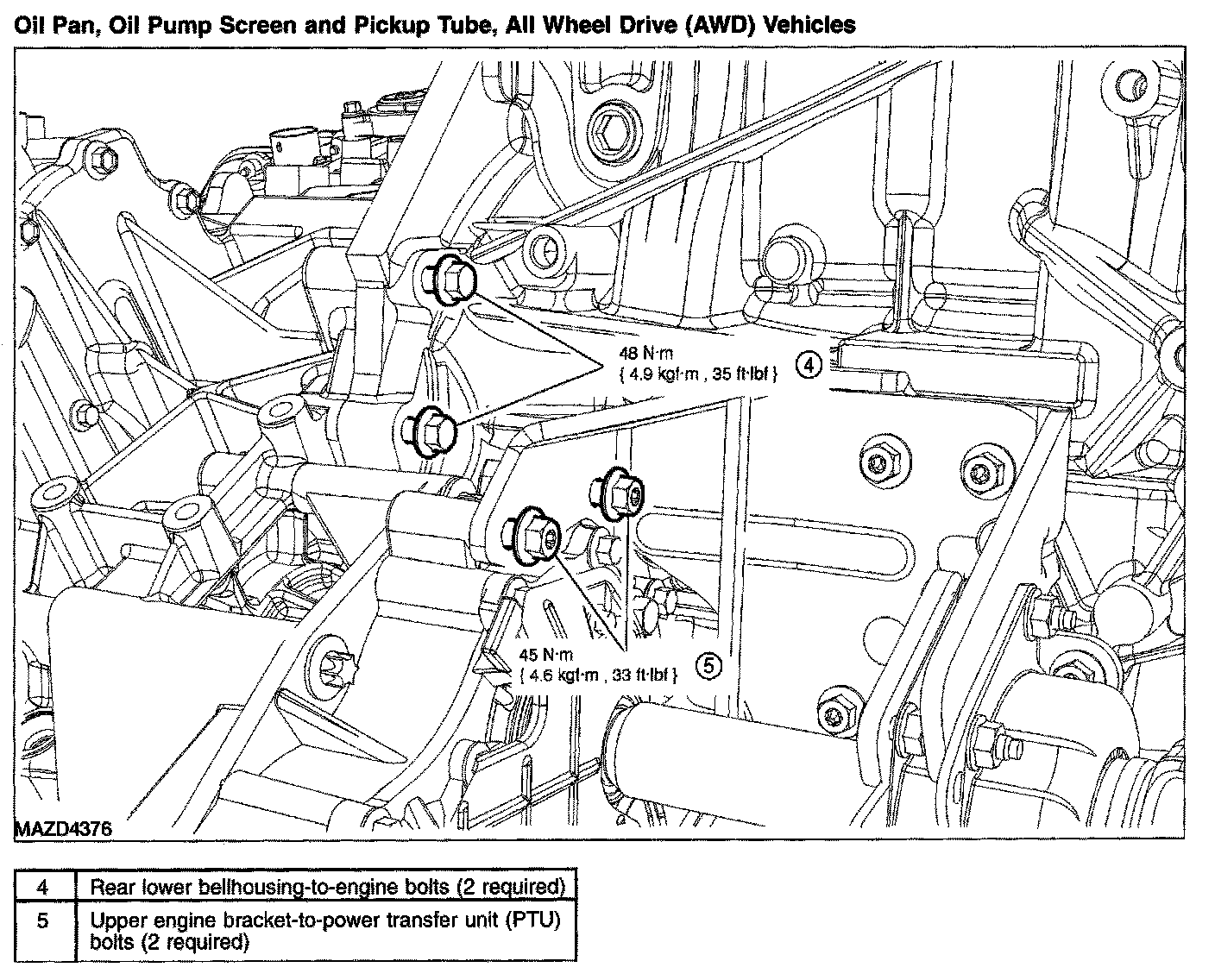

Oil Pan, Oil Pump Screen and Pickup Tube, All Wheel Drive (AWD) Vehicles

Oil Pan, Oil Pump Screen and Pickup Tube, All Wheel Drive (AWD) Vehicles:

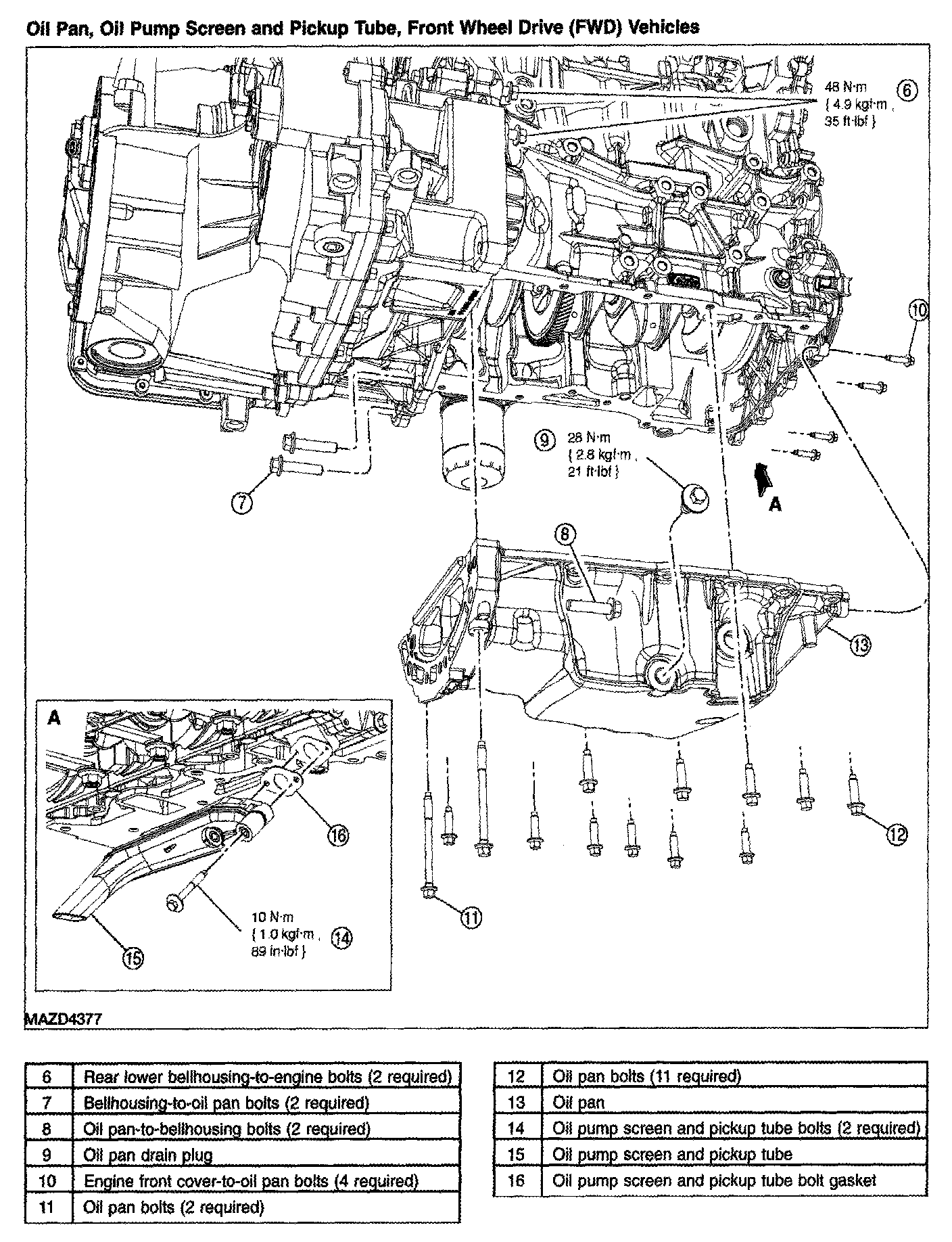

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheal Drive (FWD) Vehicles

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheal Drive (FWD) Vehicles (Part 1):

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheal Drive (FWD) Vehicles (Part 2):
