Intake Air System Components - Exploded View

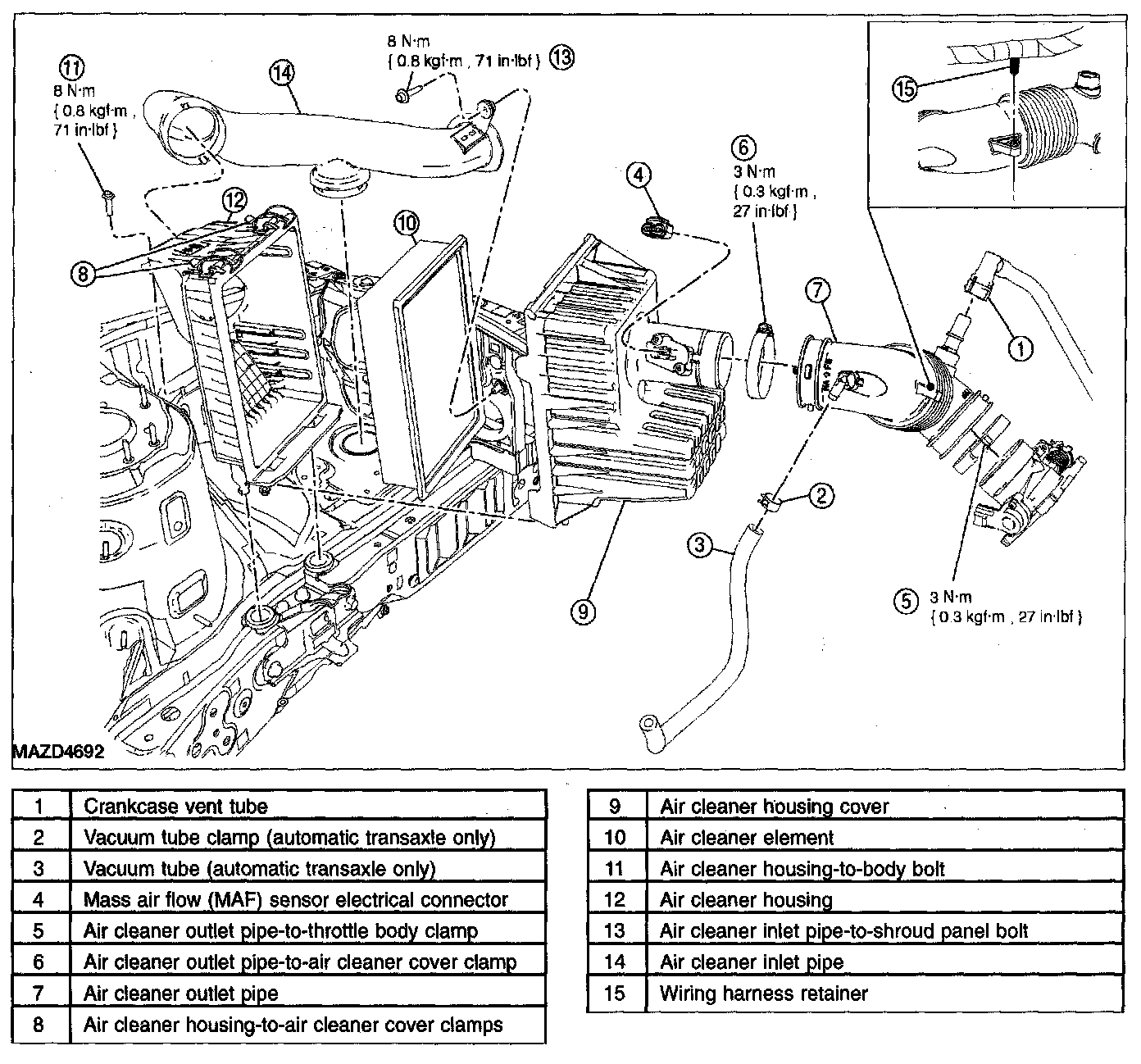

INTAKE AIR SYSTEM - 2.3L EXPLODED VIEW

Intake Air System-2.3L Exploded View:






1. For additional information, see the procedures.
