Climate Control Assembly Removal/Installation

CLIMATE CONTROL ASSEMBLY REMOVAL/INSTALLATION









1. Remove the instrument panel center finish panel.

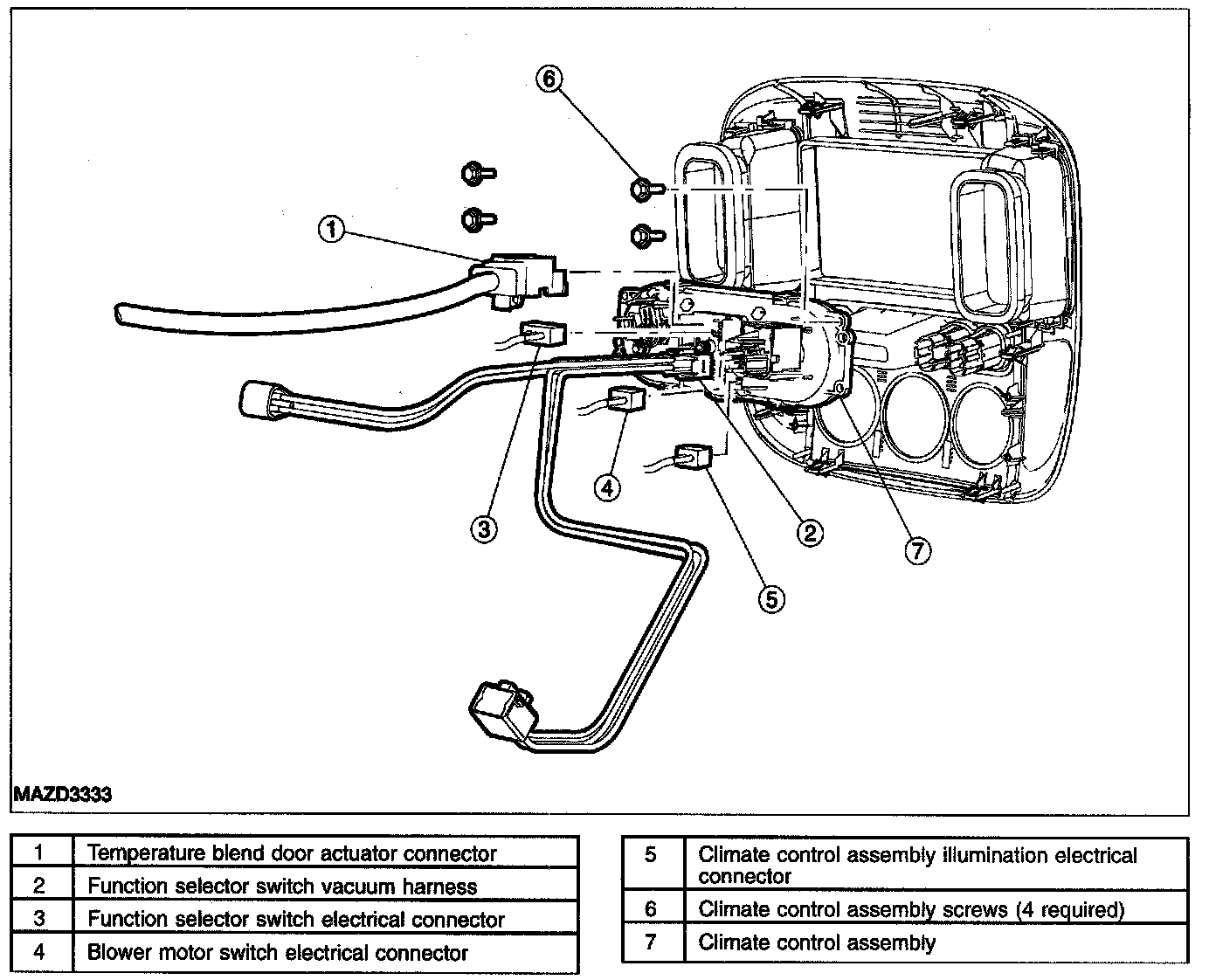

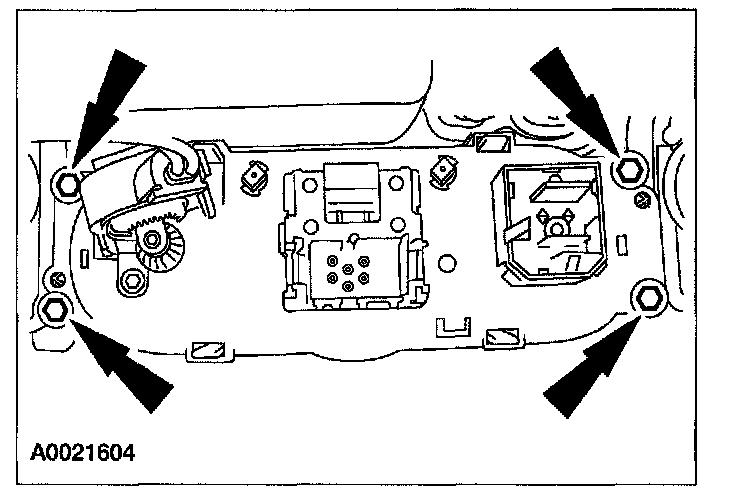

2. Remove the four screws and the climate control assembly.
3. To install, reverse the removal procedure.
