Climate Control Module Removal/Installation

CLIMATE CONTROL MODULE REMOVAL/INSTALLATION




1. Remove the center instrument panel finish panel.

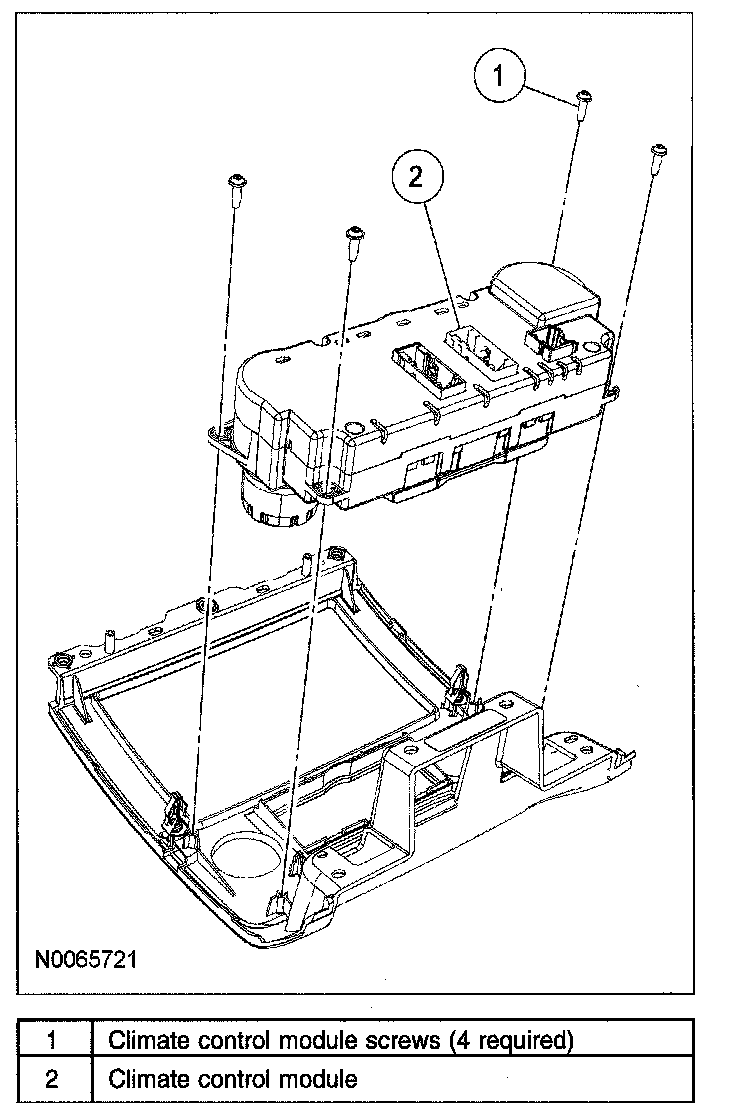

2. Remove the 4 climate control module screws.
3. Remove the climate control module.
4. To install, reverse the removal procedure.
