Air Flow Meter/Sensor: Service and Repair

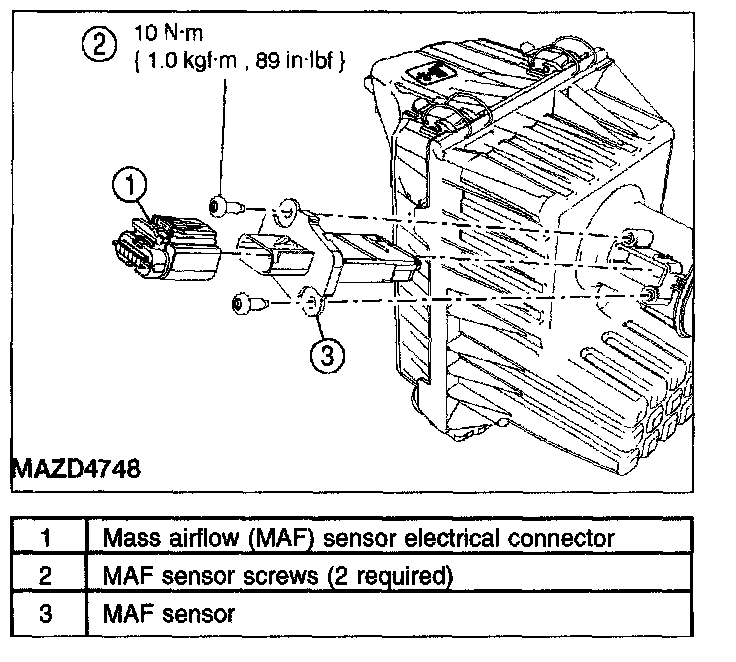

MASS AIR FLOW (MAF) SENSOR - 2.3L REMOVAL/INSTALLATION




1. Disconnect the mass air flow (MAF) sensor electrical connector.
2. Remove the 2 screws and the MAF sensor.
- To install, tighten to 10 N.m {1.0 kgf.m, 89 in.lbf}.

3. To install, reverse the removal procedure.
