Knock Sensor: Testing and Inspection

KNOCK SENSOR (KS) - 2.3L REMOVAL/INSTALLATION

1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING.




2. Remove the intake manifold.

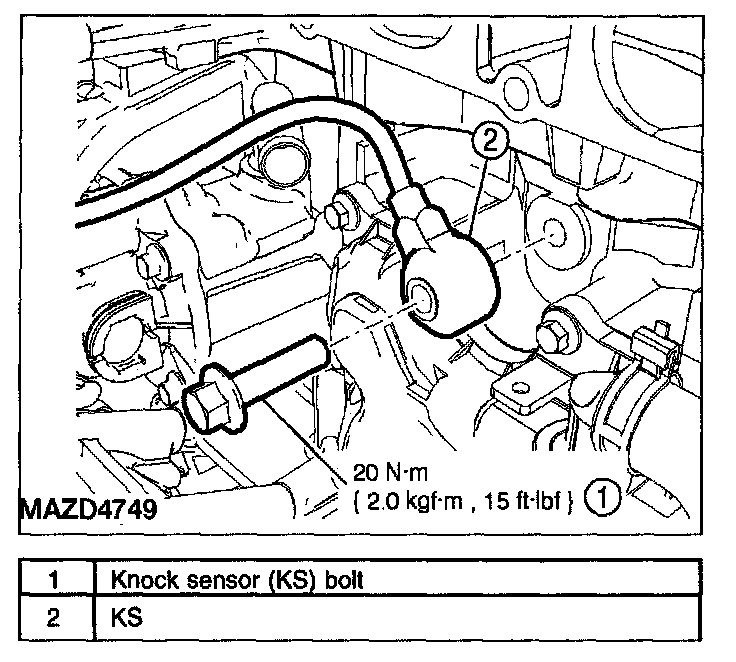

3. Remove the bolt and the knock sensor (KS).
- To install, tighten to 20 N.m {2.0 kgf.m, 15 ft.lbf}.

4. To install, reverse the removal procedure.
