Main Relay (Computer/Fuel System): Testing and Inspection

POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

NOTE: The IGN START/RUN and ground circuits, or the B+ and VPWR circuits may be reversed in the harness connector. Refer to the Wiring Diagrams for schematic and connector information.

POSSIBLE CAUSE
- Harness circuits: B+, IGN START/RUN, INJPWRM, ISP-R, PCMRC, VPWR and GND
- PCM power relay
- PCM

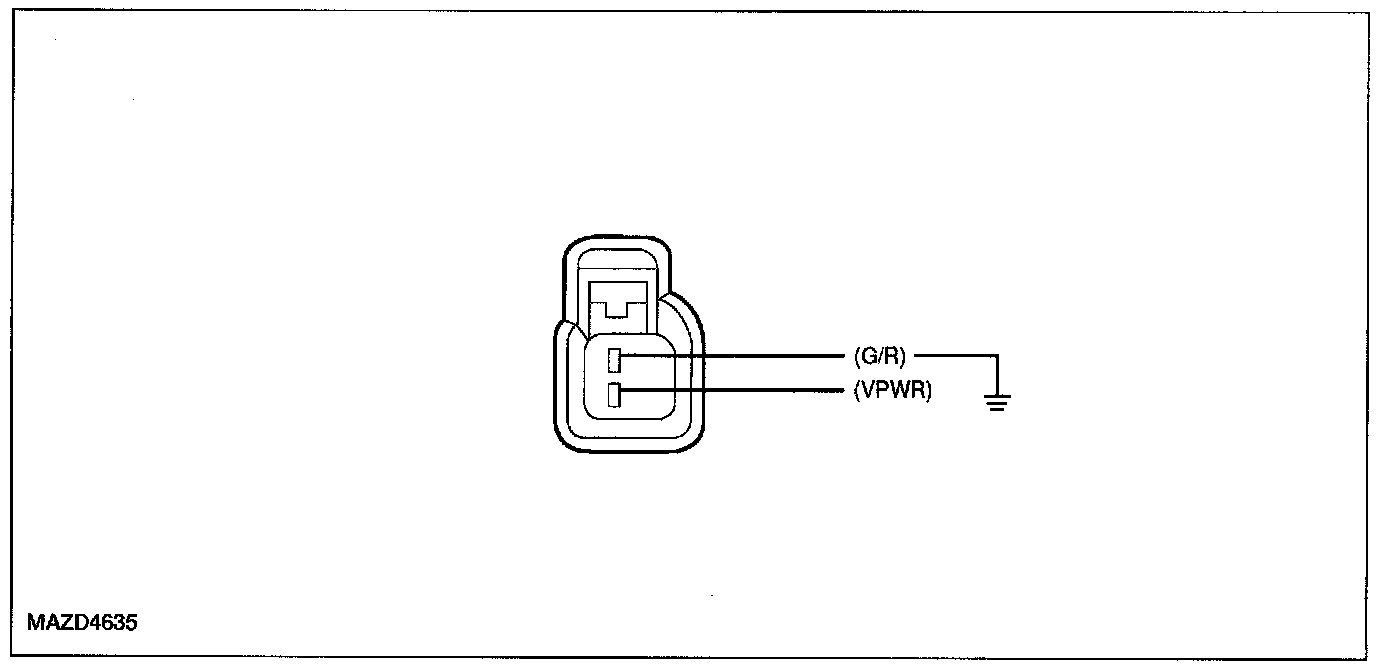

Injector (INJ) Connector

Step 1:

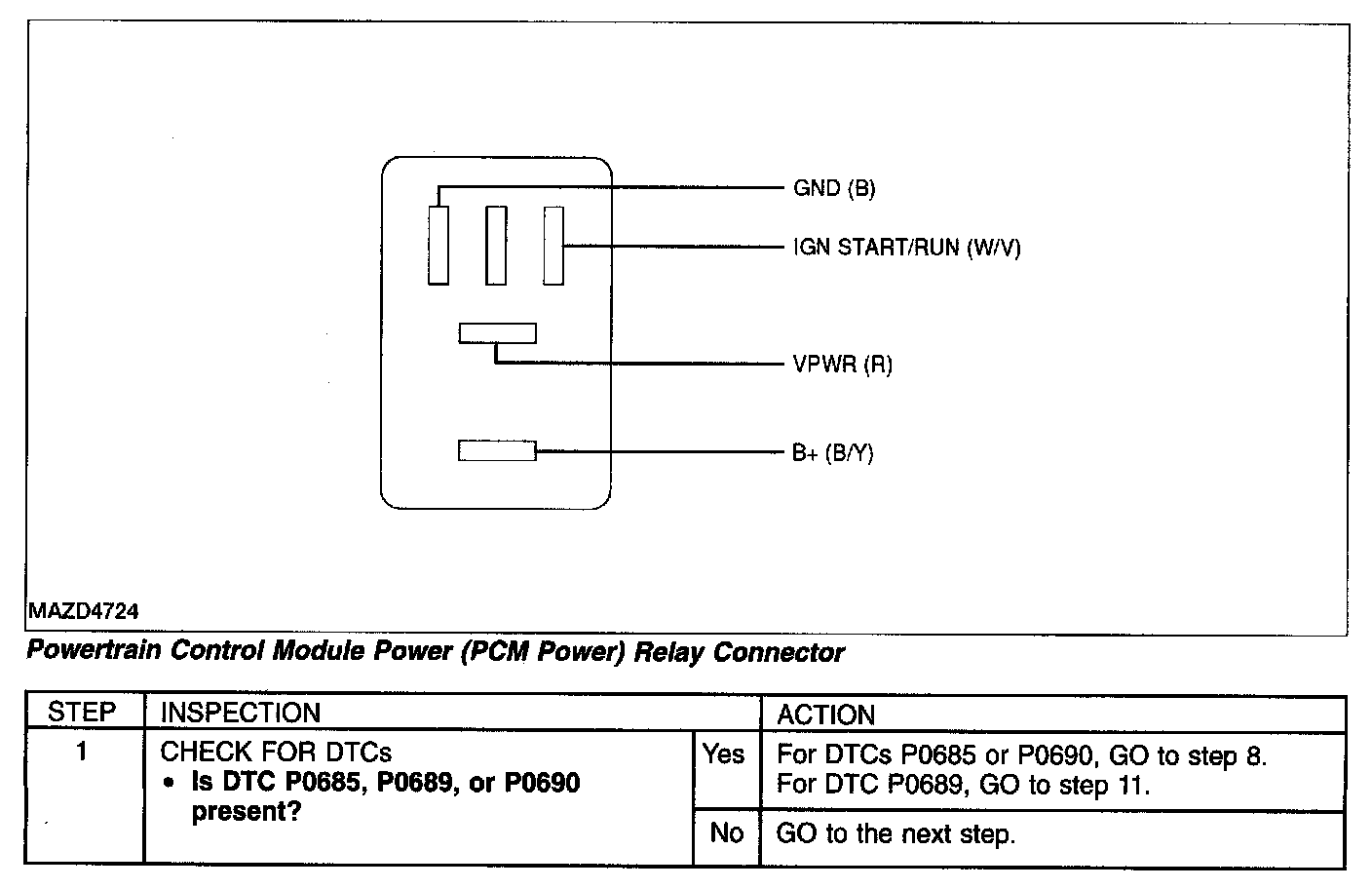

Powertrain Control Module Power (PCM Power) Relay Connector

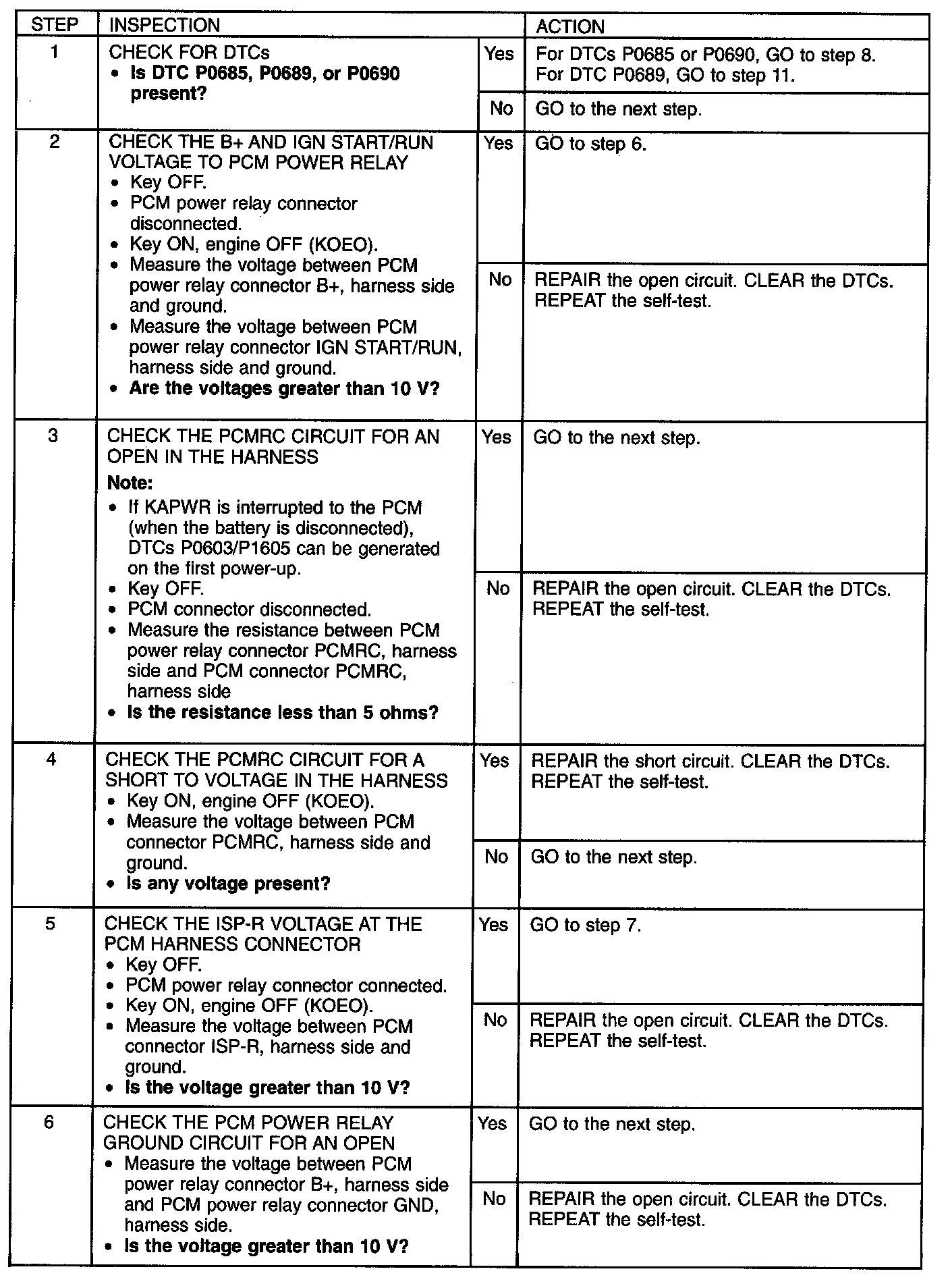

Step 1-Step 6:

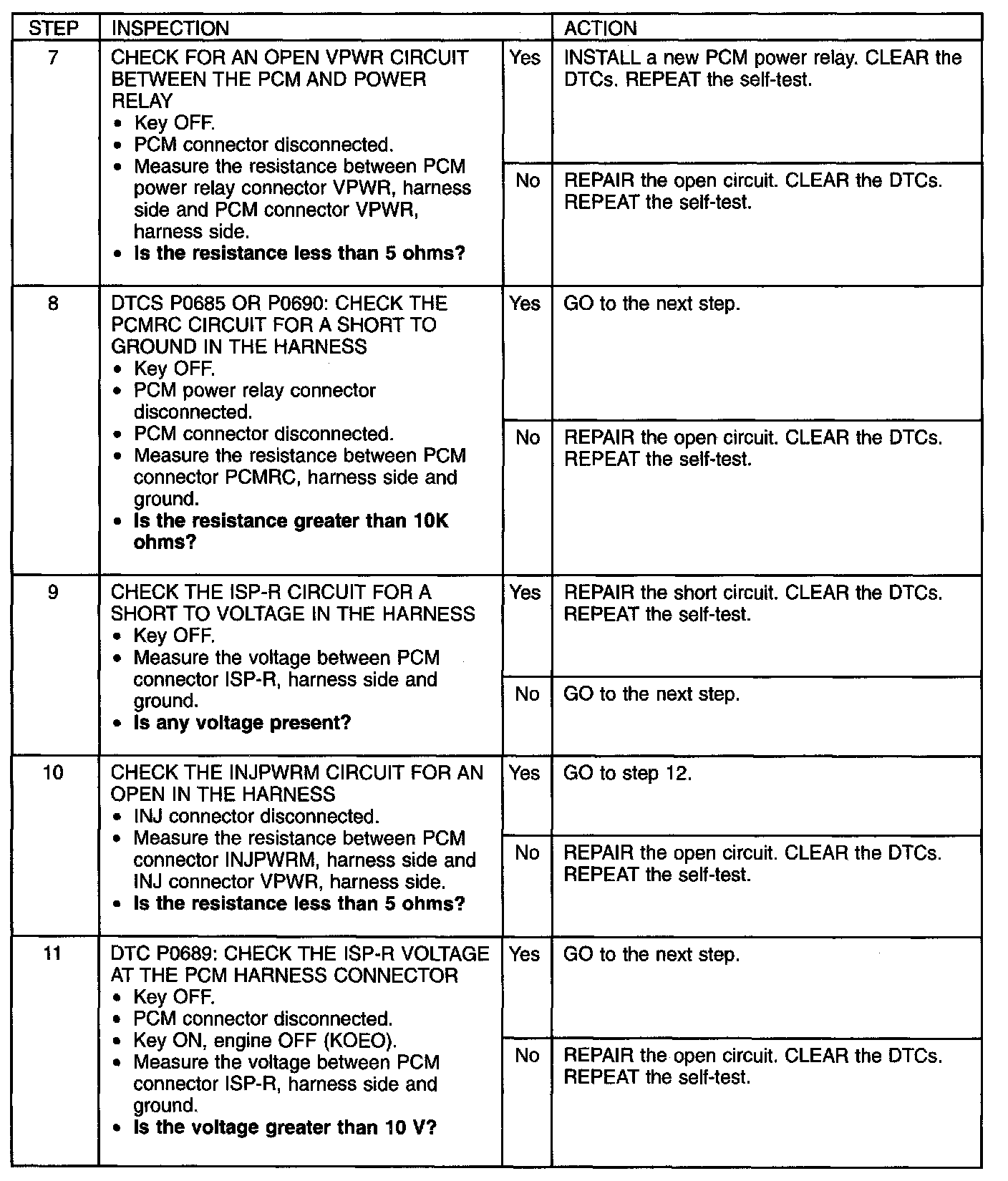

Step 7-Step 11:

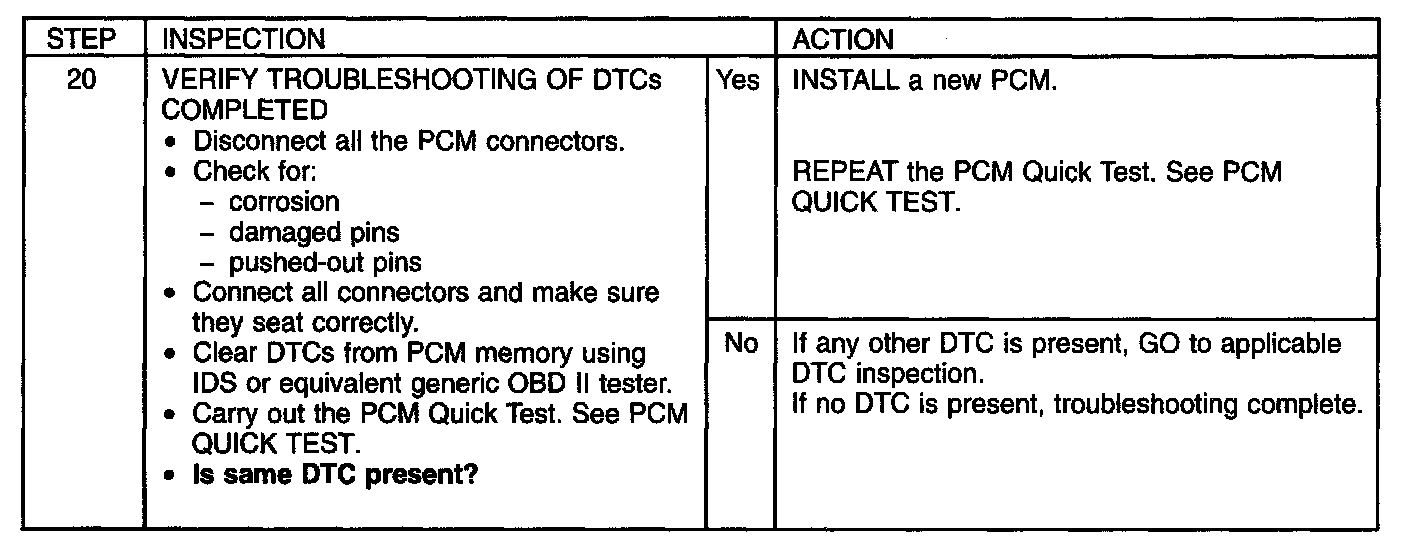

Step 20:
