PID/Data Monitor Reference Value

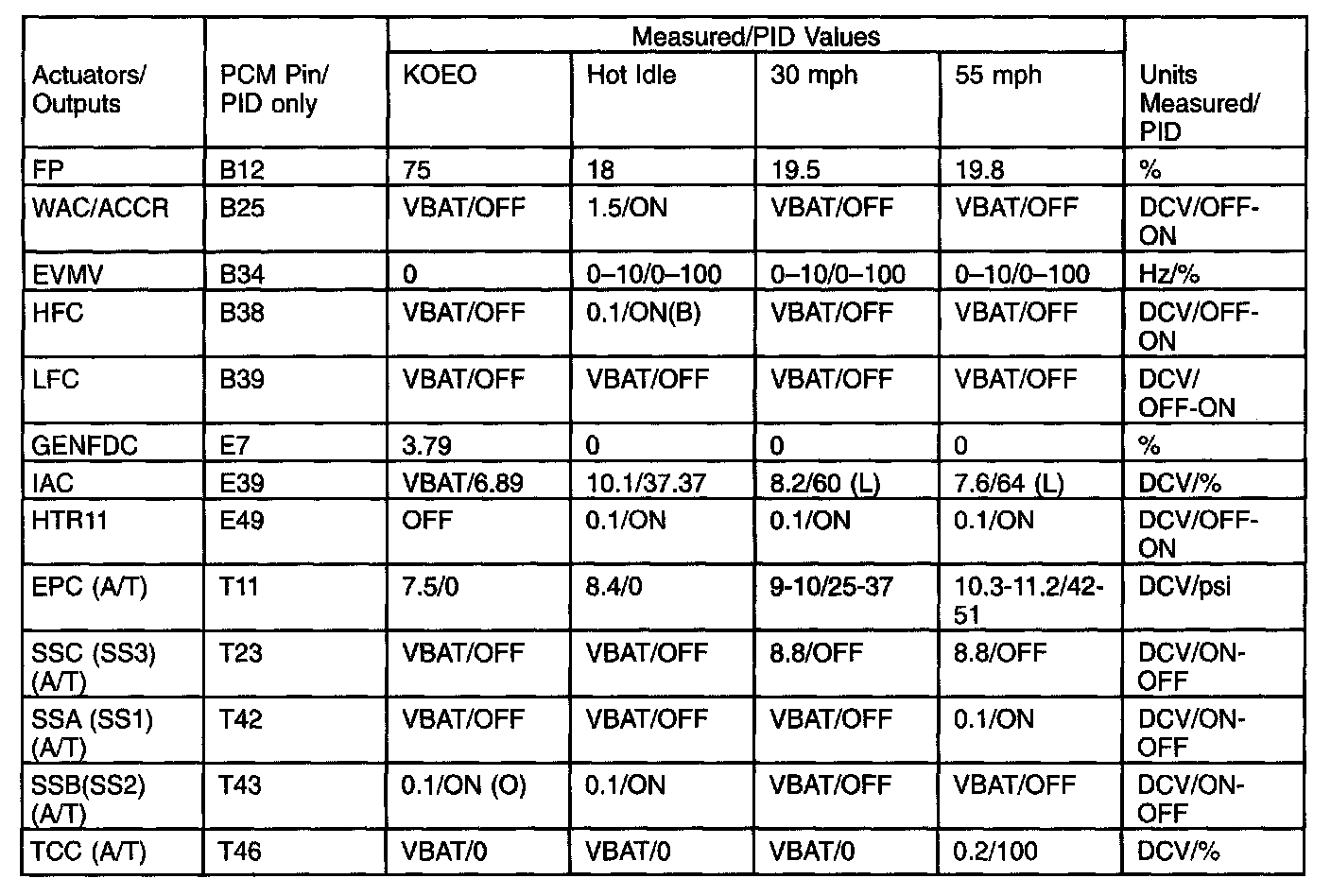

PID/Data Monitor Reference Value (2.3L) (Part 1):

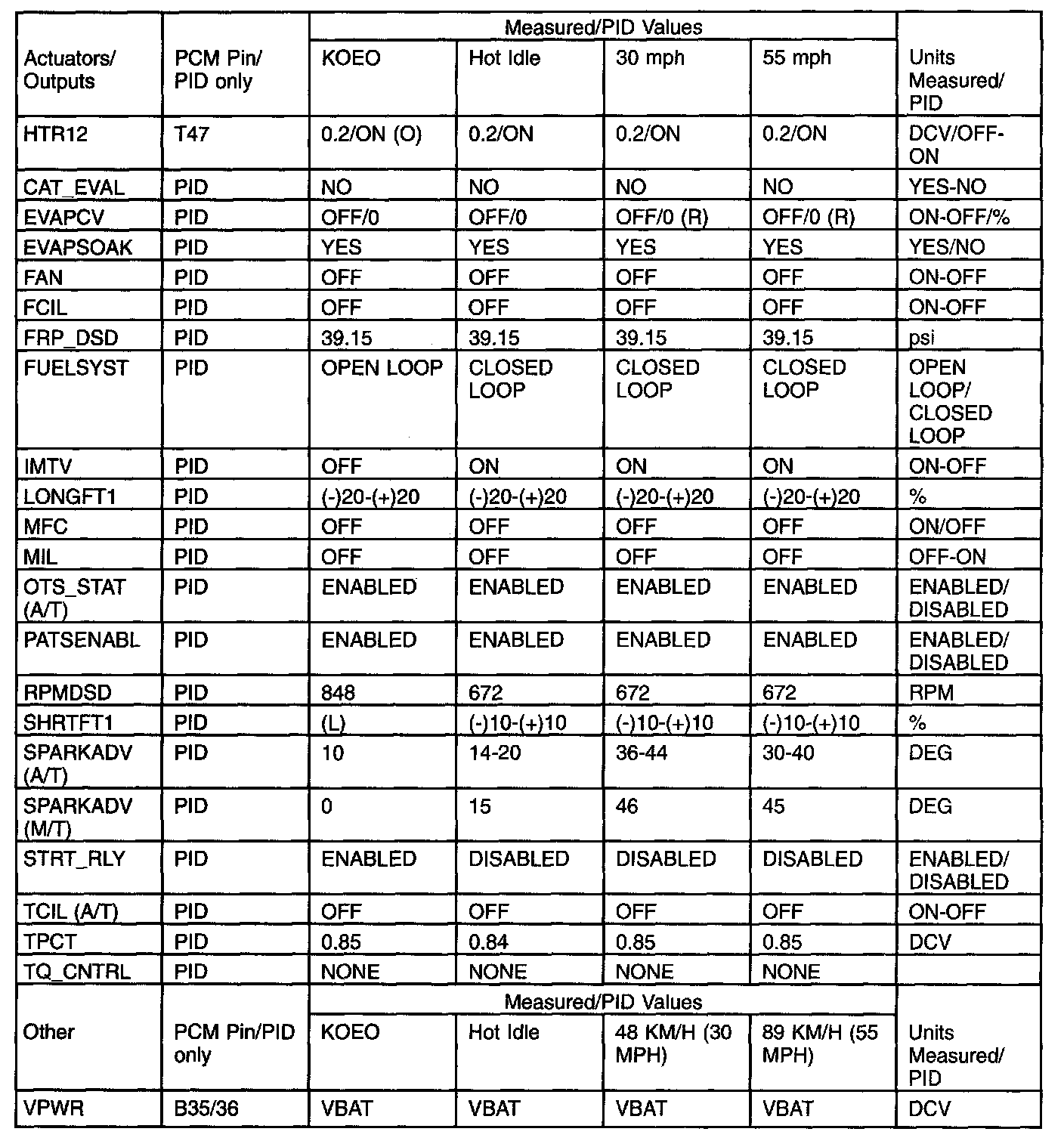

PID/Data Monitor Reference Value (2.3L) (Part 2):

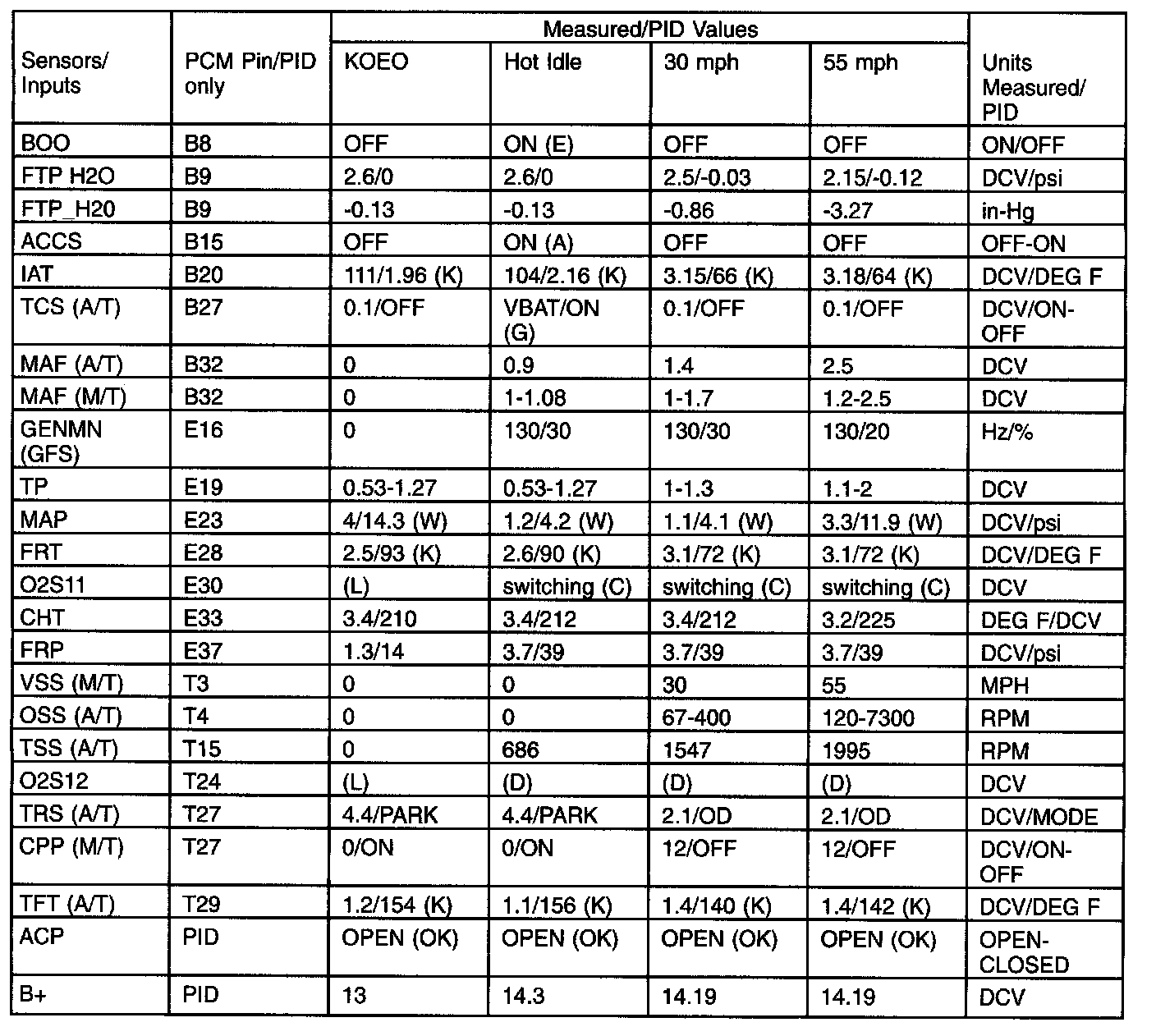

Typical Diagnostic Reference Values (2.3L) (Part 1):



Typical Diagnostic Reference Values (2.3L) (Part 2):
