PID/Data Monitor and Record Procedure

PID/DATA Monitor and Record Procedure

1. Carry out the necessary vehicle preparation and visual inspection. Hook up the IDS or equivalent tester to the vehicle.

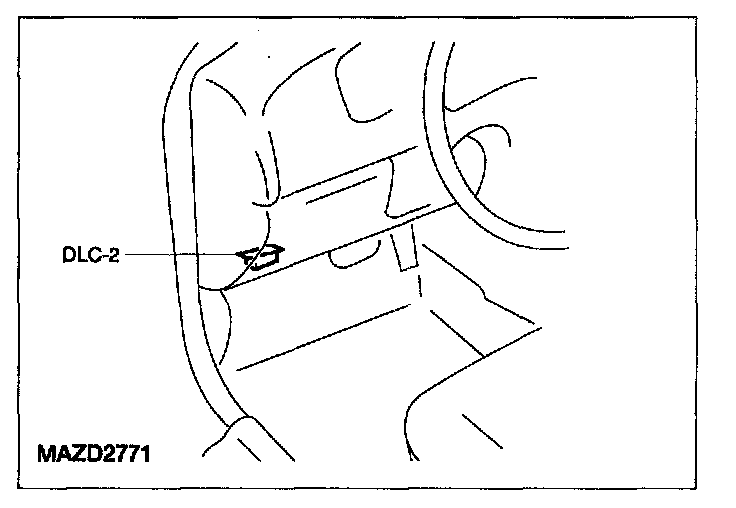

2. Connect the IDS or equivalent tester to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Access and monitor PIDs by IDS or equivalent tester.
