Throttle Position Sensor: Service and Repair

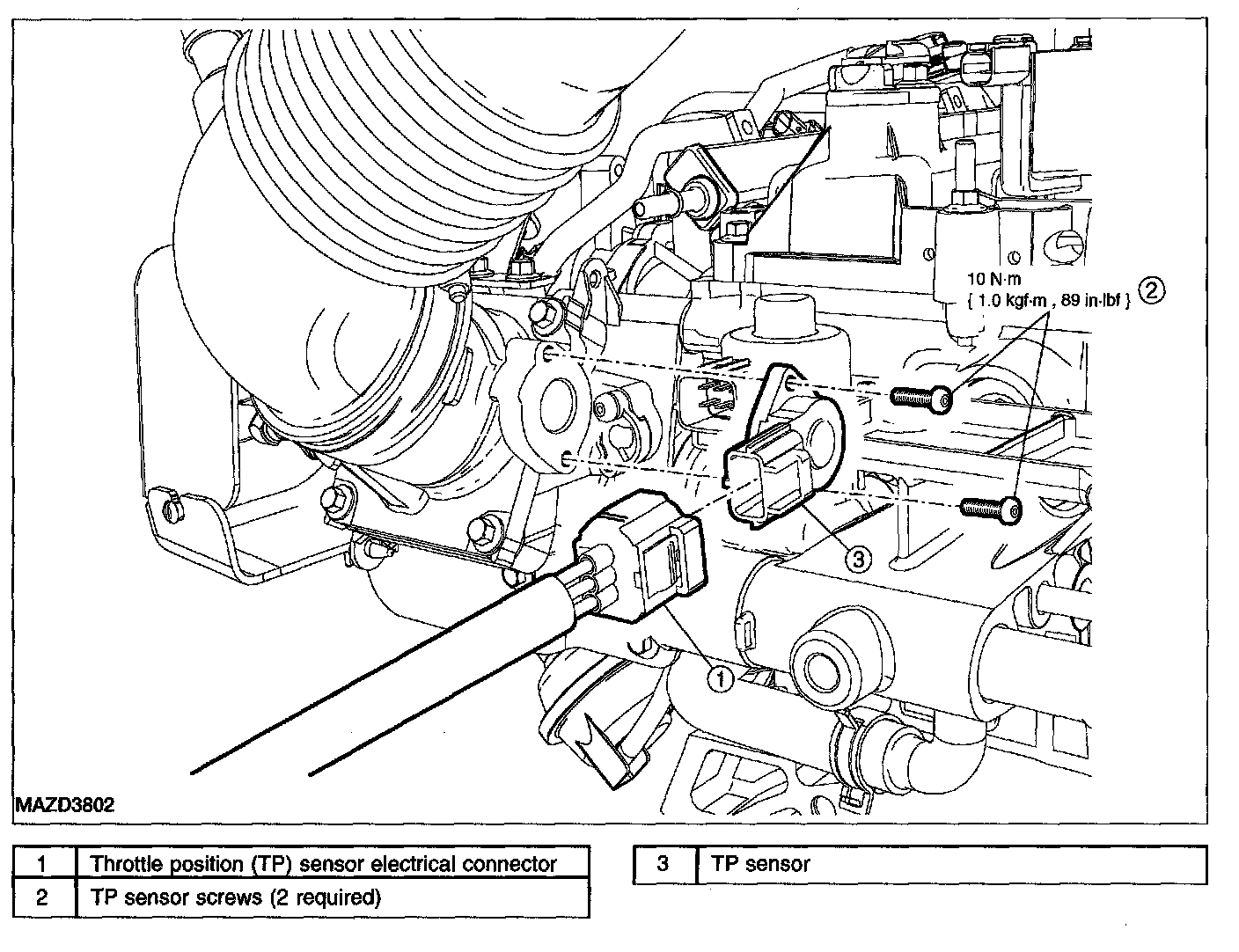

THROTTLE POSITION (TP) SENSOR - 2.3L (4V) REMOVAL/INSTALLATION






1. Disconnect the throttle position (TP) sensor electrical connector.
2. Remove the 2 screws and the TP sensor.
- To install, tighten to 10 N.m {1.0 kgf.m, 89 in.lbf}.

3. To install, reverse the removal procedure.
