Exploded Views

ENGINE IGNITION - EXPLODED VIEW

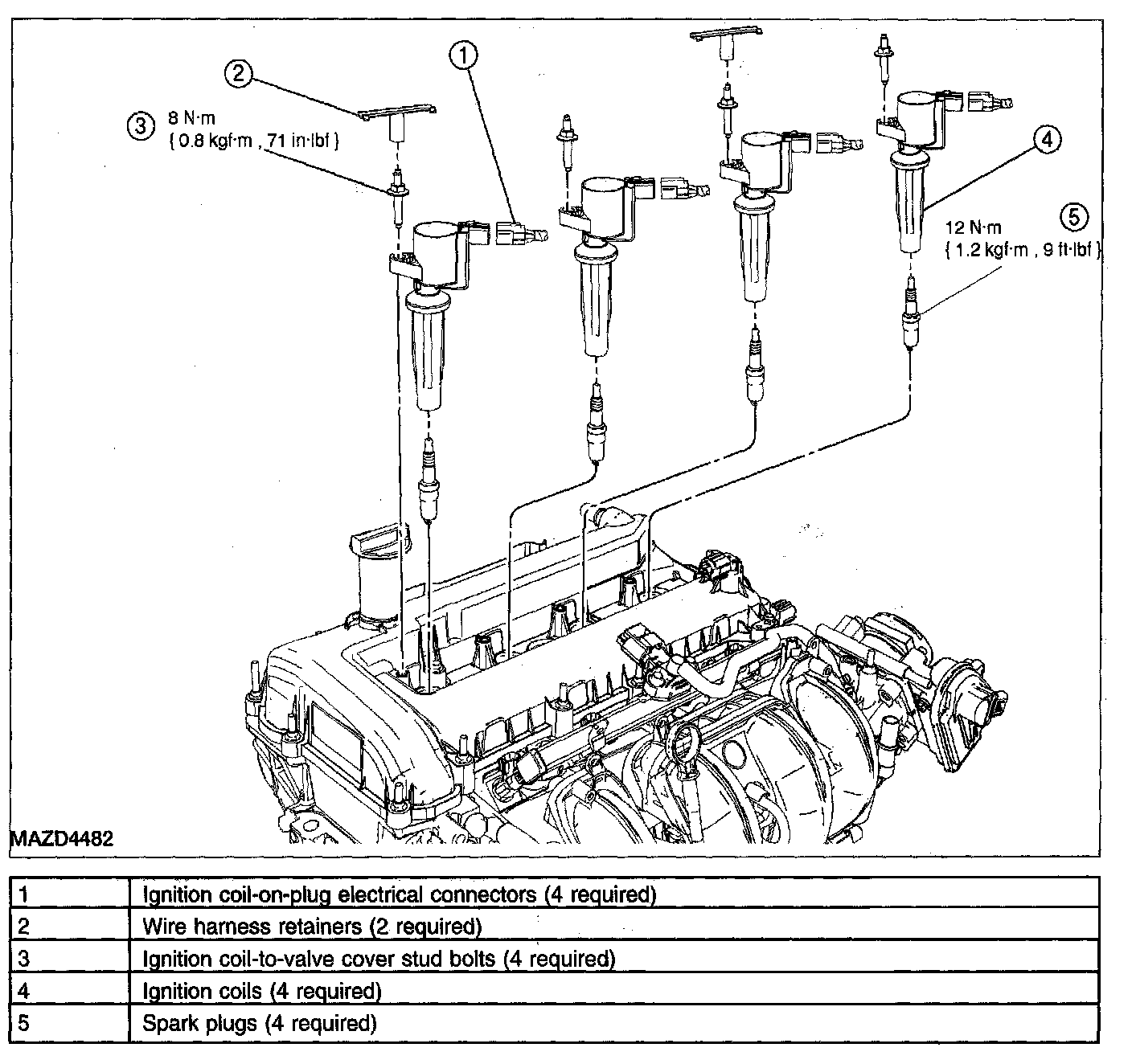

Engine Ignition-Exploded View:

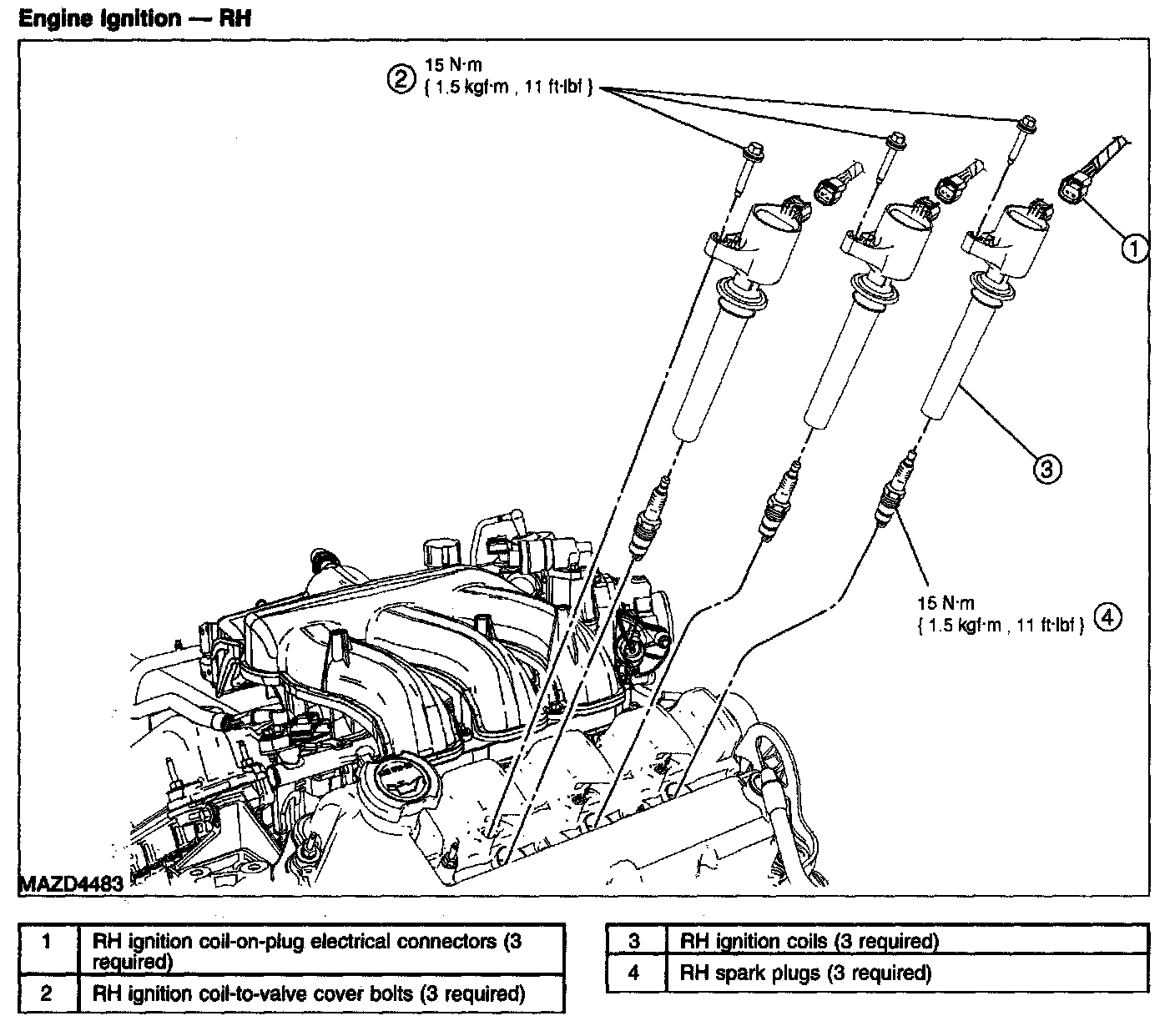

Engine Ignition-RH:

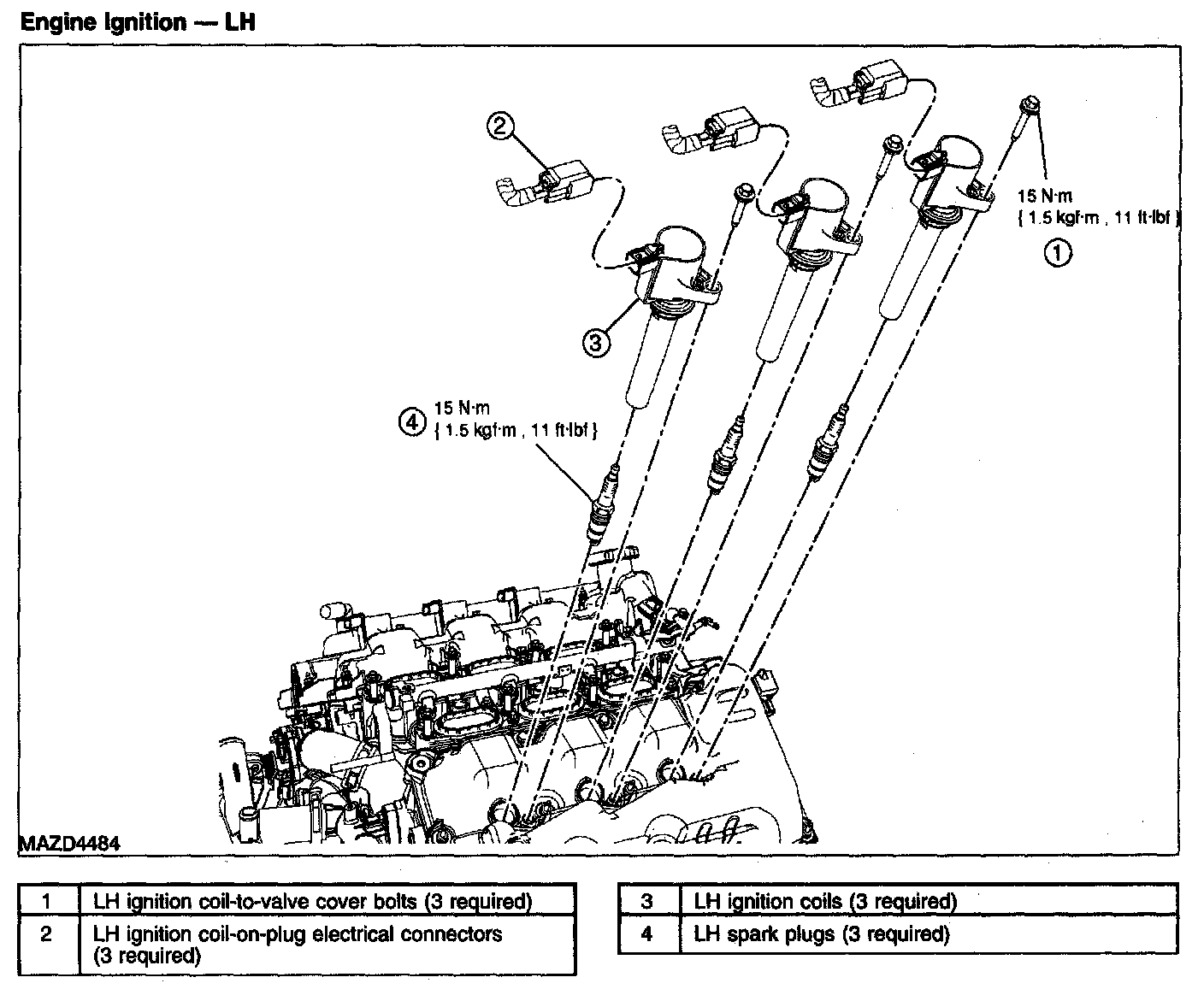

Engine Ignition-LH:






1. For additional information, see the procedures.
