System Specifications

General Specifications (Part 1):

General Specifications (Part 2):

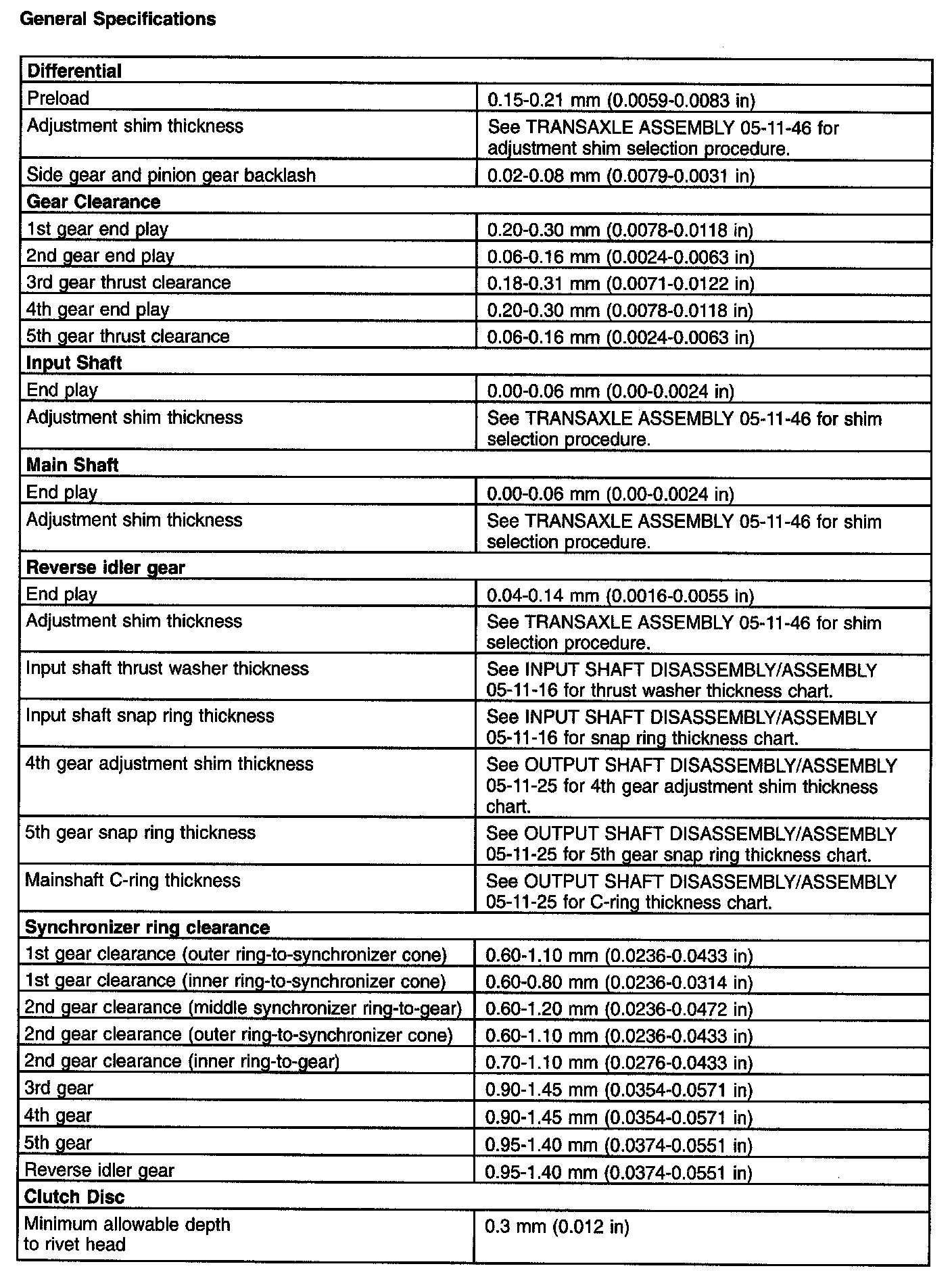

General Specifications

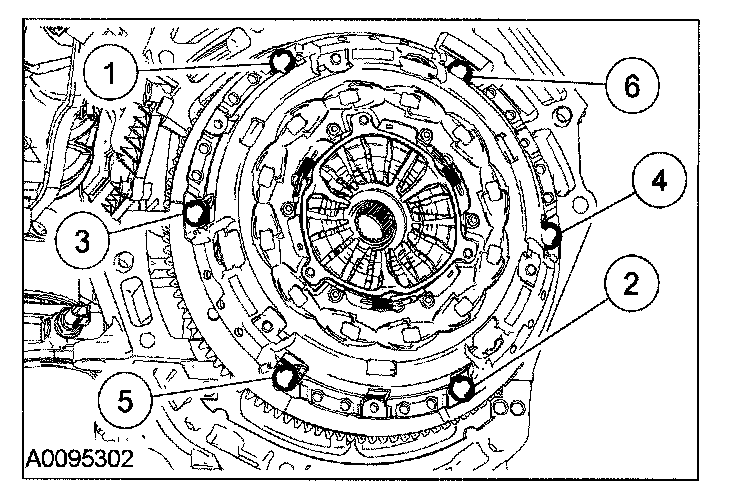

Clutch pressure plate to flywheel bolts
In the sequence shown, tighten to 29 N-m (2.9 kfg-m, 21 ft-lbf)
