Pinpoint Test 5: Radio Interference

Pinpoint Test 5: Radio Interference

Normal Operation
The generator radio suppression equipment reduces interference transmitted through the speakers by the vehicle electrical system.

Possible Causes
- Generator
- Circuitry
- In-vehicle entertainment system

Diagnostic Procedure

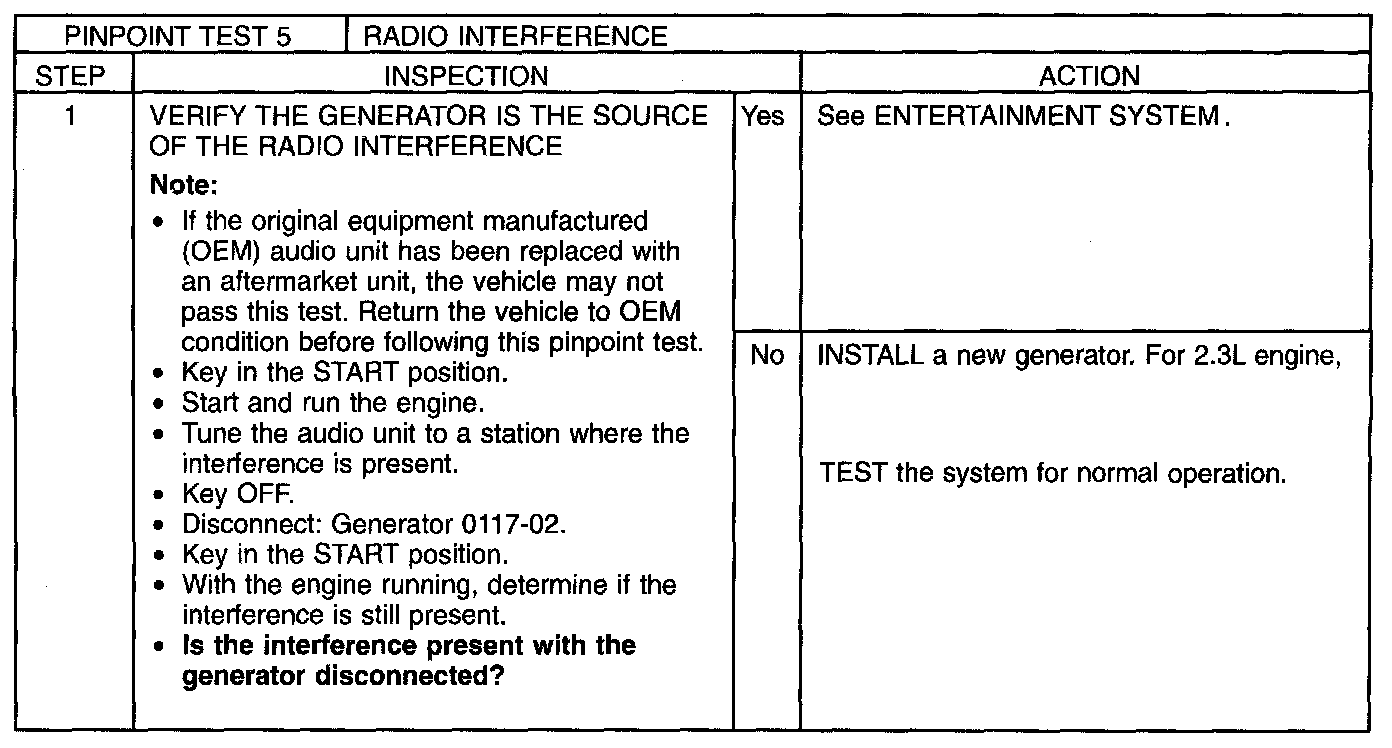

Step 1:
