Light Switch / Front Fog Light Switch / Turn Switch

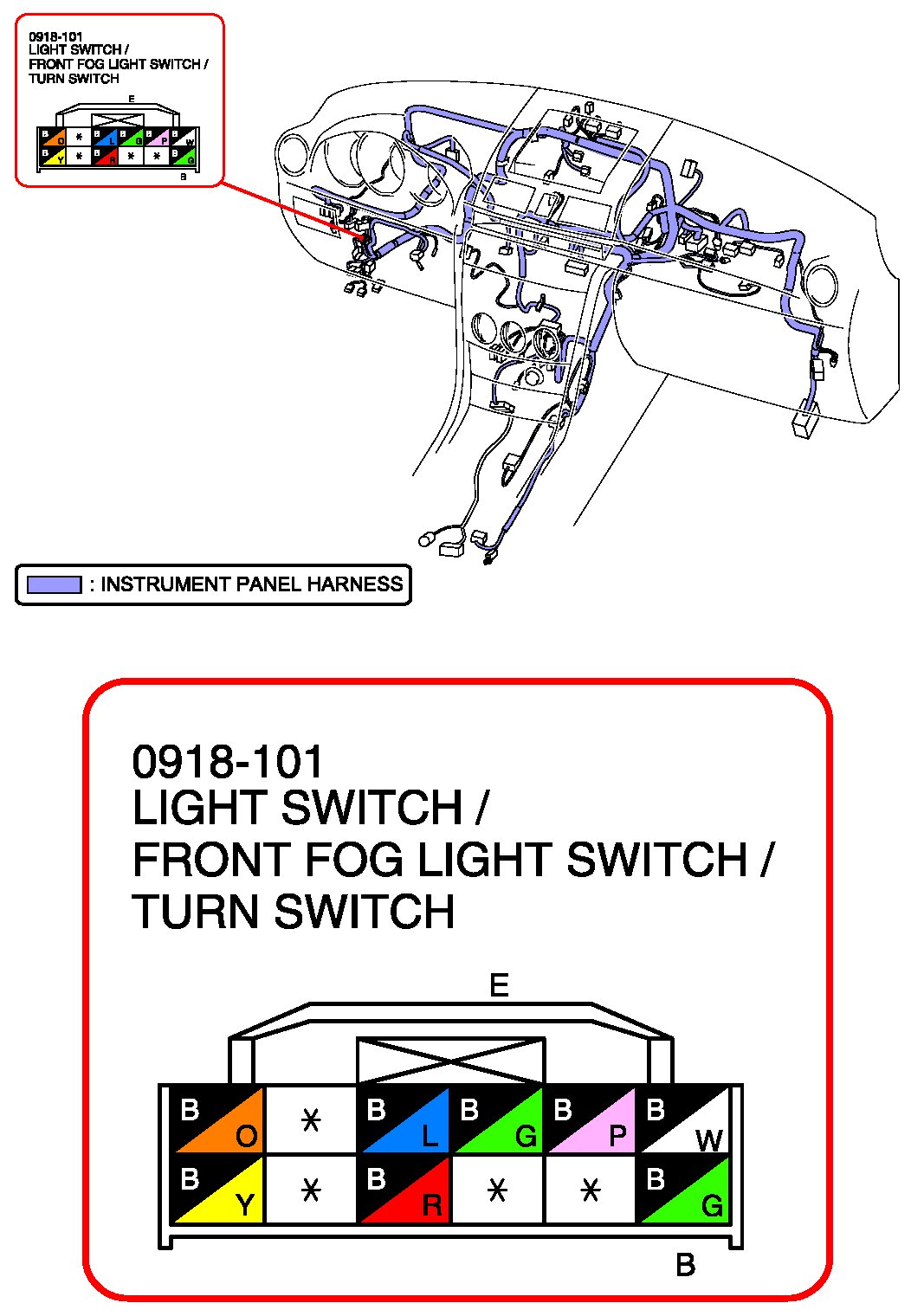

Light Switch/Front Fog Light Switch/Turn Switch:
