Rear Wheel Alignment

REAR WHEEL ALIGNMENT

Rear wheel alignment [LF and L3] (Unloaded)*1





Rear wheel alignment [L3 WITH TC] (Unloaded)*1





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30′.

NOTE:

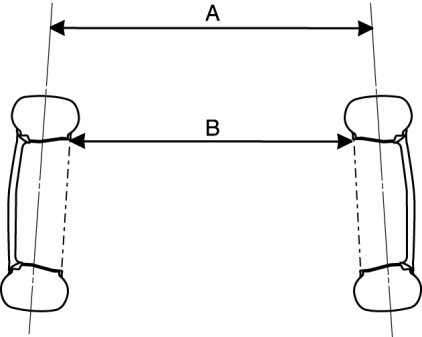

Total toe-in measuring position
- Tire: A indicated in the figure (between the center of the tires)





- Rim inner: B indicated in the figure (between the inner side of the rims)

Total Toe-in Adjustment

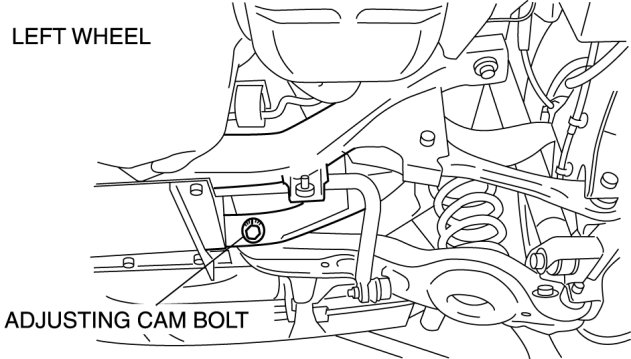

1. Loosen the installation nut of the adjusting cam bolt.

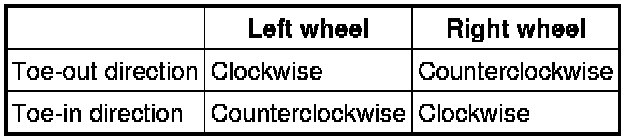

2. Rotate the adjusting cam bolt in either direction to adjust the camber.










3. Tighten the nut.

Tightening torque
- 80.0-100.0 Nm {8.16-10.19 kgf-m, 59.01-73.75 ft-lbf}
