Bolt Re-Usability

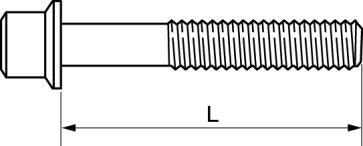

Measure the length of each cylinder head bolt. Replace any that exceeds maximum length.







Cylinder Head Bolt Length L 145.2-145.8 mm {5.717-5.740 in}
Cylinder Head Bolt Maximum 146.5 mm {5.767 in}
