Keyless Entry System Preliminary Inspection [Keyless Entry System]
KEYLESS ENTRY SYSTEM PRELIMINARY INSPECTION [KEYLESS ENTRY SYSTEM]
-
Perform the following preliminary inspection before troubleshooting.

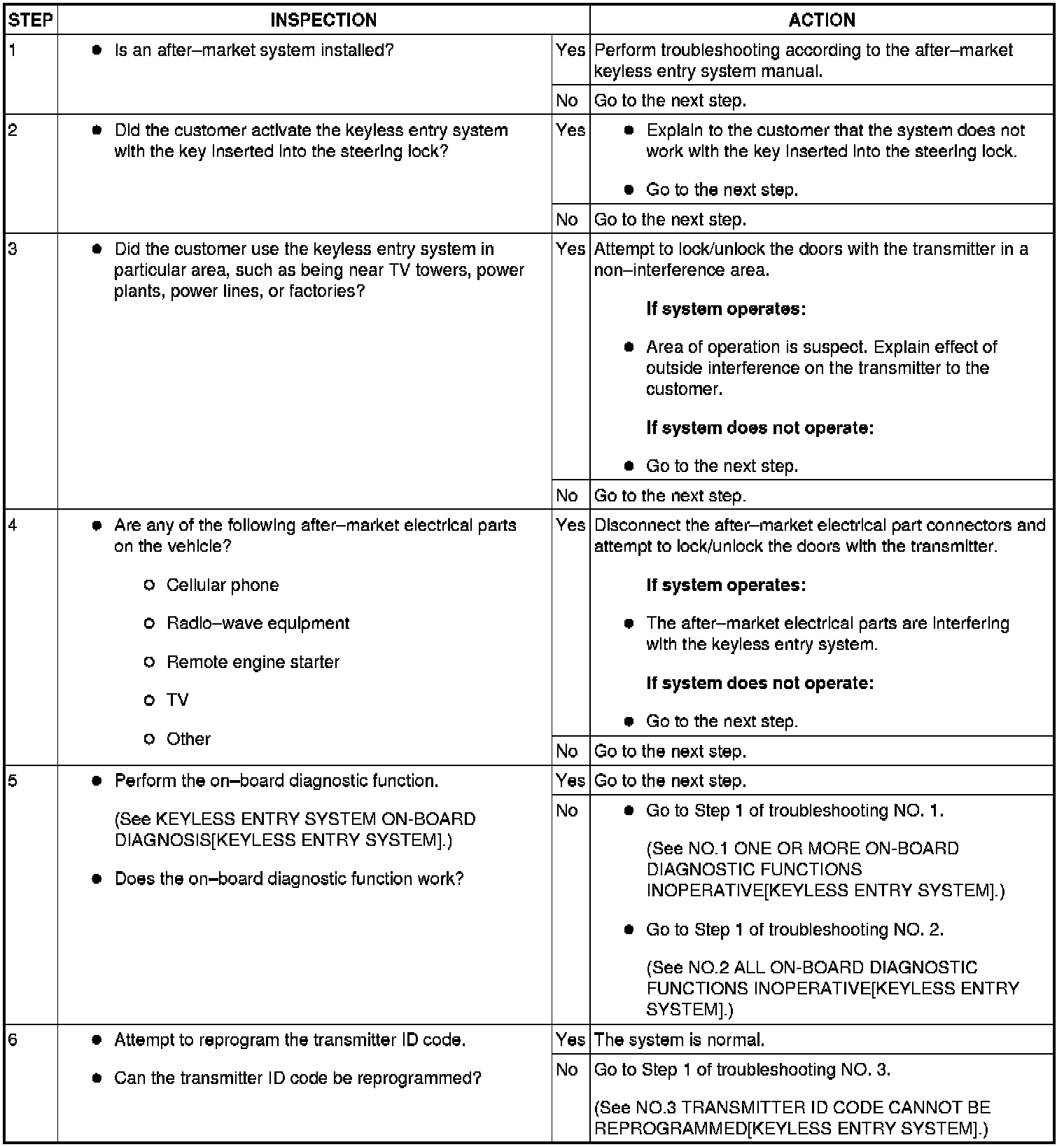

Step 1-Step 6:
