Fuel Injector No. 1
>>
Except For California Emissions Applicable Model
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Except For California Emissions Applicable Model

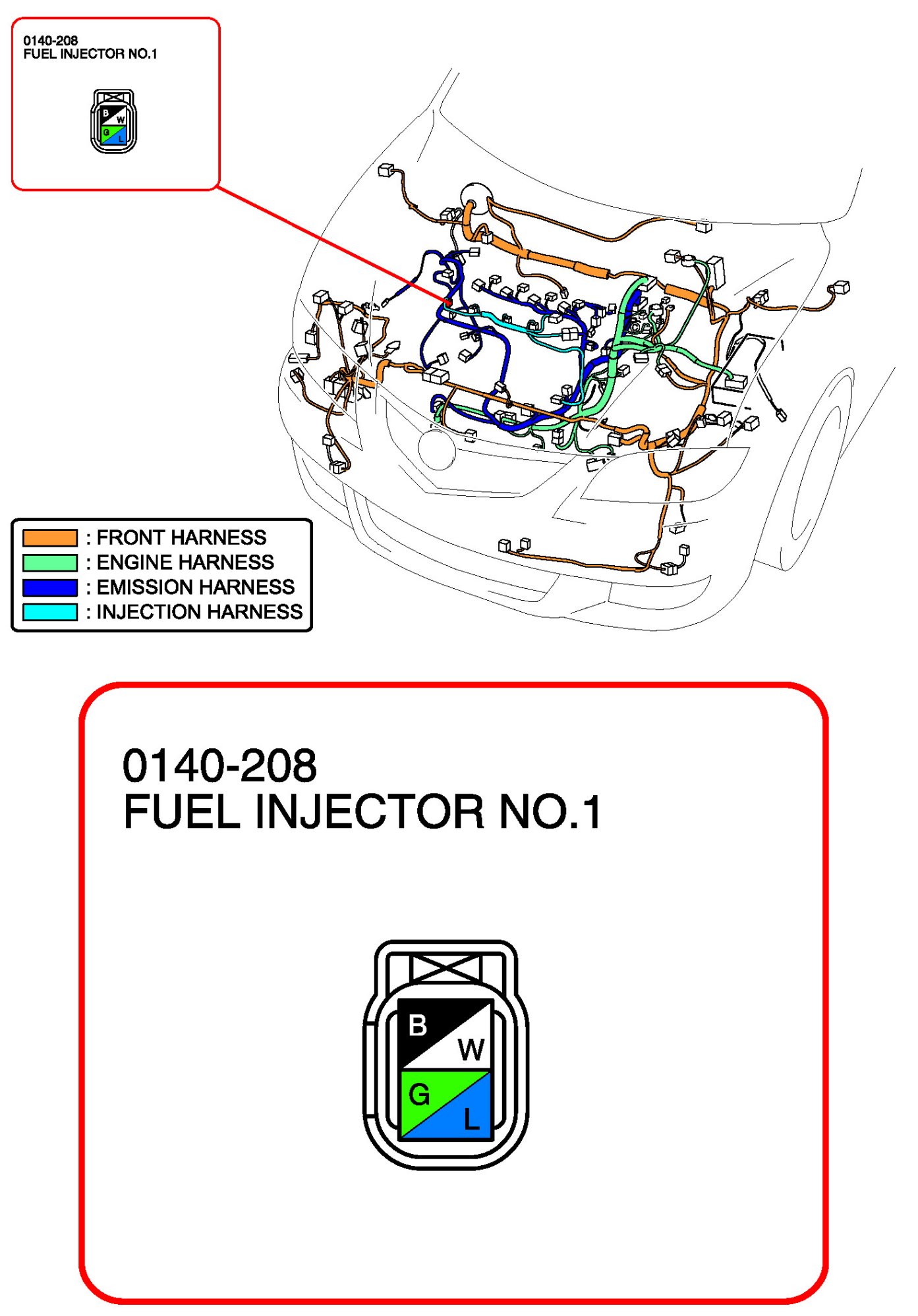

Fuel Injector No.1:
